Product Details:
|
| After-sales Service Provided: | Free Spare Parts | Machinery Test Report: | Provided |
|---|---|---|---|
| Capacity: | 1000~7500L | Weight: | 4200 |
| Effective Volume: | 1000L/2000L/3000l/5000L/7500L | Coating: | Spraying Painting Or Stainless Steel Polish |
| After Warranty Service: | Online Support | Max Working Pressure(MPa): | 3.4 MPa |
| Highlight: | 1000L Microbulk Tanks,7500L Microbulk Tanks,0.8Mpa micro bulk tank |
||

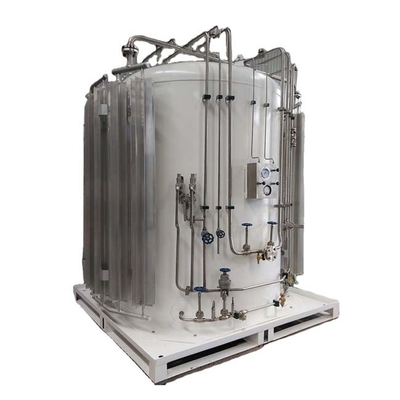

All-In-One Easy Operation Cryogenic Micro Bulk Tank
Description
Micro bulk cryogenic tank is a pressure vessel used to fill and store hazardous chemicals. The micro tank adopts a dual structure of inner and outer container, the inner container is made of S30408 stainless steel, and is suspended in a Q345R outer container with a supporting device. The space between the inner and outer containers is wrapped by high vacuum insulated aluminum foil fiberglass material. When the micro-tank is connected with the evaporator, it is suitable for conveying the evaporated gas, and can be used in different fields.
Specification
| Working pressure | 0.8Mpa-3.4Mpa |
| Volume | 450L-4993L |
| Medium | LOX/LIN/LAr/LCO2 |
| Material | Stainless steel and carbon steel |
| Diameter | φ758mm-1816mm |
| Height | 1706mm-3265mm |
| Empty weight | 354kg-4275kg |
| Design standard | GB/ASME |
| Insulation type | High vacuum multi-layers Insulation |
![]()
FAQ
Q1.Are you manufacturer or trading company?
We are professional manufacturer in cryogenic equipment filed.
Q2.What's your advantage?
We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.
Q3.Have your engineers participated in any foreign projects?
Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation.
Q4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
![]()
