Product Details:
|
| Certification: | ASME | Product Name: | Micro Bulk Tank |
|---|---|---|---|
| Material: | Stainless Steel/ Carbon Steel | Working Pressure: | Customizable |
| Insulation: | Vacuum And Powder | Weight: | 1-100t |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Medium: | LOX, LIN, LAr, LCO2, LNG,LC2H4 |
| High Light: | 1m3 Microbulk Tank,Liquid O2 Microbulk Tank,Stainless steel microbulk gas |
||

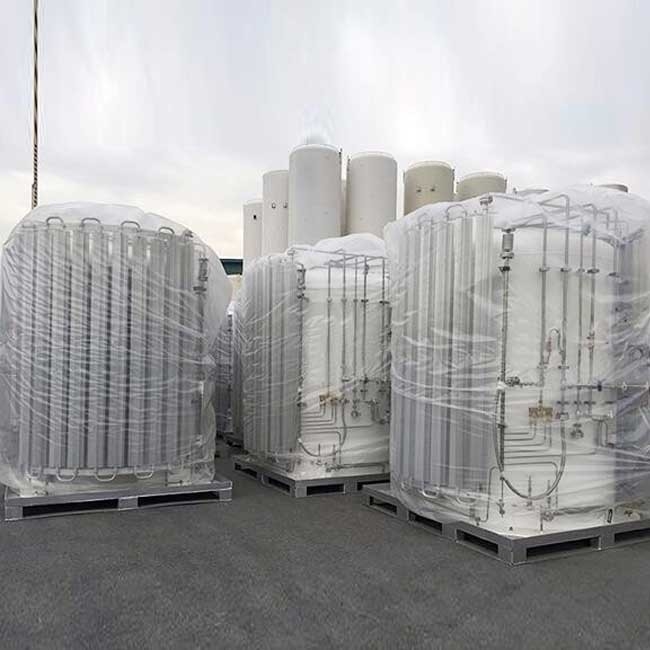

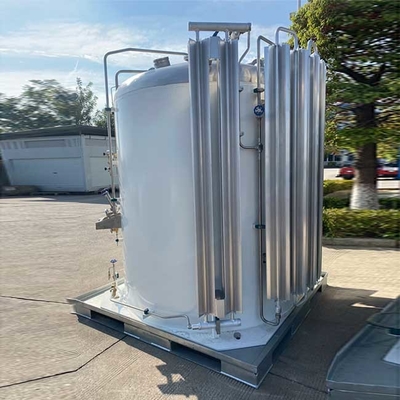

Fast Delivery 1-5m3 Cryogenic Liquid O2 Micro Bulk Tank
Description
Micro bulk cryogenic storage tanks can supply high-purity liquefied gas and other media directly to small cryogenic storage tanks installed on site through small tankers. With an on-site gas mixer, the final supply form can be pure gas, cryogenic liquid or gas-liquid mixture. It can enjoy continuous and uninterrupted gas supply, which makes up for the shortcomings of steel cylinders and dewar bottles that need to be loaded, unloaded, transported and stored, greatly improving production efficiency, eliminating the chance of contact with high pressure, and improving production safety.
Parameter
| Micro cryogenic liquid tank | ||||||
| NO. | Model |
Working pressure (Mpa) |
Nominal volume (L) |
Size(mm) | Medium | Remarks |
| 1 | 1-450 |
0.8MPa ~ 3.5MPa, or as requrested. |
450 | 1180*1160*1778 |
O2/N2/Ar/CO2
|
Carbon steel shell / stainless steel shell |
| 2 | 1-850 | 850 | 1180*1180*1830 | |||
| 3 | 1-1000 | 1000 | 1500*1450*2600 | |||
| 4 | 1-2000 | 2000 | 1700*1650*3000 | |||
| 5 | 1-3000 | 3000 | 1900*1850*3100 | |||
| 6 | 1-4000 | 4000 | 2000*2300*2785 | |||
| 7 | 1-5000 | 4990 | 2000*2300*3350 | |||
| 8 | 1-7500 | 7500 | 2000*2300*5000 | |||
| 8 | 1-10000 | 10000 | 2000*2300*5700 | |||
Features
1. Portable cryogenic devices that can be used for liquid gas services such as LOX, LAR and LCO2
2. Using high-quality vacuum multi-layer insulation and well-designed structure, there is no loss of liquid.
3. The miniature bulk cryogenic tank is easy to install as a whole and can be placed anywhere on the job site.
4. The storage tank is easy to transport: it can be hooked or used a forklift on the movable base.
5. All data are displayed on the instrument and can be adjusted according to the actual situation of gas pressure adjustment, which is easy to operate.
6. Remote liquid level and pressure monitoring, which can send tank liquid data to mobile phones.
