Product Details:
|
| Max Working Pressure(MPa): | 2.88 MPa | Machinery Test Report: | Provided |
|---|---|---|---|
| Core Components: | Vacuun | Warranty: | 4 Years |
| Working Pressure: | 2.88Mpa | Color: | Silver |
| Keywords: | Dewar Container | After Warranty Service: | Video Technical Support, Online Support |
| Certification: | ISO9001 | ||
| High Light: | 180 liter Cryogenic Dewar Cylinder,Welded Cryogenic Dewar Cylinder,Insulated argon dewar bottle |
||
180L 195L Cryogenic Welded Insulated Container Liquid Oxygen Dewar Cylinder
Description
As a cryogenic adiabatic pressure vessel, the Dewar flask is mainly used to store and transport liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide and liquefied natural gas, and can automatically and continuously supply gas. The cylinder is designed as a double-layer (vacuum) structure, which is used for the storage of cryogenic liquids. The outer wall adopts multi-layer insulation, which has super thermal insulation performance. At the same time, the interlayer (space between two layers of containers) is pumped into high vacuum. , together constitute a good thermal insulation system.
If more gas flow is required, the problem should be solved by connecting several cylinders in parallel to a main line or external carburetor to avoid starvation.
Parameter
| product name | 210l 20bar Cryogenic Dewar Liquid Oxygen Gas Dewar Cylinder Welded Insulated Cylinders For Hospital~ |
| Material | steel |
| Dimension | 516×907mm/505x1076mm/505x1391mm/505x1557mm/505x1672mm/505x1766mm/505x1916mm |
| Weight(Empty cylinder) kg | 76kg/83kg/105kg/116kg /124kg/130kg/138kg |
| Working pressure MPa | 1.38 MPa |
| Volume L | 80L/100L/150L/175L/195L /210L/232L |
| effective volume L | 72L/90L/135L/157.5L/175.5L/189L/208.8L |
| Safety valve open pressure Mpa | 1.59 Mpa |
| MOQ | 1 set |

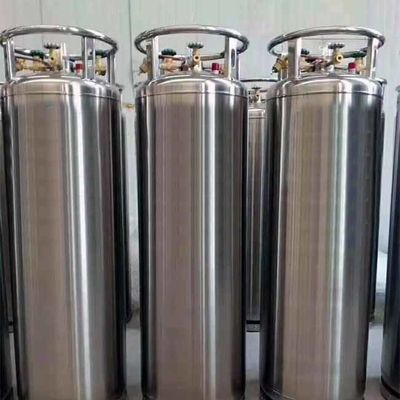

Product details display
Cryogenic bottles have an inner container and an outer container with an insulated vacuum space between them. Any abuse (dents, drops, overturns, etc.) will affect the integrity of the container insulation system.
Allows you to properly handle these loads with a trolley or crane. Do not attempt to move these cylinders in any other way.
FAQ
Q: What products you can provide ?
A: We specialize in producing LPG cylinder, LNG cylinder, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), etc. Any interests you can feel to contact us for details. Thanks.
Q: What can you gurantee?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first. Generally speaking, our cryogenic storage tanks can work normally for 15-20 years.
