Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station

Certification
China Tianjin Mikim Technique Co., Ltd. certification
I'm Online Chat Now

Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station

Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station
Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station

Large Image :  Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station

Product Details:
Place of Origin: henan
Brand Name: MKIMM
Certification: ISO
Model Number: MKIMM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: bargain
Packaging Details: wooden box
Delivery Time: 15days
Payment Terms: T/T,L/C,Paypal,Alipay,West Union and so on
Supply Ability: 25 every month

Skid Mounted LPG Autogas Stations 2.5mpa , 50000 Liter LPG Skid Filling Station

Description
Condition: New Machinery Test Report: Provided
Volume (m³): 10 Max Working Pressure(MPa): 1.77 MPa
Warranty: 1 Year Volume Available: 10M3
Pipe Design Pressure: 2.55Mpa Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product Design Pressure(MPa): 2.5
High Light:

Skid Mounted LPG Autogas Stations

,

2.5Mpa LPG Autogas Stations

,

50000 liter LPG skid filling station

LPG Gas Mobile Skid-Mounted Filling Station For Refueling Vehicles



Description

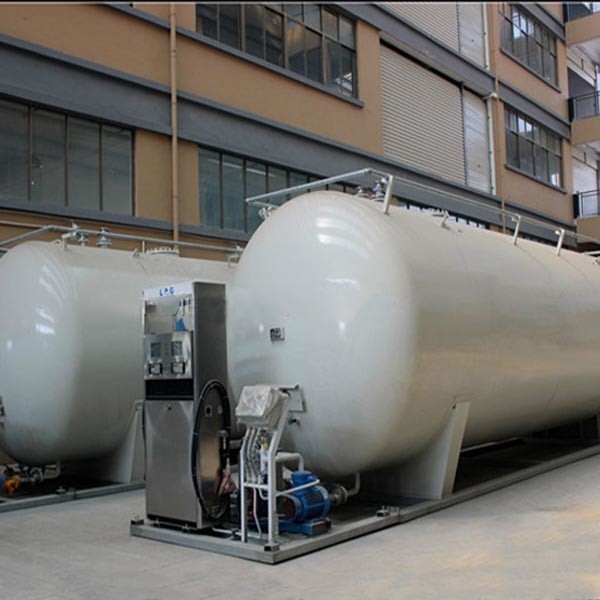

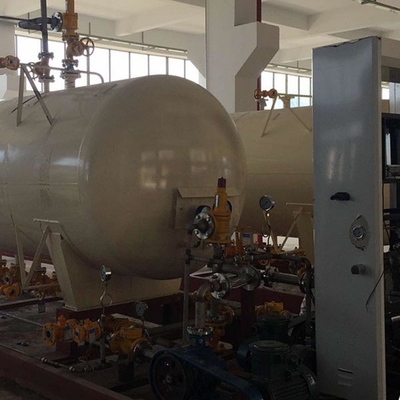

The LPG filling station is composed of a storage tank and two pumps, one of which constitutes an unloading system and the other constitutes a filling system. These two systems can be temporarily used in the event of failure to maintain the normal operation of the filling station. run. The structure of LPG filling station is divided into four parts: tank body, skid body, LPG distributor and electric control box.



Parameter

Product Name LPG Mobile gas filling station
Material Alloy steel Q345R
Color white or customized
Medium Lpg propane butane
Design Pressure 1.77Mpa
Working Presure 1.6Mpa
The effective volume 5000-50000 liter/3MT-30MT
Technics: submerged-arc welding
Net Weight 3623-92143Kg





Packaging Details:

Package:

1. Accessories parts are packed by high quality plywood crate, to reduce distortion in conveying;

2. Tanks are packed by plastic woven cloth. It can reduce abrasion when transport.

Delivery:

1. If the size of whole tank are suitable for container ship, usually by container;

2. If the size is too big, usually by bulk ship;

3. Transport ways are based on reducing cost for you and keep the tank performance!.

lpg filling station



FAQ

Q:Is your product customized?

A:Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the volume, nozzle position and other specials, we will give you a very quick quote!



Q:What’s the information should I provide when inquiry?

A:Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the volume, nozzle position or other specials you give us will be more appreciated.



Q:How many operating methods for my selection?

A:Thanks for your question. You can make adjustment of tank’s placement according to the site condition and nozzle position.

lpg filling station
