Product Details:
|
| Capacity:: | 5m3-120m3 | Volume (m³): | 5-120m3 |
|---|---|---|---|
| Outer Material: | Q345R | Max Working Pressure(MPa): | 1.77 MPa |
| Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops | After-sales Service: | Free Spare Parts, Field Installation, |
| Material:: | Q345R/Q370R Carbon Steel | Standard: | ISO11119 |
| High Light: | Horizontal LPG Above Ground Tanks,25m3 LPG Above Ground Tanks,Q345R LPG tank cabinet |
||

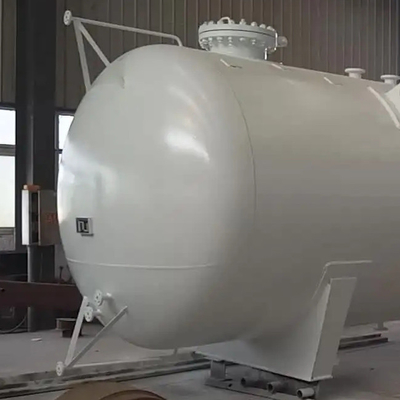

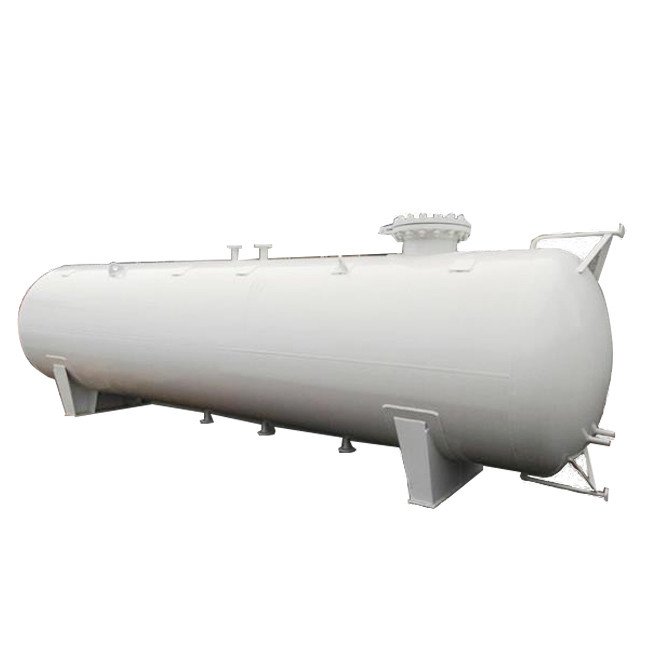

Horizontal Above Ground 25m3 LPG Storage Tank
Description
The Horizontal Above Ground 25m3 LPG Storage Tank is made of special material Q345R, which is a pressure vessel. Mainly used to store liquid petroleum gas and propane and other media. The manufacturing process of LPG storage tanks is complex and rigorous. All LPG storage tanks must undergo non-destructive testing, air tightness testing, hydrostatic testing and other inspections.
Parameter
| Item | Effective volume(m3) | Working pressure(mpa) | Working medium | Size(mm) | Weight(kg) |
| LPG5/1.77 | 5 | 1.77 | Lpg | 1620×2400X5300 | ~2800 |
| LPG10/1.77 | 10 | 1824×2600X6300 | ~4250 | ||
| LPG15/1.77 | 15 | 2224×3000X7100 | ~5850 | ||
| LPG20/1.77 | 20 | 2224×3000X8400 | ~6800 | ||
| LPG30/1.77 | 30 | 2628×3400X9000 | ~9770 | ||
| LPG50/1.77 | 50 | 2628X3400×10000 | ~10800 | ||
| LPG100/1.77 | 100 | 3132x3722x13866 | ~20410 |
Characteristics
1. Media: not only non-flammable, non-toxic and non-corrosive media, but also flammable and corrosive media and highly flammable and strongly corrosive media.
2. Applicable industries: petrochemical industry, coal chemical industry, precision chemical industry, nuclear power, metallurgy, pharmaceutical, machinery, food, pesticides, rubber, aerospace, shipbuilding, dyes, new power equipment, etc.
Our advantage is reliable quality, warm service and favorable price. Leading manufacturer of tanks/containers
FAQ
Q: Are you a manufacturer or trading company?
A: We are direct manufacturer;
Q: How can you ensure the quality of the goods?
A: We are manufactures with 11 years' experience, every product will be inspected by profesional technician before delivery from
our factory.
Q:What payment do you accept?
A:T/T, L/C,Trade assurance;
Q:What is the MOQ of your products?
A: 1 set;
