Product Details:
|
| Usage: | Oxygen | Voltage: | 110/220V |
|---|---|---|---|
| Dimension(L*W*H):: | Based On Equipment | Key Selling Points:: | Long Service Life |
| Machinery Test Report:: | Provided | Material:: | Zeolite Molecular Sieve |
| Oxygen Purity:: | 90%±3% | Inlet Pressure:: | 0.2Mpa |
| High Light: | 87% PSA Oxygen Machine,93% PSA Oxygen Machine,0.2Mpa Ozone Generator |
||

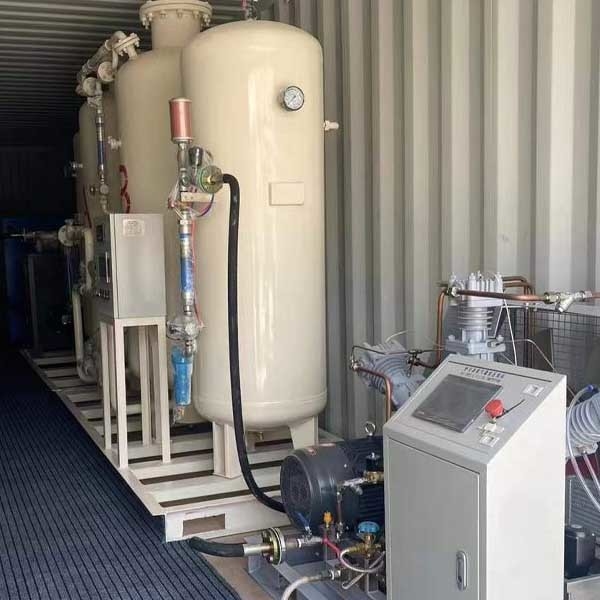

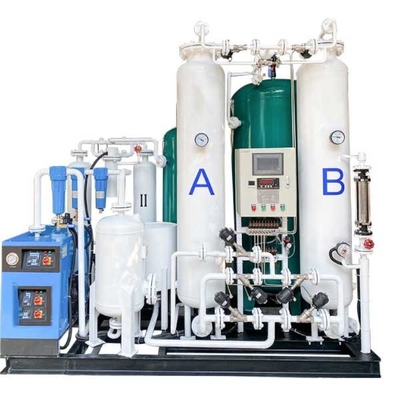

High Oxygen Purity PSA Oxygen Generator Parts For Industrial Ozone Generator
Description
PSA oxygen generator uses PSA molecular sieve to selectively adsorb impurities such as nitrogen, carbon dioxide and water in the air under the conditions of normal temperature and pressure, and then obtain oxygen with high purity (93%±2). Since the pressure swing adsorption oxygen production equipment has been industrialized, the technology has developed rapidly, because its price performance is more competitive in the low and medium production range and the occasions where the purity requirements are not too high,
Parameter
| Model | 20 |
| Working Voltage (V/Hz) | 220v 50Hz |
| Rated Power (W) | 1700 |
| Outlet nominal pressure | 0.006 MPa |
| The oxygen Purity | ≧ 92% |
| Max flow | 20 L/min |
| Net weight (Kg) | 180 |
| Noise dB (A) | 55 |
| Size(cm) | L55×W72×H110 |
Features:
1. Fast and timely on-site oxygen production;
2. Higher-efficiency gas separation components and unique pressure swing adsorption energy-saving technology make the unit compressed air consumption rate lower and reduce energy consumption;
3. CAN-BUS multi-function monitoring system, LCD full-screen online display of purity, flow rate and other working parameters;
4. Fully integrated skid-mounted chassis design, the oxygen production system has been pre-commissioned before leaving the factory;
5. High reliability standardized oxygen generator based on years of industry application verification.
| Model Specifications | 5 | 10 | 30 | 50 | 100 | 200 | 300 | 400 | MS -QC500 |
| Gas processing(Nm3/h) | 5 | 10 | 30 | 50 | 1 00 | 200 | 300 | 400 | 500 |
| Oxygen (%) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Poor nitrogen feed gasDew point(°C) | -30 | -30 | -30 | -30 | -30 | -30 | -30 | -30 | -30 |
| Oxygen(ppm) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Afer purication of high purity Dew point(°C) | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 |
| Operating pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| The reactor temperature degree(°C) | 300~350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
| temperature adsorption tower(°C) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Power consumption(kw) | 4.8 | 6.8 | 10.5 | 15 | 30 | 50 | 60 | 80 | 1 00 |
| Deoxidizer capacity(kg) | 10 | 30 | 80 | 100 | 200 | 260 | 380 | 480 | 520 |
| Dimensions(m) (L xWxH) | 0.8x 0.5xl.5 | 1.2x 0.8x2.4 | 1.5x 0.8x3.0 | 2.5x 1.5x3.0 | 3.0x 2.0x4.0 | 3.0x 2. 5x4.0 | 3.2x 2.5x4.5 | 3.4x 2. 5x4.6 | 3.6x 2. 5x4.6 |
