Product Details:
|
| Marketing Type:: | New Product 2020 | Warranty: | More Than 5 Years |
|---|---|---|---|
| Video Outgoing-inspection:: | Provided | Core Components:: | Smart Gas Switching Valve |
| Product Name:: | Oxigeno Planta Psa Generador De Oxigeno | Name: | Medical Oxygen Gas Plant |
| Technology: | Pressure Swing Adsorbtion (PSA) | Capacity: | 1-50Nm3/h Psa Oxygen Generator |
| High Light: | 1Nm3/h Industrial PSA Oxygen Generator,50Nm3/h Industrial PSA Oxygen Generator,80% oxygen PSA system |
||

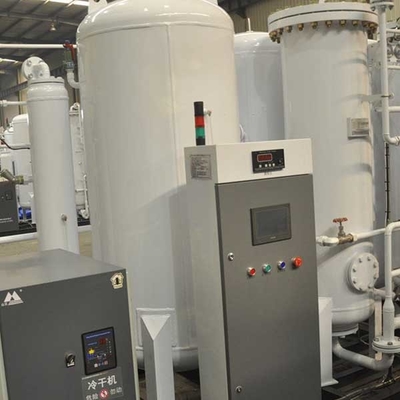

High Efficiency Industrial Medical PSA Oxgen Generator
Description
The PSA oxygen generator can produce oxygen with a purity of 80%~95%. The power consumption of oxygen production is generally 0.32kWh/Nm3~0.37kWh/Nm3. The adsorption pressure is higher than atmospheric pressure, generally 30kPa~100kPa. The process is simple and works at room temperature. The oxygen generator has a high level of automation, and the brand of the oxygen generator can realize unmanned management, especially with good safety.
Parameter
| Purity: ≥ 93%, flow rate: 20m3 / h pressure: (150barAutomatic filling system) |
Model | QTY | |
| Air compression system | Screw air compressor | XT-50A | 1 |
| Primary air storage tank | C-0.6/8 | 1 | |
| Air purification system | Freeze dryer | SL-60AC | 1 |
| Four stage filter | XF9/7/5/3-32 | 1 | |
| Secondary air storage tank | G-0.6/8 | 1 | |
| Oxygen generation system | PSA oxygen generator | XTFY-20/93 | 1 |
| Oxygen tank | G-0.6/8 | 1 | |
| Filling System | Supercharger | WWZ-20/4-150 | 1 |
| Filling row | HL-5 | 1 | |
| Annex | Sterilization filter | MJ-1 | 1 |
Product Features.
1. Advanced principle: using zeolite molecular sieve, pressure swing adsorption technology to separate oxygen and nitrogen in the air, PSA oxygen generator, filtering out the harmful substances in the air, so as to obtain oxygen standard.High purity oxygen.
2. Low cost of oxygen production: air is used as raw material, without any additives, no residue and pollution discharge, and low power consumption.
3. Easy to use: when plugged in, the operation of oxygen production is simple, the oxygen concentration is stable, the oxygen flow is adjustable, and the oxygen can be continuously supplied for 24 hours.
4. The whole set of gas circuit is controlled by low-pressure system program, with stable performance and low noise.
