Product Details:
|
| Usage:: | Nitrogen | Voltage:: | 220V/380V |
|---|---|---|---|
| Warranty:: | 1 Year | N2 Capacity:: | 1~3000 Nm3/h |
| Dew Point:: | ≤-40℃ | Production Rate:: | 500sets/year |
| Power:: | 5-200KW | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| High Light: | 50nm3 PSA Nitrogen Generator,100nm3 PSA Nitrogen Generator,food packaging PSA system nitrogen production |
||

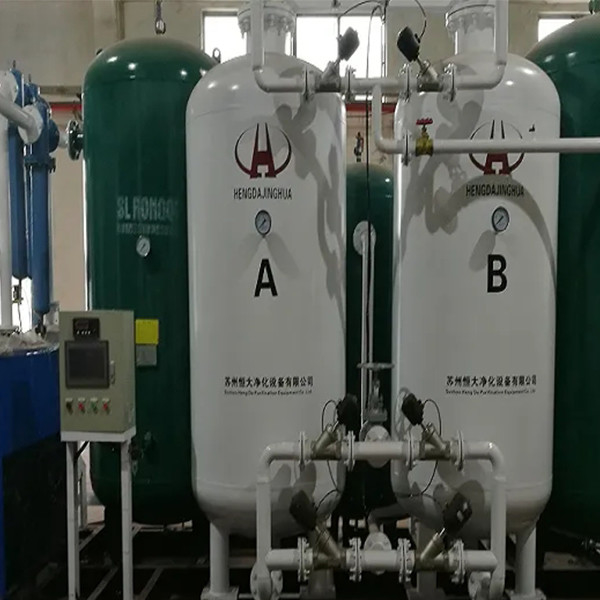

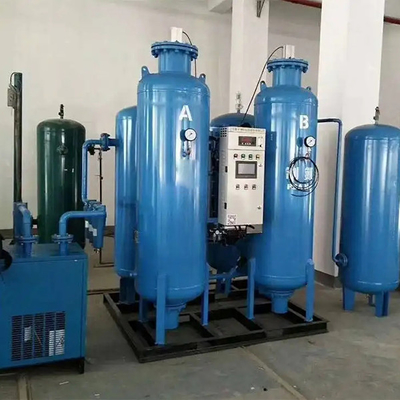

PSA Nitrogen Generator For Food Packaging
Description
PSA nitrogen generator is a high-tech product involving machinery, electricity and appearance, and the stability of the equipment is particularly important in long-term use. The valve must have the following functions: good raw material function and absolutely no air leakage.
Parameter
| Model | N2 Purity % | N2 Capacity Nm³/h | Air Consumption m³/min | Dimensions mm (L×W×H) |
| 97/40 | 99 | 40 | 1.8 | 1900×1400×1800 |
| 99.5 | 2 | 2000×1450×1900 | ||
| 99.9 | 2.8 | 2100×1500×2050 | ||
| 99.99 | 3.7 | 2200×1500×2350 | ||
| 99.999 | 6 | 2600×1800×2550 | ||
| 97/50 | 99 | 50 | 2.1 | 2000×1500×1900 |
| 99.5 | 2.5 | 2050×1450×1850 | ||
| 99.9 | 3.3 | 2100×1500×2250 | ||
| 99.99 | 4.7 | 2500×1700×2500 | ||
| 99.999 | 7.5 | 2700×1800×2600 | ||
| 97/80 | 99 | 80 | 3.7 | 2100×1500×2000 |
| 99.5 | 4 | 2100×1500×2150 | ||
| 99.9 | 5.5 | 2500×1700×2550 | ||
| 99.99 | 7.5 | 2700×1800×2600 | ||
| 99.999 | 12 | 3200×2200×2800 | ||
| 97/100 | 99 | 100 | 4.6 | 2100×1500×2150 |
| 99.5 | 5 | 2200×1500×2350 | ||
| 99.9 | 7 | 2650×1800×2700 | ||
| 99.99 | 9.3 | 2750×1850×2750 | ||
| 99.999 | 15 | 3350×2500×2800 |
PSA nitrogen generator process flow
The ambient air is compressed and purified (removing oil, water, dust, etc. in the compressed air) and then enters the adsorption tower equipped with carbon molecular sieve. A large amount of nitrogen is enriched in the gas phase. It enters the nitrogen buffer tank through the upper part of the adsorption tower, while the oxygen molecules remain in its molecular sieve. The entire adsorption process is carried out under pressure. When the adsorption pressure drops to normal pressure, the adsorbed oxygen molecules escape from the carbon molecular sieve, enter the muffler through the lower part of the tower and then discharge the atmosphere, and the molecular sieve is regenerated at the same time. Usually, the PSA nitrogen generator adopts double adsorption in parallel to alternately carry out adsorption nitrogen production, desorption regeneration, separation of oxygen and nitrogen, and continuous gas supply. The above process is automatically controlled by the computer control system.
