Product Details:
|
| Condition: | New | Usage: | Nitrogen |
|---|---|---|---|
| Warranty:: | 1 Year | Marketing Type:: | New Product 2022 |
| Video Outgoing-inspection:: | Provided | Key Selling Points:: | Famous Brand PLC |
| Nitrogen Purity:: | 99.5-99.9995% | Technology:: | Pressure Swing Adsorbtion (Psa) |
| High Light: | 95% PSA Nitrogen Generation System,0.4MPA PSA Nitrogen Generation System,220V N2 PSA system |
||

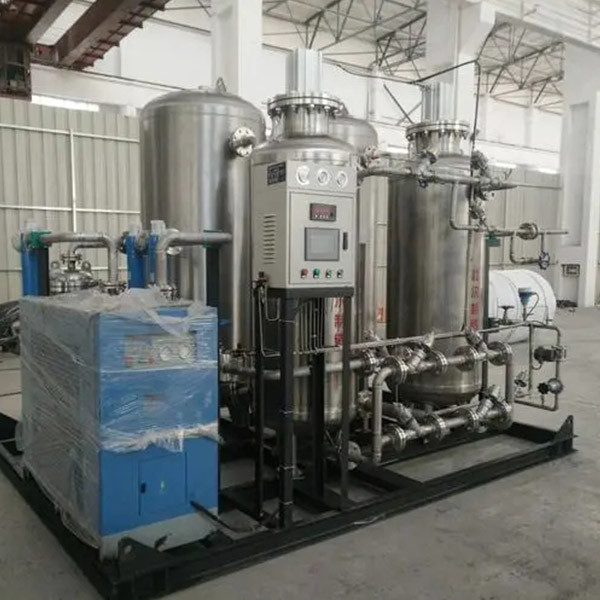

Energy-Saving High Purity Psa Nitrogen Generator With Ce And ISO Certification
Description
There are more and more applications of PSA nitrogen generators in various industries. However, people's understanding of nitrogen generators is still relatively small. The nitrogen generators have a nitrogen generator, and this component needs to be maintained and maintained frequently. In order to ensure the normal operation of the nitrogen generator,
Parameter
| Model | NG-300 | NG-500 |
| Output Flow | 0~300ml/min | 0~500ml/min |
| Output Pressure | 0~0.4MPa | |
| Purity | 99.999% | |
| Surrounding Requirement | 0~40℃, no dust and corrosive gas | |
| Consumption | <680W | <700W |
| Power Supply | AC110/220V±10%, 50/60Hz | |
| External Size(W*D*H)mm | 520*286*700 | |
| Package Size(W*D*H)mm | 630*390*870 | |
| Net Weight(Kg) | 50 | |
| Gross Weight(kg) | 60 | |
main feature:
1. The output pressure is 0--0.7MPa, which can fully meet the high pressure requirements of the gas source.
2. The machine includes air compressor, freeze dryer and filter system.
3. The bottom of the nitrogen generator is designed with load-bearing wheels and locks, which are stable and easy to move.
4. The 10L PSA nitrogen generator is equipped with a nitrogen purity meter and a flowmeter, which can display the nitrogen purity and flow in real time, which is easy to operate.
5. The specially designed compressed air micro-oil adsorber is used, and the PSA nitrogen-producing activated carbon is used to adsorb the residual oil in the compressed air, preventing the possible penetration of trace oil and providing protection for the carbon molecular sieve.
6. With recent long-term cooperation experience with domestic and foreign molecular sieve manufacturers, more energy-saving products can be selected according to the user's working conditions.
7. The air storage tank provides the compressed air required by the oxygen and nitrogen separation unit, reduces the load of the compressed air purification unit, reduces the system pressure fluctuation, reduces the airflow pulsation, improves the purification performance, reduces the failure rate, and improves the service cycle
8. The nitrogen buffer tank balances the nitrogen purity and pressure output by the oxygen and nitrogen separation unit, providing high-purity nitrogen required for the secondary uniform process, and the nitrogen distribution in the adsorption tower bed to ensure stable nitrogen flow, purity and pressure.
