Product Details:
|
| Warranty Of Core Components:: | Not Available | Purity:: | 95~99.99% |
|---|---|---|---|
| Key Selling Points:: | Long Service Life | Production Rate:: | 5~2000Nm3/h |
| Warranty:: | 12 Months After Delivery | Local Service Location:: | None |
| Pressure: | 0~0.8MPa (Unpressurized) | Applicable Industries:: | Other |
| High Light: | 95% Purity PSA Nitrogen Generator,PSA N2 Generator 0.8MPa,2000Nm3/h PSA Nitrogen Generator |
||

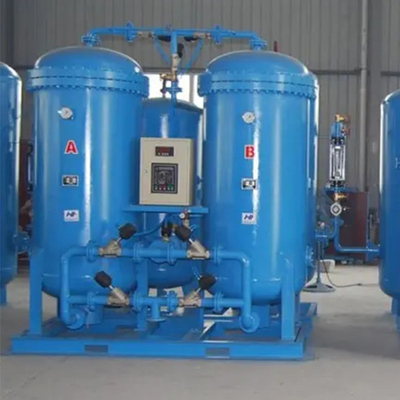

Factory Wholesale Efficient PSA Nitrogen Generator Efficient PSA N2 Generator
Description
The pressure swing adsorption nitrogen equipment uses high-quality carbon molecular sieve as the adsorbent, and uses the PSA pressure swing adsorption principle to directly obtain nitrogen from compressed air. The nitrogen flow rate can reach 10-2000Nm3/h, and the nitrogen purity is 97~99.999% (with nitrogen purification equipment, the purity can be further increased to 99.9995%). The whole machine has simple operation, convenient installation, high degree of automation, and is equipped with unqualified nitrogen automatic emptying device, which can realize unmanned operation. Nitrogen equipment is widely used in electronics, food, metallurgy, electric power, chemical industry, petroleum, medicine, textile, tobacco, instrumentation, automatic control and other industries.
Parameter
| PSA nitrogen generator | ||||||
| model | Oxygen production (Nm³/H) |
Effective gas consumption(Nm³/min) | Air compressor reference(KW/Nm³/min) | Inlet diameter (DN/mm) |
Outlet diameter (DN/mm) |
Oxygen buffer tank (m³) |
| QTO-1 | 1 | 0.4 | 6/0.7 | 0.3 | ||
| QTO-3 | 3 | 0.7 | 7.5/1.1 | 25 | 15 | |
| QTO-5 | 5 | 1.2 | 7.5/1.1 | 25 | ||
| QTO-8 | 8 | 1.8 | 15/2.4 | |||
| QTO-10 | 10 | 2.4 | 15/2.4 | 25 | ||
| QTO-12 | 12 | 2.8 | 18/3.0 | |||
| QTO-15 | 15 | 3.5 | 22/3.6 | 32 | 0.6 | |
| QTO-20 | 20 | 4.7 | 30/5.0 | 32 | ||
| QTO-24 | 24 | 5.6 | 37/6.1 | 1 | ||
| QTO-30 | 30 | 7.0 | 45/8.0 | 40 | 32 | |
| QTO-40 | 40 | 9.3 | 55/9.8 | 50 | ||
| QTO-50 | 50 | 11.7 | 75/13.1 | 50 | 2 | |
| QTO-60 | 60 | 14 | 90/16.8 | 65 | 40 | |
| QTO-70 | 70 | 16.3 | 90/16.8 | 65 | ||
| QTO-80 | 80 | 18.7 | 110/20 | 65 | ||
| QTO-90 | 90 | 21 | 132/23.2 | 80 | 3 | |
| QTO-100 | 100 | 23.4 | 132/23.2 | 80 | 50 | |
FAQ
1. Factory Or Trade Company?
--We Are Professional Nitrogen Generator Factory!
2. How Can i Get Your Price List?
--Send An Enquiry To Us And Tell Us u Need Our Pricelist,Our Sales Will Reply u With in 12 hours With Pricelist.
3. Can i Get An Sample To Check Quality Before Mass Order?
--You Can Visit Our Factory Before You Order Our Products.
4. Any Guarantee For Your Products?
--Professional Engineering Team And Strict Quality Management System. All Of Our Products With 12months Free Guarantee,Never Need To Worry About The After-Sale Service,We Will Always Be Here To Support Your Business!
5. Any Certifications For Your Products?
--Our Products Can Pass ISO 9001 Etc Certifications,So They Can Be Sold To Worldwide Safely!
6. How About The Delivery Time?
--Usually For 15~30days.
7. Do u Support Oem/Odm Service?
--Yes,We Do Support,We Have Experienced R&D Team,So Welcome To Place Oem/Odm Orders To Us.
8.At Last,About The Payment Terms,Any Convenient And Safe Way For Our Buyers?
--We Have Paypal,T/T, Pay
