Product Details:
|
| After-sales Service Provided:: | Overseas Service Center Available, Online Support | Voltage:: | 220v |
|---|---|---|---|
| Liquid Flow Rate:: | 250l/min | Power:: | 60kw |
| Maximum Working Pressure:: | 3.0MPa | Structure:: | Tube Heat Exchanger |
| Feature: | Eco-friendly | Material:: | Stainless Steel 304 |
| High Light: | 60kw plate heat exchanger boiler,220v plate heat exchanger boiler,3.0MPa BPHE evaporator |
||

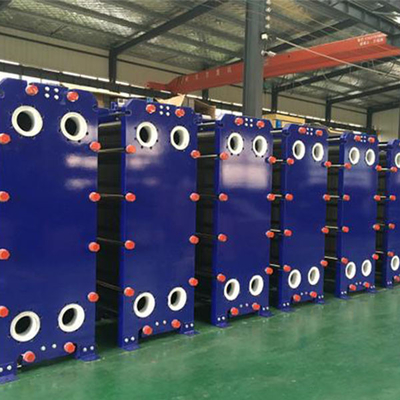

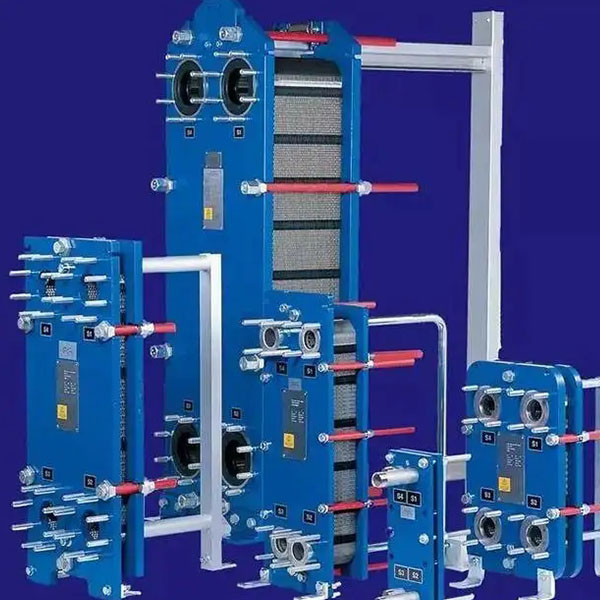

Hot Sale Swimming Pool High Quality Heat Exchanger
Description
Plate heat exchangers have significantly good heat transfer rates because they use metal plates with high thermal conductivity and extremely thin plates. Plate heat exchangers also achieve a large amount of heat transfer through the convective forces of the two working fluids. In the case of large temperature difference, plate heat exchanger can be used to achieve a large amount of heat transfer.
Specifications
| Material | Working Temperature | Working Enviroment |
| NBR | -25~120℃ | Alkane, olefin and other non-polar media, all kinds of mineral oil, animal and vegetable oil, hot water, salt water, etc. |
| EPDM | -50~170℃ | Superheated water, steam, atmospheric ozone, non petroleum based lubricating oil, weak acid, weak base, ketone alcohol, etc |
| HNBR | -25~150℃ | Crude oil, sulfur-containing oil and organic sulfur compounds, some heat transfer oil, new refrigerant 134a, etc |
| Viton | -25~150℃ | Nonpolar mineral oil, high temperature water vapor, sulfuric acid, chlorine water, phosphate with concentration above 98% |
Application
1. Refrigeration: used as condenser and evaporator.
2. HVAC: intermediate heat exchangers used in conjunction with boilers, intermediate heat exchangers in high-rise buildings, etc.
3. Chemical industry: soda ash industry, ammonia synthesis, alcohol fermentation, resin synthesis cooling, etc.
4. Metallurgical industry: heating or cooling of aluminate mother liquor, cooling of steelmaking process, etc.
5. Machinery industry: cooling of various quenching fluids, cooling of reducer lubricating oil, etc.
6. Power industry: oil cooling of high voltage transformers, oil cooling of generator bearings, etc.
7. Paper industry: heat recovery of bleaching process, heating of washing liquid, etc.
8. Textile industry: cooling of viscose silk alkali aqueous solution, cooling of boiling nitrocellulose, etc.
9. Food industry: juice sterilization and cooling, animal and vegetable oil heating and cooling, etc.
10. Grease process: soap-based atmospheric drying, heating or cooling various process liquids.
11. Central heating: district heating with waste heat from thermal power plants, heating water for bathing.
12. Others: petroleum, medicine, ships, seawater desalination, geothermal utilization, solar energy utilization.
