Product Details:
|
| Standard Or Nonstandard:: | Standard | Usage: | Heating And Cooling |
|---|---|---|---|
| Working Temperature:: | 1℃~150℃ | Local Service Location:: | None |
| Condition:: | New | Key Selling Points:: | Easy To Operate |
| Standard: | ISO,DIN,3A | After Warranty Service:: | Video Technical Support, No Service |
| High Light: | 2.0mpa plate type heat exchanger,ss 316l plate type heat exchanger,0.3mm welded plate heat exchanger |
||

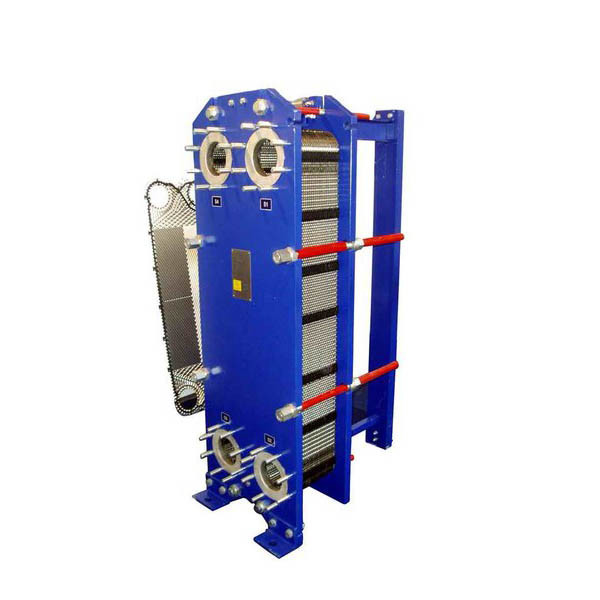

Professional Manufacturing Sanitary Stainless Steel 304 316L Plate Heat Exchanger
Description
The plate of the plate heat exchanger is made of stainless steel 316L, and the penetration test and magnifying glass inspection are carried out according to the standard requirements. Any micro-cracks are not allowed, and its appearance and performance shall meet the requirements or other standards equivalent to it; the gasket material is made of Imported rubber pad, easy to remove and wash;
Parameter
| Technical parameter | |
| Product name | Flat Plate Heat Exchanger |
| Product model | B3-14A |
| Unit heat exchanging area | 0.014m2 |
| Maximum flowrate | 8m3/h |
| Plate Material | 316L or 304 stainless steel |
| Welding material | 99.9% copper |
| thickness of plate | 0.3mm |
| Volume per channel | 0.022L |
| Maximum number of plate | 60 |
| Design pressure | 1.0MPa or 3.0MPa |
| Test pressure | 2.0MPa or 4.5MPa |
| Design temperature | -195 ~+220 |
| Connections |
the biggest screw thread pipe for hot water side: 1", the biggest screw thread pipe for cold water side: 7/8"
|
| Refrigeration Capacity | 1-6KW |
| Basic Procedures | F1-> F3 F4-> F2 |
| Area of Application |
Wall-mounted Heater, Heating Water Heater, Low Temperature Testing Equipment, Small-sized Refrigeration Equipment, etc.
|
Precautions
The plate type heat exchanger should be determined according to the actual needs of the heat exchange occasion. In the case of large flow and small allowable pressure drop, the plate type with low resistance should be selected, otherwise, the plate type with large resistance should be selected. Depending on the fluid pressure and temperature, determine whether to choose a detachable type or a brazed type. When determining the plate type, it is not appropriate to choose a plate with a small veneer area, so as to avoid too many plates, a small flow rate between the plates, and a low heat transfer coefficient. This problem should be paid more attention to for larger heat exchangers.
