Product Details:
|
| Liquid Flow Rate:: | Accept Customization | Structure: | Finned Tube Exchanger |
|---|---|---|---|
| After-sales Service Provided:: | Video Technical Support, Online Support | Machinery Test Report:: | Provided |
| Product Name:: | Tubular Heat Exchanger | Tube: | Fin Height 10-16mm |
| Voltage: | No Requirement | ||
| High Light: | 200C Shell Tube Heat Exchanger,0.6MPA Shell Tube Heat Exchanger,600mm water cooled shell and tube condenser |
||

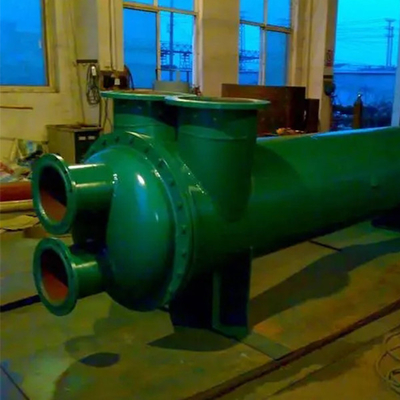

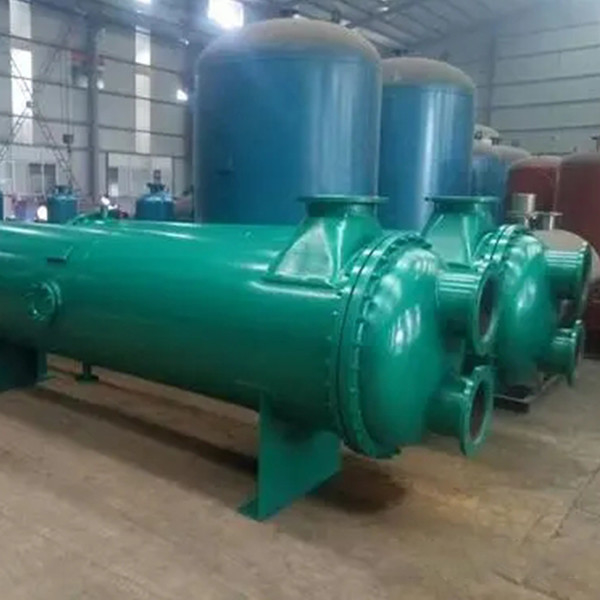

User-Friendly Shell And Tube Heat Exchanger Tubular Heat Exchanger
Description
Shell and tube heat exchanger, also known as tubular heat exchanger, is closed in the shell of the wall of the tube bundle as the heat transfer surface of the wall heat exchanger. This heat exchanger structure is simple, reliable and safe operation, all kinds of structural materials are mainly metal, can be used in high temperature and high pressure environment.
Parameter
| Diameter (mm) | Effective Length(m) | Heart Transfer Area(m2) | Operating Temperature(C) | Working Pressure(Mpa) |
| 400 | 1.2-2.6 | 3.37-8.07 | 200 | 0.6 |
| 500 | 1.6-3.0 | 7.9-14.9 | 200 | 0.6 |
| 600 | 1.8-3.2 | 14.2-25.3 | 200 | 0.6 |
| 800 | 1.8-3.2 | 3.0-40.8 | 200 | 0.6 |
Main features:
1. It can improve heat exchange effect and reduce pressure loss.
2. The heat exchange tube of shell and tube heat exchanger adopts copper tube with large heat exchange area and small product volume.
3. Adopt advanced expansion joint technology, the overall quality temperature is reliable and convenient maintenance, suitable for all kinds of hydraulic transmission machinery.
4. Perfect product series, complete size and specifications, for customers to choose.
working principle
The shell and tube heat exchanger is mainly composed of head, shell, tube bundle, flange connection and other components. One kind of working fluid enters the heat transfer tube through the inlet nozzle at the head end, and its process can realize one-pass, two-pass and four-pass structures according to the process requirements; the other kind of working fluid enters the shell through the inlet tube at one end of the shell. And evenly distributed outside the heat transfer tube, its flow state can be set in the tube bundle with different types and numbers of baffles according to process requirements. As a heat transfer element - heat exchange tube, brass tubes, copper fin tubes and steel tubes can be used according to process requirements, so as to ensure that working fluids with different physical properties and different temperatures can achieve heat exchange in the heat exchanger to achieve cooling or cooling. heating purpose.
