Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa

Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa
Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa

Large Image :  Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa

Product Details:
Place of Origin: henan
Brand Name: MKIMM
Certification: ISO
Model Number: MKIMM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: bargain
Packaging Details: wooden box
Delivery Time: 15days
Payment Terms: T/T,L/C,Paypal,Alipay,West Union and so on
Supply Ability: 25 every month

Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa

Description
Liquid Flow Rate:: Customize Voltage:: 200v/380v
After-sales Service Provided:: Video Technical Support, Online Support Veneer Area:: Customize
Structure:: Plate Heat Exchanger Maximum Working Pressure:: 1.6MPa
Weight:: Customized Certification:: ISO9001
High Light:

Copper finned coil heat exchanger

,

200v finned coil heat exchanger

,

1.6MPa steel coil heat exchanger

Copper Finned Coil Tube Heat Exchanger Reasonable Price



Description

Coil-type heat exchanger is a kind of tube-type heat exchanger, also known as coil-type heat exchanger and multi-circle tube-type heat exchanger. The one is called the shell process, and the internal one is called the tube process. Two different media can flow in the opposite direction (or in the same direction) in the shell side and the tube side to achieve the effect of heat exchange



Specifications

Tube Geometry(mm) Fin pattern FPI(mm)
Φ7 -- 21 / 12.7 / 10.5 Plain, Bridge 12-23
Φ7 -- 21 / 18.19 / 10.2 Sine wave, Lance 13.5-21
Φ7.94 --25.4 / 19.5 / 12.7 Plain, Lance, Sine wave 8-21
Φ9.525 -- 25 / 21.65 / 12.5 Louver, Triangle wave 13-21
9.525 / 25.4 / 19.05 / 12.7 Plain, Louver, Sine wave 10-21



Φ9.525 -- 25.4 / 22 / 12.7

Louver, Sine wave (18R)
Plain, Lence, Sine wave (36 R)
Triangle wave (24 R)

9-21

9-21

2.5-6

Φ12.7 -- 35 / 30.31 / 17.5 Louver, Sine wave 8.5-14
Φ12.7 -- 40.48 / 35.06 / 20.24 Triangle wave 2.5-6
Φ15.88 --38 / 32.91 / 19 Plain, Bridge 6.5-13





advantage:

The coil type heat exchanger has a simple structure, the heat transfer area can be increased or decreased freely, and the heat transfer efficiency is high. The shape can be changed arbitrarily according to the installation position, which is convenient for installation, withstands pressure and shock, is not easy to deform, resists dirt and scale, is not easy to block, returns oil smoothly, has high safety, good workmanship, is not easy to leak, and has flexible structure, convenient layout, low price and cost saving.

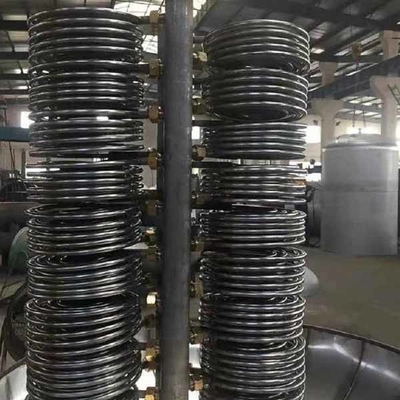

coil heat exchanger

coil heat exchanger
