Product Details:
|
| Core Components: | Pressure Vessel | Max Working Pressure(MPa): | 1.68 MPa |
|---|---|---|---|
| Dimension(L*W*H): | 2300*2300*3154mm | Design Standards: | National Standard |
| Key Selling Points: | Easy To Operate | Isolation: | Muti-layer Insulation |
| High Light: | 316SS Micro Bulk Tanks,Cryogenic Argon Storage Micro Bulk Tanks,1.68 MPa Microbulk Nitrogen Tanks |
||

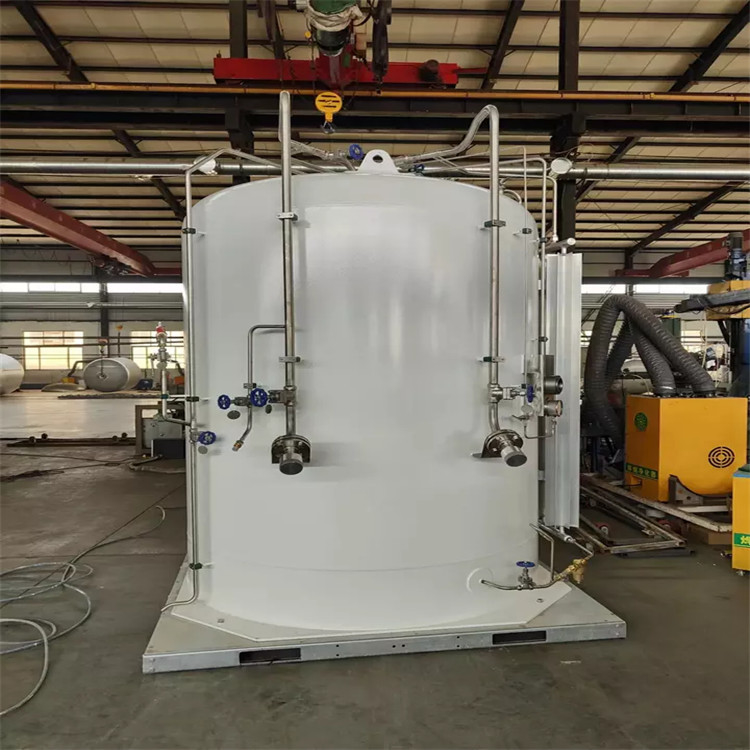

Mini Small Micro Bulk Tanks Cryogenic Liquid Oxygen Nitrogen Argon Storage
Description
cryogenic liquid oxygen storage tank price is for double wall, the inner material adopted 304/316stainless steel,the outer material useing Q235b carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
Specification
|
volume (m3)
|
working pressure (MPa)
|
working medium
|
dimension(mm)
|
net weigh(kg)
|
|
1m3
|
1.6
|
LO2,LN2,LAr,LNG
|
1300*1300*2326
|
720
|
|
2.5
|
LO2,LN2,LAr,CO2
|
1300*1300*2326
|
720
|
|
|
3.4
|
LO2,LN2,LAr
|
1300*1300*2326
|
1096
|
|
|
2m3
|
1.6
|
LO2,LN2,LAr,LNG
|
1750*1750*2741
|
1440
|
|
2.5
|
LO2,LN2,LAr,CO2
|
1750*1750*2741
|
1560
|
|
|
3.4
|
LO2,LN2,LAr
|
1600*1600*2390
|
1780
|
|
|
3m3
|
1.6
|
LO2,LN2,LAr,LNG
|
1850*1850*2869
|
1814
|
|
2.5
|
LO2,LN2,LAr,CO2
|
1850*1850*2869
|
1990
|
|
|
3.4
|
LO2,LN2,LAr
|
1850*1850*2869
|
2408
|
|
|
5m3
|
0.8
|
LNG
|
2300*2300*3160
|
2426
|
|
1.6
|
LO2,LN2,LAr,LNG
|
2150*2150*3095
|
2757
|
|
|
2.5
|
LO2,LN2,LAr,CO2
|
2150*2150*3095
|
3102
|
|
|
3.4
|
LO2,LN2,LAr
|
2150*2150*3095
|
3483
|
|
|
7.5m3
|
1.6
|
LO2,LN2,LAr,LNG
|
2350*2350*3210
|
4326
|
Remarks
1. Inner Material:304/316 stainless steel.
2. Outer Material:Q235b carbon steel.
3. use:: industrial, medical, civil natural gas, etc.

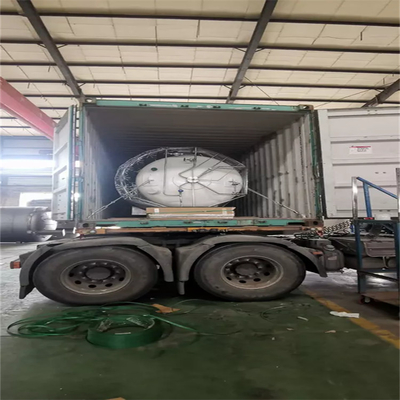

Packing and shipping
We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.
