Product Details:
|
| Core Components: | Pressure Vessel | Capacity: | 2000L |
|---|---|---|---|
| Dimension(L*W*H): | 1750mm*1750mm*2741mm | Weight: | 3483kg |
| Key Selling Points: | Easy To Operate | Working Pressure: | 1.6Mpa |
| High Light: | 2m3 Micro Bulk Tanks,Liquid Oxygen Microbulk Tanks,1.6Mpa Cryogenic Micro Bulk Tanks |
||

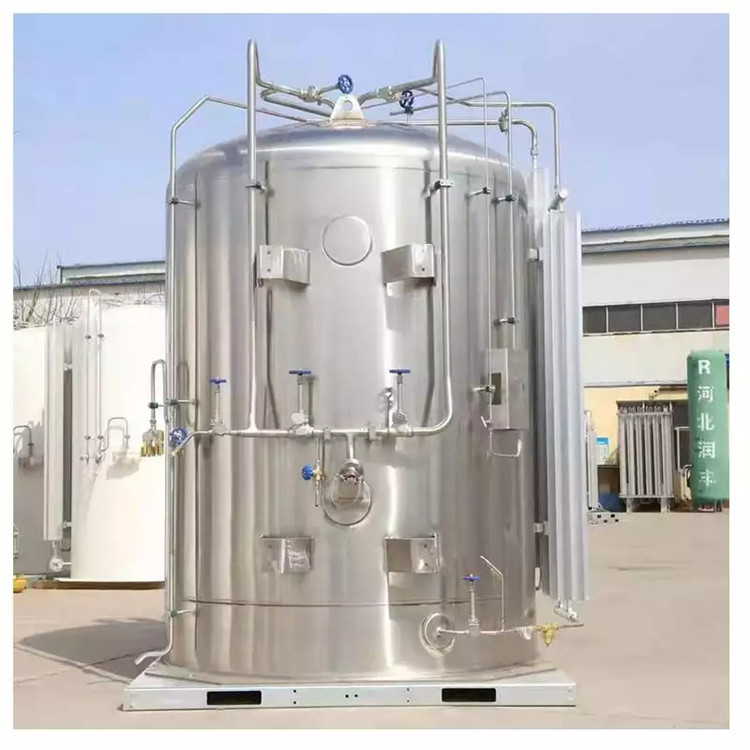

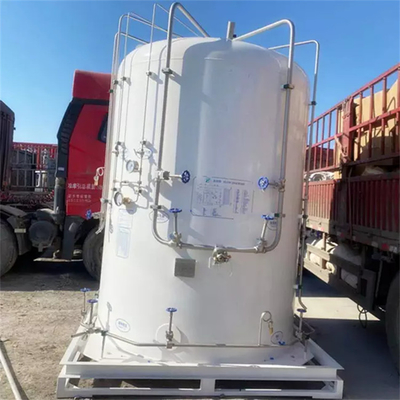

Micro tanks are pressure vessels with inner and outer container dual structure. The inner container is made of S30408 stainless steel, suspended in the Q345R outer container with supporting devices. The space between the inner and outer container is wrapped by high vacuum heat-insulated Aluminum foil fiber glass material.Micro tank is suitable for transporting vaporized gases when it's connected with a vaporizer.It has been widely used in different field
| NO. | Model |
Working pressure (Mpa) |
Nominal volume (L) |
Size(mm) | Medium | Remarks |
| 1 | FV1-450 |
0.8MPa ~ 3.5MPa, or as requrested. |
450 | 1180*1160*1778 |
O2/N2/Ar/CO2
|
Carbon steel shell / stainless steel shell |
| 2 | FV1-850 | 850 | 1180*1180*1830 | |||
| 3 | FV1-1000 | 1000 | 1500*1450*2600 | |||
| 4 | FV1-2000 | 2000 | 1700*1650*3000 | |||
| 5 | FV1-3000 | 3000 | 1900*1850*3100 | |||
| 6 | FV1-4000 | 4000 | 2000*2300*2785 | |||
| 7 | FV1-5000 | 4990 | 2000*2300*3350 | |||
| 8 | FV1-7500 | 7500 | 2000*2300*5000 | |||
| 8 | FV1-10000 | 10000 | 2000*2300*5700 |
1) Q: Are you Factory or trading company ?
We are Factory with 20 years of production experience.
2) Q:Is your price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
3) Q: How about the delivery time?
A:Usually we need about 45 work days produce time. 30 days after receiving the full payment.
