Product Details:
|
| Core Components: | Pressure Vessel | Capacity: | 7.5m³ |
|---|---|---|---|
| Dimension(L*W*H): | 2350*2350*3210 Mm | Working Temperature: | -196℃ |
| Effective Volume: | 1~7.5 M3 95% Filling Volume | Designing Temperature: | -196/+20 °C |
| High Light: | SS Cryogenic Micro Bulk Tanks,Vacuum Cryogenic Micro Bulk Tanks,0.8Mpa Heat Insulation Storage Tank |
||

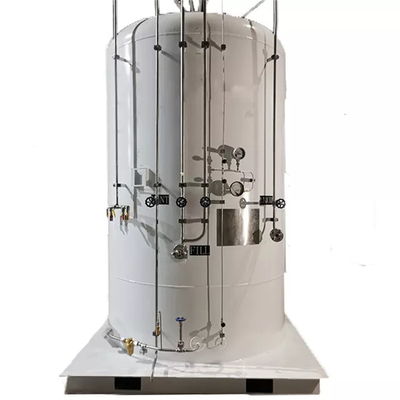

Stainless Steel Cryogenic Micro Bulk Tanks Vacuum Heat-Insulation Storage Tank
Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M3 5M3, 7.5M3. Micro tanks are pressure vessels with inner and outer container dual structure. The inner container is made of S30408 stainless steel, suspended in the Q345R outer container with supporting devices. The space between the inner and outer container is wrapped by high vacuum heat-insulated Aluminum foil fiber glass material.Micro tank is suitable for transporting vaporized gases when it''s connected with a vaporizer.It has been widely used in different field.
|
Model
|
Volume
(cbm)
|
Working Pressure (Mpa)
|
Empty container
(kg)
|
Type
|
The rate of evaporation (%)
|
Outline Size
(Dia * height)
mm
|
|
JSSM15-W0.8
|
15
|
0.6/0.8
|
8145/8415
|
Horizontal
|
0.22
|
2516*6760
|
|
JSSM20-L0.8
|
20
|
0.6/0.8
|
9700/9940
|
Vertical
|
0.22
|
2516*8430 |
|
JSSM20-W0.8
|
30
|
0.6/0.8
|
15240/15540
|
Horizontal
|
0.21
|
2516*8430
|
|
JSSM40-L0.8
|
40
|
0.6/0.8
|
17905/18005
|
Vertical
|
0.18
|
3120*9725 |
1. Micro tank is a pressure vessel which is used for filling and storing cryogenic liquid such as LO2,LAr,LN2,LCO2 and LNG 2.The Maximum working pressure available are 0.8Mpa,1.6Mpa,3.0Mpa and 3.5Mpa,the nominal volumes available are 1m3,2m3,3m3,5m3,7.5m3.
