Product Details:
|
| Core Components: | Engine, Motor, Pressure Vessel | Max Working Pressure(MPa): | 2.16 MPa |
|---|---|---|---|
| Capacity: | 1-5m3 | Dimension(L*W*H): | 3250*103081265 |
| Video Outgoing-: | Provided | Weight:: | 2000 KG |
| Warranty Of Core: | 3 Years | ||
| High Light: | 2.16 MPa Cryogenic Storage Tank,Micro Bulk Cryogenic Storage Tank,2.16 MPa Micro Bulk Tanks |
||

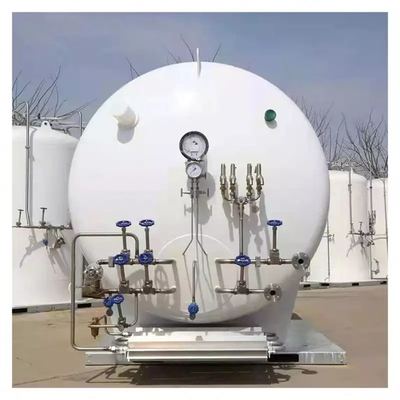

Micro Bulk Cheap Factory Price Cryogenic Storage Tank
The cryogenic storage tank is a vertical or horizontal double-layer vacuum insulation
tank for storing liquid oxygen, nitrogen,argon,carbon dioxide and other media.Its main function is to fill and store low-temperature liquids. For the safe use of cryogenic storage tanks, gas hazardous characteristics, low-temperature protection effects, surrounding environmental conditions, and pressure vessel characteristics should be fully considered, and appropriate technical management measures should taken to ensure safe operation. Potential dangers such as leakage, over pressure,and explosion exist when the storagetnkii operation.If these hidden dangers are not handled in time,serious consequences will result.
|
Model
|
Water capacity
|
Working
pressure(MPA) |
Extemal
dimension(mm) |
Net
weight(kg) |
Full-load weight(kg)
|
||
|
LOX
|
LIN
|
LAr
|
|||||
|
CFLY05/1.0
|
5m3
|
1
|
2216*4405
|
4130
|
9830
|
8180
|
11130
|
|
CFL-Y05/1.75
|
5m3
|
1.75
|
2216*4405
|
4400
|
10100
|
8450
|
11400
|
|
CFL-Y10/1.0
|
10m3
|
1
|
2216*7098
|
6250
|
17920
|
14620
|
20520
|
|
CFL-Y10/1.75
|
10m3
|
1.75
|
2216*7098
|
6861
|
18261
|
14961
|
20861
|
|
CFL-Y15/0.8
|
15m3
|
0.8
|
2616*6520
|
7380
|
24480
|
22530
|
28380
|
|
CFL-Y15/1.75
|
15m3
|
1.75
|
2616*6520
|
8501
|
25601
|
20651
|
29501
|
|
CFL-Y20/0.8
|
20m3
|
0.8
|
2616*8030
|
8925
|
31725
|
25125
|
36925
|
|
CFL-Y20/1.75
|
20m3
|
1.75
|
2616*8030
|
10378
|
33178
|
26578
|
38378
|
|
CFL-Y30/0.8
|
30m3
|
0.8
|
2616*11070
|
12166
|
46366
|
36466
|
54166
|
|
CFL-Y30/1.75
|
30m3
|
1.75
|
2616*11070
|
14300
|
48500
|
38600
|
56300
|
FAQ:
1. What information needed if we sent you the inquiry of the tanks?
The capacity, working pressure and the working medium is most important, and then your special request is also very important. If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
