Product Details:
|
| Max Working: | 1 MPa | Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, G |
|---|---|---|---|
| Dimension(L*W*H):: | 1000*1000*1850mm | Warranty:: | 5 Years |
| Capacity:: | 455L, 1000L, 3000L, 4990L | Weight:: | 2-8 Ton |
| Usage:: | Gas Store | ||
| High Light: | 1MPa Micro Bulk Tanks,Carbon Steel Micro Bulk Tanks,Carbon Steel Microbulk Tanks |
||
Hot sales Micro bulk tank mini bulk tank with factory price

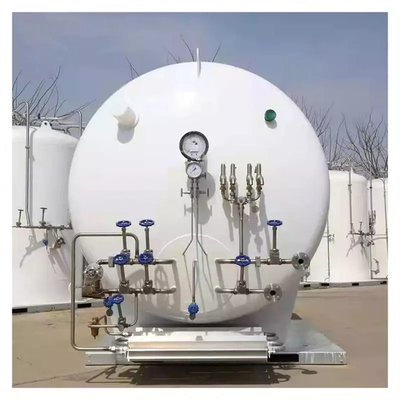

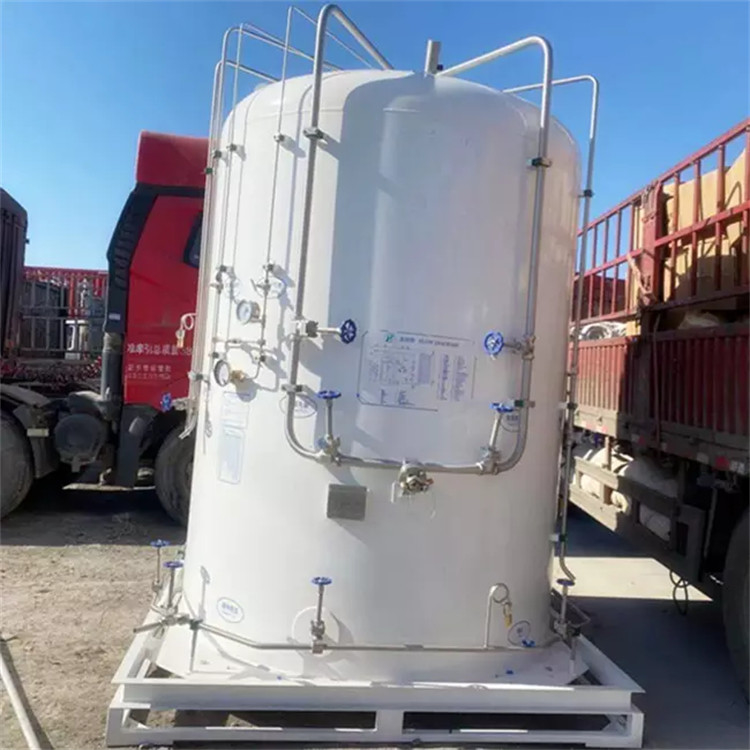

The micro bulk tank is a compact jacket-type vacuum multilayer insulation (vacuum powder insulation) cryogenic pressure vessel used for storing and supplying cryogenic liquefied gases (liquid nitrogen, liquid oxygen and liquid argon, etc.)
| Working pressure | 0.8Mpa-3.4Mpa |
| Volume | 450L-4993L |
| Medium | LOX/LIN/LAr/LCO2 |
| Material | Stainless steel and carbon steel |
| Diameter | φ758mm-1816mm |
| Height | 1706mm-3265mm |
| Empty weight | 354kg-4275kg |
| Design standard | GB/ASME |
| Insulation type | High vacuum multi-layers Insulation |
FAQ
1. How about quality of your products?
All the cryogenic liquid tanks are new. All the material come from our direct suppliers, and all confirm with the national standard.
2. What information needed if we sent you the inquiry of the tanks?
The capacity, working pressure and the working medium is most important, and then your special request is also very important. If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
3. How can you guarantee your tanks quality?
For cryogenic liquid storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
