20L VPSA Oxygen Generator 1.6 MPa For Hospital Use

Large Image : 20L VPSA Oxygen Generator 1.6 MPa For Hospital Use

Product Details:

Place of Origin:	CHINA
Brand Name:	GNEE
Certification:	SGS

Payment & Shipping Terms:

Minimum Order Quantity:	≥1sets
Price:	depend on product
Packaging Details:	Wooden box packaging
Payment Terms:	MoneyGram,Western Union,D/P,T/T,D/A,L/C

Contact Now

20L VPSA Oxygen Generator 1.6 MPa For Hospital Use

Description

Pressure Range:	1.6 MPa	Safety Device:	Pressure Relief Valve
Key Selling Points:	Energy Saving	Machinery Test Report:	Provided
Outer Vessel Material:	Carbon Steel	Pressure Rating:	High Pressure
Safety Features:	Pressure Relief Valves, Vacuum Relief Valves, Burst Discs	Placement Method:	Vertical
Oxygen Tank:	15000Liters Liquid Oxygen Tank	Other Name:	VPSA Oxygen Equipment
Highlight:	20L VPSA oxygen generator , hospital oxygen generator 1.6 MPa , Hospital vpsa oxygen generator

20 Liter Medical VPSA Oxygen Generator For Hospital

Product Description

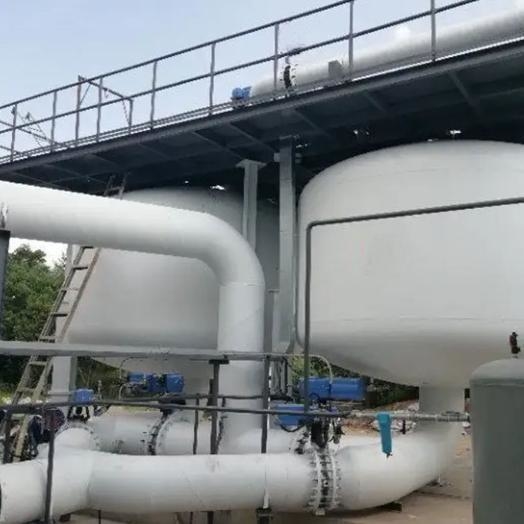

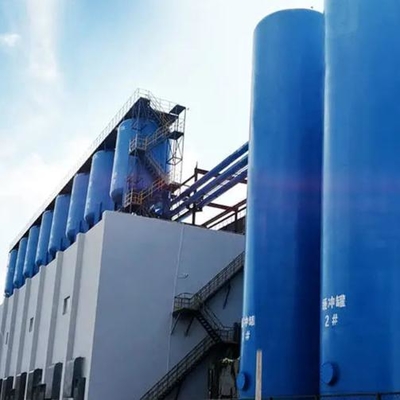

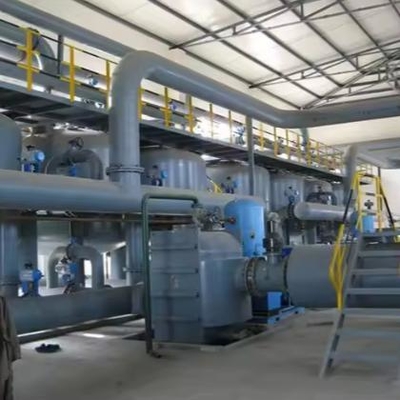

Our oxygen generator plants utilize a reliable, flexible, and trouble-free vacuum pressure swing adsorption (VPSA) process. These systems are ideal for on-stream applications requiring low-cost gaseous oxygen with purity levels of 90-95% by volume. Available in capacities ranging from 300 Nm³/h to 10,000 Nm³/h, we offer both pre-engineered, standardized containerized VPSA plants and customized solutions.

Product Parameters

Gas production (Nm³/h)	Air consumption (Nm³/min)	Imported nominal diameter DN (mm)	Imported nominal diameter DN (mm)	Air nominal diameter DN	Host LWH (mm)
1	0.2	DN15	DN15	NT0010	800 * 650*1720
2	0.4	DN15	DN15	NT0010	950 * 950*1500
3	0.6	DN15	DN15	NT0010	1050 * 900*1865
5	1	DN20	DN15	NT0010	1450 * 900*1825
10	2	DN32	DN15	NT0020	1450 * 900*1825
15	3	DN40	DN25	NTAD-4-0	1800 * 950*1940
20	4	DN40	DN25	NTAD-6-0	1850 1025 2100
25	5	DN50	DN25	NTAD-6-0	2000 1050 2210
30	6	DN50	DN25	NTAD-8-0	2000 1050 2530
50	10	DN65	DN25	NTAD-13-0	2200 1250 2720
60	12	DN65	DN40	NTAD-15-0	2250 1300 2850
80	16	DN80	DN40	NTAD-20-0	2350 1550 3060
100	20	DN100	DN40	NTAD-25-0	2500 1600 3330
120	24	DN100	DN40	NTAD-30-0	2600 1700 3670
150	30	DN150	DN40	NTAD-40-0	4700 1500 2980
180	36	DN200	DN40	NTAD-40-0	4700 1600 3370
200	40	DN200	DN40	NTAD-60-0	5000 1600 3330
240	48	DN200	DN50	NTAD-60-0	5200 1700 3670

VPSA Oxygen Production Technology Process

Low-pressure raw air is transported by a blower, purified through dust removal, then enters the VPSA system's molecular sieve adsorption tower for separation
The adsorption tower (two-tower or three-tower system) uses specific molecular sieves to adsorb nitrogen, carbon dioxide, and water vapor while collecting oxygen in a buffer vessel
When adsorption reaches set control values, the adsorbent is thoroughly desorbed and regenerated through pressure reduction and vacuum pumping
An automatic control system (PLC or DCS) manages valve circulation to maintain continuous oxygen production

The VPSA oxygen production process offers significant advantages including low oxygen cost, minimal equipment operation cost, high automation, compact footprint, and convenient start-stop operation.

In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
