10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

Large Image : 10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

Product Details:

Place of Origin:	CHINA
Brand Name:	GNEE
Certification:	SGS

Payment & Shipping Terms:

Minimum Order Quantity:	≥1sets
Delivery Time:	Transit time: Est. 17-24 days
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability:	25 every month

Contact Now

10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

Description

Keyword:	Oxygen Plant	Technology:	Vacuum Pressure Swing Adsorption (VPSA)
Output Pressure:	10-15Kap Or As User's Requirement	Application:	Oxygen Production
Outlet Pressure:	≥1barg	Dew Point:	≤-40°C
Pressure:	0.2-0.6 MPa	Process:	VPSA
Operating Temperature:	5-45°C	Operate Power:	1 KW
Capacity:	10-5000 Nm3/hr	Flow Rate:	100-10000Nm3/h
Highlight:	VPSA oxygen plant for medical use , VPSA oxygen generator 10-5000 Nm3/hr , 10-15Kap medical oxygen generator

93%-99.5% Customized Advanced VPSA Oxygen Plant for Medical

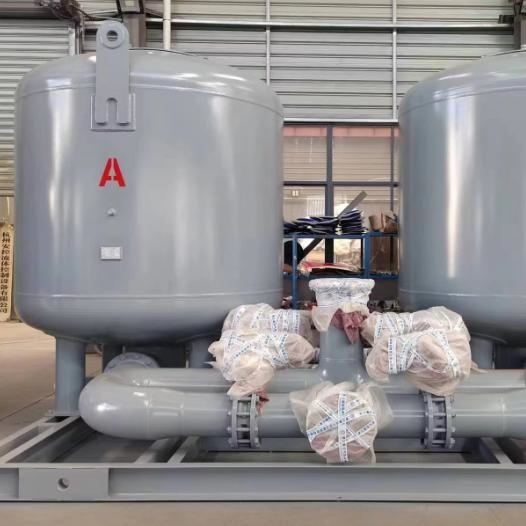

The VPSA Oxygen Generator utilizes pressure swing adsorption technology with zeolite molecular sieve as the adsorbent. The molecular sieve selectively adsorbs nitrogen while allowing oxygen to concentrate in the gas phase, achieving efficient nitrogen-oxygen separation. The system employs a dual-adsorption-tower configuration where one tower produces oxygen while the other regenerates under negative pressure. PLC-controlled pneumatic valves alternate the towers continuously to ensure stable, high-quality oxygen output.

Product Parameters

Main technical parameters of VPSA oxygen production: Purity 93%

Model specification	HL-200	HL-300	HL-400	HL-500	HL-600	HL-800	HL-1000
Gas production Nm³/h	200	300	400	500	600	800	1000
Voltage	380v	380v	380v	380v	380v	10kv	10kv
Installed power KW	120	165	200	270	317	380	450
Valve gas consumption m³/min	0.5	0.7	0.9	1.1	1.4	1.6	2.0
Cooling water circulation m³/h	11	15	20	26	30	38	55
Soft water consumption m³/h	1.2	1.8	1.98	2.1	2.1	2.4	2.7

Main technical parameters of VPSA oxygen production: Purity 95%

Model specification	HL-1200	HL-1600	HL-2000	HL-3000	HL-3600	HL-4500	HL-5500
Gas production Nm³/h	1200	1600	2000	3000	3600	4500	5500
Voltage	10kv	10kv	10kv	10kv	10kv	10kv	10kv
Installed power KW	565	715	1000	1250	1600	2000	2500
Valve gas consumption m³/min	2.0	2.4	3.0	3.3	4.2	5.5	6.5
Cooling water circulation m³/h	62	90	100	110	120	130	140
Soft water consumption m³/h	2.7	2.88	3.3	3.6	4.2	4.5	4.8

Technical Characteristics

Purification equipment uses carbon-supported catalyst requiring no hydrogen source, ensuring safe and easy operation
Dual-tower switching capability allows for dehydration desiccant replacement or maintenance without system shutdown
Premium carbon-supported catalyst extends replacement cycles while maintaining oxygen purity above 99.9995%
PLC-controlled automatic tower switching eliminates potential human error in manual operations

We also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other equipment, please contact us at info@gneeheatex.com. Our team is ready to assist with your oxygen generation needs.
