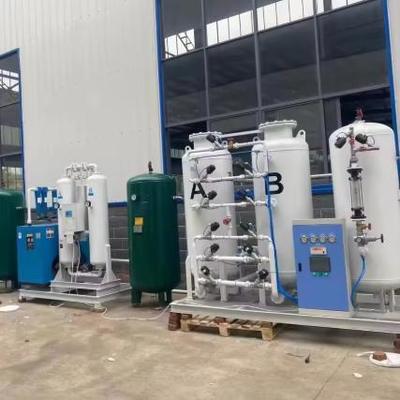

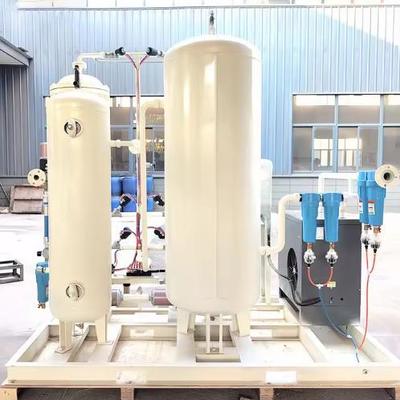

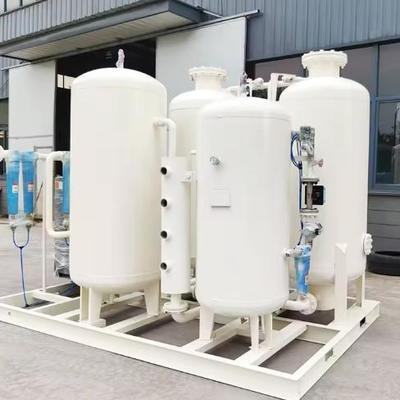

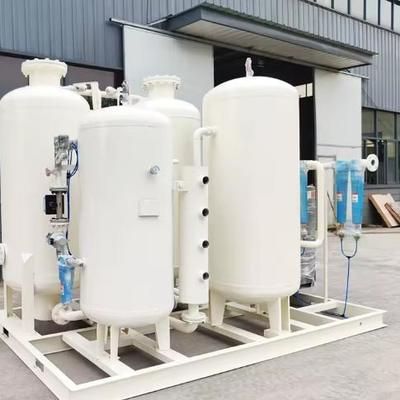

PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use

PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use

Large Image :  PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Packaging Details: Wooden box packaging
Delivery Time: Transit time: Est. 17-24 days
Payment Terms: MoneyGram,Western Union,T/T,D/P,L/C,D/A
Contact Now

PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use

Description
Product: VPSA Oxygen Generator Outer Vessel Diameter: 2000 Mm
Capacity: 100Nm3/hr~8000Nm3/hr Usage: Oxygen
Air Compressor Pressure: 0.7-1.0MPa Oxygen Purity: 93%-95%
Technology: Pressure Swing Adsorbtion (PSA) Air Compressor Power: 22-110kW
Warranty Period: 15years+ Flow: 1200m3 / H
Weight: Depend On Capacity Filling Rate: 95%
Highlight:

93%-95% Oxygen Purity PSA Oxygen Generator

,

100Nm3/hr~8000Nm3/hr Capacity VPSA Oxygen Generator

,

0.7-1.0MPa Air Compressor Pressure Oxygen Gas Generator

PSA Oxygen Generator for General Industry
Premium Quality PSA Oxygen Generation System
Our PSA oxygen plants utilize advanced Pressure Swing Adsorption technology to deliver industrial-grade oxygen generation solutions. Manufactured to international standards with premium quality materials, our systems offer exceptional performance at competitive prices.
Key Specifications
Product Name PSA Oxygen Gas Generator
Model No. PSA
Oxygen Production ≥100Nm³/h
Oxygen Purity 90~94%
Oxygen Pressure 50Kpa
Dew Point ≤-50°C
Capacity Specifications
Capacity (Nm³/h) Purity O₂ Outlet Pressure (Mpa) Inlet/Outlet Connections (mm) Dimensions (mm)
2.2 - 3 95%±1% 0.3 - 0.5 DN15/G1 2 1200×1000×1840
3.5 - 5 95%±1% 0.3 - 0.5 DN20/G1 2 1350×1200×2050
6 - 7 95%±1% 0.3 - 0.5 DN25/G1 2 1500×1350×2350
30 98%±1% 0.5 - 1.0 DN50/G1 2 /
40 98%±1% 0.5 - 1.0 DN50/G1 /
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use 0 PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use 1 PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use 2
Technical Features
  • Full Automation: Designed for unattended operation with automatic oxygen demand adjustment
  • Compact Design: Minimal space requirements with skid-mounted, prefabricated assembly
  • Fast Start-up: Achieves desired oxygen purity in just 5 minutes
  • High Reliability: Continuous operation with constant oxygen purity and >99% availability
  • Long Sieve Life: Molecular sieves last approximately 15 years (entire plant lifetime)
  • Adjustable Output: Precise oxygen purity control through flow adjustment
Packaging Information
Size 123 (L) × 456 (W) × 789 (D)
Weight 1.2 T
Packaging Details Standard wooden box packaging. European shipments include fumigation. Custom packaging options available for special requirements.
We also manufacture VPSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA systems or other products, please contact us at info@gneeheatex.com.

Tag:

VPSA oxygen plant 300 Nm3/hr,

industrial VPSA oxygen generator,

PLC control oxygen plant
