Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production

Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production
Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production

Large Image :  Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Packaging Details: Wooden box packaging
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 25 every month
Contact Now

Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production

Description
Material: Carbon Molecular Sieve Model No: Nitrogen Generators
Purity: 95%-99.9995% Product: PSA Nitrogen Generator
Air Factor: 2.6~3.5 Production Capacity: 100 Sets Per Month
Electrical Reistivity: >1M Ω/cm Working Power: 1 Kw
Showroom Location: None Advantage: Energy Saving
Highlight:

Auto Start Stop PSA Nitrogen Generator

,

Automatic Nitrogen Gas Generator

,

Carbon Molecular Sieve Pressure Swing Adsorption Nitrogen System

High Purity 99-99.9999% PSA Auto Start Stop Automatic Nitrogen Generator
PSA Nitrogen Generator
The PSA nitrogen making device uses clean air as raw material and carbon molecular sieve as adsorbent. Through pressure swing adsorption principle at normal temperature, it separates oxygen and nitrogen to obtain high purity nitrogen. The PLC control program manages valve operations to achieve pressure adsorption and vacuum desorption processes.
Product Parameters
Purity - 99%
Nitrogen Purity Nitrogen Production (Nm³/h) Effective Air Consumption (Nm³/min) Inlet Pipe Size (DNmm) Outlet Pipe Diameter (DNmm)
99%100.411515
99%200.811515
99%301.222515
99%401.592525
99%501.983225
99%602.33225
99%702.83225
99%803.14025
99%10044025
99%1506.15032
99%2008.15032
99%300126540
99%400186540
99%500208050
99%600248050
99%700258050
99%8003210065
99%9003410065
99%10004010065
99%15006012580
99%200080150100
99%3000120200100
Purity - 99.9%
Nitrogen Purity Nitrogen Production (Nm³/h) Effective Air Consumption (Nm³/min) Inlet Pipe Size (DNmm) Outlet Pipe Diameter (DNmm)
99.9%100.611515
99.9%201.222515
99.9%301.822515
99.9%402.442525
99.9%503.033225
99.9%603.653225
99.9%704.263225
99.9%804.94025
99.9%10064025
99.9%15095032
99.9%200125032
99.9%300186540
99.9%400248050
99.9%500308050
99.9%6003710065
99.9%7004510065
99.9%8004812565
99.9%9005612565
99.9%10006215065
99.9%15009215080
99.9%2000124200100
99.9%3000185300200

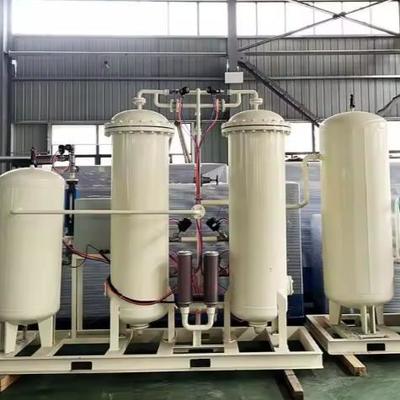

System Components
Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production 0
  1. Air compressor (screw type): Collects and compresses air to 8 bar
  2. Cold dryer: Removes moisture and impurities (standard dew point -20°C, optional configurations available)
  3. Precision filter: Three-stage filtration for oil, dust, and impurity removal
  4. Air buffer tank: Stores pure, dry air for adsorption process
  5. Adsorption towers: A&B towers with sodium type molecular sieves for oxygen/nitrogen separation
  6. Oxygen/nitrogen analyzer: Real-time purity monitoring
  7. Valves & pipelines: Intelligent control valves with PLC and SUS304 piping
  8. Buffer tanks: Store oxygen and nitrogen at qualified purity
  9. Pressure regulator: Stabilizes outlet pressure (3-6 bar)
  10. Dust filter: Removes molecular sieve particles
  11. Check valve: Prevents gas reflux
  12. Turbocharger: Boosts gas pressure (typically 150-200 bar)
  13. Filling system: Distributes gas to cylinders
Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production 1 Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production 2 Auto Start Stop Automatic PSA Nitrogen Generator with Carbon Molecular Sieve for High Purity Nitrogen Production 3
Applications
  1. Metallurgy: Annealing protection, sintering, nitriding, furnace purging (metal heat treatment, powder metallurgy, semiconductors)
  2. Chemical Industry: Material processing, pipeline purging, product transport (polyurethane, rubber, plastics, biotechnology)
  3. Electronics: Encapsulation, soldering, storage (PCB assembly, batteries, electronic materials)

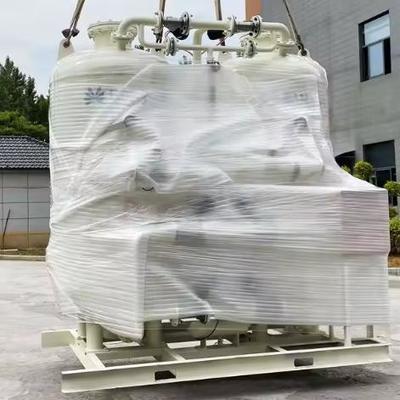

Packaging Details
Size123 (L) × 456 (W) × 789 (D)
Weight1.2 T
PackagingStandard wooden box (fumigated for European exports), PE film or custom packaging available
We also manufacture VPSA Oxygen Generators, PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about PSA Nitrogen Systems or other products, please contact us at info@gneeheatex.com.
