High-Efficiency PSA Nitrogen Generator with 12 Months Warranty, 1 kw Power, and Customizable Capacity

Customized PSA nitrogen generator with purity ranging from 95% to 99.999% (without purification system). Capacity ranges from 1Nm³/h to 5000Nm³/h with operating pressure from 0.1bar to 200bar. Utilizes carbon molecular sieve as sorbent and operates on the Pressure Swing Adsorption (PSA) principle.

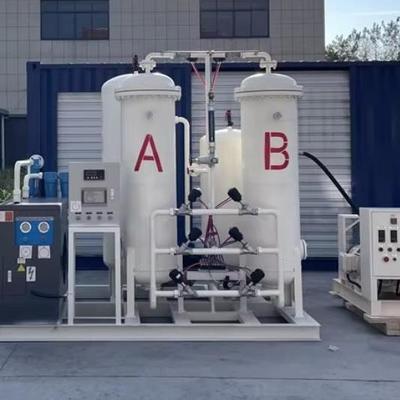

Air is filtered to remove dust and mechanical impurities before entering the air compressor where it's compressed to required pressure. The compressed air undergoes rigorous oil, water, and dust removal to produce clean compressed air, ensuring molecular sieve longevity. During operation, one chamber adsorbs while the other desorbs in alternating cycles. Clean air enters the working adsorption tower where molecular sieves absorb oxygen, carbon dioxide, and water. The resulting gas (primarily nitrogen with trace argon and oxygen) flows to the outlet. This continuous alternating process between two towers produces nitrogen with purity ranging from 95% to 99.999%.

• Based on mature and reliable Pressure Swing Adsorption (PSA) principle
• Intelligent soft cycle switching with adjustable purity and flow range
• Optimal system component configuration with low failure rate
• Uniform airflow distribution reduces high-speed impact
• Perfect process design for optimal usage effect
• Unique molecular sieve protection extends service life
• Intelligent chain system ensures product quality
• Optional automatic adjustment and remote control systems available
• Easy operation with stable performance and high automation
