Industrial VPSA Oxygen Generator with 220v/380v/50-60hz Voltage for Continuous Operation and Carbon Steel Outer Vessel

Large Image : Industrial VPSA Oxygen Generator with 220v/380v/50-60hz Voltage for Continuous Operation and Carbon Steel Outer Vessel

Product Details:

Place of Origin:	CHINA
Brand Name:	GNEE
Certification:	SGS

Payment & Shipping Terms:

Minimum Order Quantity:	≥1sets
Price:	According to the product
Packaging Details:	Customer's Requst/customization
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Contact Now

Industrial VPSA Oxygen Generator with 220v/380v/50-60hz Voltage for Continuous Operation and Carbon Steel Outer Vessel

Description

Technology:	Vacuum Pressure Swing Adsorption	Keyword:	VPSA Oxygen Plant
Purity:	90-95%	Outer Vessel Material:	Carbon Steel
Piping Material:	Stainless Steel	Maintenance:	Low Maintenance
Operation Mode:	Continuous	Operating Temperature:	5-45°C
Dew Point:	-65℃	Voltage:	220v/380v/50-60hz
Material:	Stainless Steel	Application:	Industrial
Highlight:	220v/380v/50-60hz Voltage VPSA Oxygen Generator , Continuous Operation Oxygen Production Equipment , Carbon Steel Outer Vessel Vacuum Pressure Swing Adsorption Oxygen Generator

On-Site Mobile Gases Systems Production Line PSA VPSA Oxygen Generator

The VPSA Oxygen Generator (Vacuum Pressure Swing Adsorption Oxygen Generator) is an air separation equipment based on the selective adsorption characteristics of molecular sieves. Through the cyclic mechanism of adsorption process near atmospheric pressure and vacuum desorption, it preferentially adsorbs impurities such as nitrogen and carbon dioxide in the air, and finally stably produces oxygen with a purity of 90%-95%. It features low energy consumption and high degree of automation, and is widely used in metallurgy, chemical industry, medical field and other sectors.

Technical Parameters

Oxygen Output (Nm³/h)	Purity (%)	Instrument Air Consumption (M³/h)	Water Consumption (M³/h)	Power Consumption (KW)	Total Power (KW)	Bed Layer Type	Area (M²)
50	90	10	3	32.5	40	vertical	6 x 9
150	90-93	20	15	65	85	vertical	9 x 9
200	90-93	25	15	86	110	vertical	9 x 9
300	90-93	30	30	132	155	vertical	14 x 12
400	90-93	40	30	172	205	vertical	15 x 14
600	90-93	50	45	258	320	vertical	12 x 18
800	90-93	60	50	344	410	vertical	15 x 18
1000	90-93	65	60	436	550	vertical	16 x 18
1500	90-93	90	90	675	845	vertical or horizontal	18 x 18
2000	90-93	100	150	900	1060	vertical or horizontal	18 x 24

System Components

Air compressor (screw type): Uses air as raw material to collect and compress air to 8 bar
Cold dryer: Standard configuration removes moisture and impurities from the air, making its dew point reach -20ºC (intermediate configuration uses adsorption dryer, dew point reaches -40ºC; advanced configuration uses combination dryer, dew point reaches -60ºC)
Precision filter: A/T/C three-stage filter for oil removal, dust removal, and impurity removal
Air buffer tank: Stores pure and dry air as raw material reserve for subsequent adsorption and separation of oxygen and nitrogen

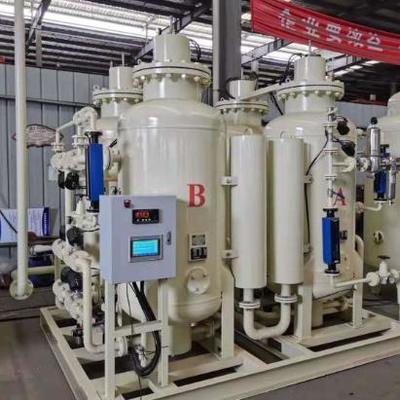

Adsorption tower: A&B adsorption towers work alternately, regenerate adsorption, and filter out oxygen molecules by filling sodium type molecular sieves
Oxygen&nitrogen analyzer: Real-time monitoring and analysis of oxygen and nitrogen purity
Valves&Pipelines: Intelligent control valves achieve fully automatic operation of equipment, PLC control, SUS304 pipeline
Oxygen&Nitrogen Buffer Tanks: Store oxygen and nitrogen with qualified purity
Pressure regulator: Adjust and stabilize the outlet pressure of oxygen and nitrogen (3-6 bar)
Dust filter: Remove dust caused by molecular sieves in oxygen and nitrogen
Check valve: Prevents oxygen and nitrogen reflux
Turbocharger: Oxygen and nitrogen booster that boosts the pressure to filling pressure (usually 150 bar or 200 bar)
Pressure regulating valve: Oxygen&nitrogen compressor pressure regulation
Filling row: Split high-pressure oxygen and nitrogen into each gas cylinder

In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in VPSA Oxygen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.
