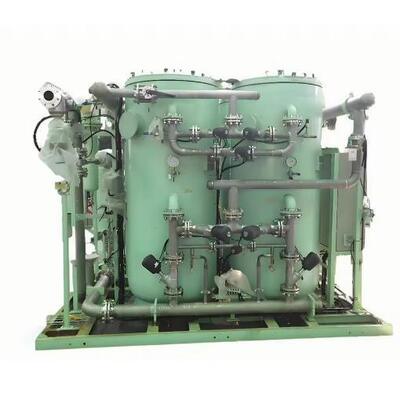

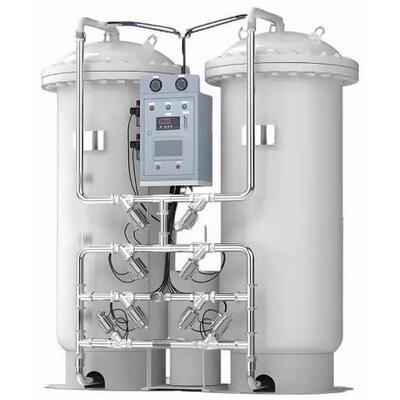

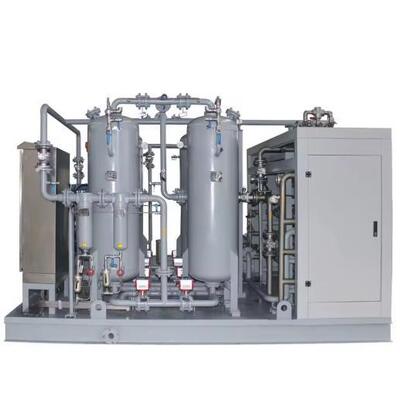

Nitrogen Generation Module PSA Nitrogen Plant 20Nm³/hr
A Pressure Swing Adsorption nitrogen generator (PSA nitrogen generator) is advanced gas separation equipment that extracts high-purity nitrogen from ambient air using the Pressure Swing Adsorption principle. By utilizing the selective adsorption capacity of carbon molecular sieve (CMS) for oxygen and nitrogen, it achieves efficient separation without chemical reactions, ensuring stable and continuous nitrogen supply. Key advantages include onsite nitrogen generation, eliminating costly nitrogen cylinder transportation and storage, along with remarkable energy-saving performance compared to traditional methods. With flexible modular design and easy scalability, modular nitrogen generator variants adapt to diverse industrial demands, while high automation reduces manual intervention and operational costs.
Core Technical Parameters
| Nitrogen production (Nm³/h) |
Effective air consumption (Nm³/min) |
Inlet pipe size (DNmm) |
Outlet pipe diameter (DNmm) |
Host L * W (mm) |
| 5 |
0.7 |
25 |
15 |
1150*600 |
| 10 |
1.4 |
25 |
15 |
1250*880 |
| 20 |
2.8 |
40 |
15 |
1750*1000 |
| 30 |
4.2 |
40 |
25 |
2150*1100 |
| 40 |
5.6 |
50 |
25 |
2250*1140 |
| 50 |
7.0 |
50 |
25 |
2500*1150 |
| 60 |
8.4 |
50 |
25 |
2750*1450 |
| 80 |
11.2 |
65 |
32 |
2750*1450 |
| 100 |
14.0 |
65 |
32 |
2850*1550 |
| 200 |
28.0 |
65 |
32 |
3250*1820 |
| 300 |
42.0 |
80 |
40 |
3500*2150 |
Working Principle of PSA Nitrogen Generation System
The PSA nitrogen generation system operates through a cyclic process of adsorption and desorption, leveraging the different adsorption capacities of carbon molecular sieve for oxygen and nitrogen. When compressed air (filtered to remove oil, water, and impurities) enters the adsorption tower under pressure, oxygen molecules are preferentially adsorbed by the CMS, while nitrogen molecules pass through and are collected as product gas. When one tower reaches adsorption saturation, the system switches to the other tower for continuous production, while the saturated tower undergoes depressurization and regeneration to release adsorbed oxygen. This fully automated cyclic process ensures 24/7 stable supply of high-purity nitrogen, and the PSA technology for nitrogen generation is widely recognized for its high efficiency and reliability in industrial applications.
Key Types and Application Scenarios
PSA nitrogen generators are classified into multiple types based on application requirements and structural designs:
- Pharmaceutical Grade PSA Nitrogen Generator: Complies with GMP standards, providing nitrogen with purity up to 99.999% for drug production, packaging, and sterile processes
- Marine PSA Nitrogen Generator: Anti-corrosion, shockproof, and compact design for offshore platforms, ships, and marine engineering
- Modular nitrogen generator: Independent functional modules for flexible combination according to production capacity needs
- Portable PSA Nitrogen Gas Generator: Lightweight and movable for on-site maintenance, emergency supply, and small-scale production
- Explosion-proof nitrogen generator: Equipped with explosion-proof components for hazardous environments
- High-efficiency PSA Nitrogen Generator: Optimized adsorption cycle parameters reducing energy consumption by 15-30%
These PSA nitrogen plants serve various industries: chemical industry for inert protection; food industry for modified atmosphere packaging; electronics industry for soldering and component protection; heat treatment industry for metal process quality assurance.
Selection Factors and Factory Price Advantages
When selecting a PSA nitrogen generator, consider: nitrogen purity requirements (99.5% for general use, 99.999% for electronics/pharmaceuticals); production capacity matching actual demand; energy efficiency prioritizing Energy-saving nitrogen generator; safety performance selecting Explosion-proof nitrogen generator for hazardous areas; and after-sales service from reputable PSA nitrogen plant manufacturers.
As a professional PSA nitrogen generator manufacturer, we offer the 20Nm³/hr Nitrogen Generation Module PSA Nitrogen Plant at factory direct prices. Our products use high-quality carbon molecular sieve and imported components, ensuring stable performance and long service life. The PSA nitrogen generator price is competitive while maintaining strict quality control meeting ISO and CE standards. We provide customized services including Container Type PSA Nitrogen Generator and PSA N2 Production Unit tailored to specific needs, plus comprehensive after-sales support.
Maintenance and Daily Operation
Proper maintenance ensures stable and efficient operation of PSA nitrogen plant working systems. Regular maintenance includes: replacing pre-filter elements every 3-6 months; checking adsorption towers for air leakage; replacing carbon molecular sieve every 3-5 years; cleaning control systems and electrical components; maintaining clean, dry equipment environment.
Daily operation procedures: start air compressor first and wait for pressure to reach set value before starting PSA generator; monitor nitrogen purity and pressure in real-time via touch screen; avoid frequent startup/shutdown; record operational data for maintenance optimization.
Conclusion
The Pressure Swing Adsorption nitrogen generator is essential in modern industrial production due to advantages of onsite nitrogen generation, high efficiency, energy saving, and flexibility. The 20Nm³/hr Nitrogen Generation Module PSA Nitrogen Plant offers balanced production capacity, purity, and cost-effectiveness for diverse industrial applications.
As trusted PSA nitrogen generator manufacturers, we deliver high-quality products and professional services to help customers reduce costs and improve efficiency. Choose our PSA nitrogen generator for reliable nitrogen supply and competitive pricing.
