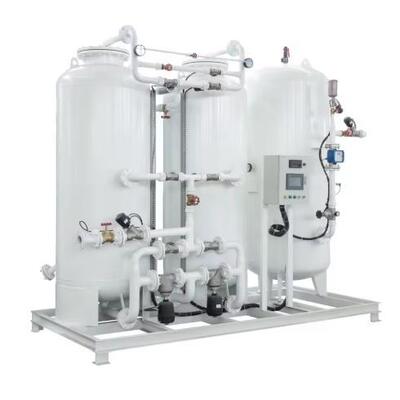

Industrial Grade Nitrogen Generator for Laser Cutting
Energy-saving PSA N2 making machine with stable performance for industrial applications.
PSA Nitrogen Generator Overview
A PSA nitrogen generator is an advanced gas separation system that produces nitrogen from compressed air using pressure swing adsorption nitrogen generation technology. Compared with traditional liquid nitrogen supply, PSA nitrogen generators enable continuous onsite nitrogen generation, reducing operating costs and supply risks. These systems are widely recognized for their energy efficiency, stable nitrogen purity, and automated operation.
Technical Specifications
| Carbon Molecular Sieve (KG) |
Nitrogen Capacity (Nm³/h) by Purity Level |
|
96% |
97% |
98% |
99% |
99.95% |
99.98% |
99.995% |
99.999% |
| 120 | 55 | 50 | 45 | 40 | 20 | 15 | 13 | 10 |
| 150 | 75 | 70 | 65 | 50 | 20 | 20 | 15 | 13 |
| 180 | 80 | 80 | 70 | 60 | 30 | 22 | 20 | 15 |
| 210 | 105 | 100 | 90 | 80 | 30 | 25 | 25 | 18 |
| 240 | 115 | 110 | 100 | 90 | 40 | 30 | 27 | 20 |
| 275 | 130 | 120 | 110 | 100 | 45 | 35 | 30 | 23 |
| 300 | 150 | 140 | 130 | 110 | 45 | 40 | 35 | 25 |
| 336 | 170 | 160 | 140 | 120 | 60 | 45 | 40 | 28 |
| 360 | 180 | 170 | 150 | 130 | 65 | 48 | 42 | 30 |
| 420 | 200 | 190 | 170 | 150 | 70 | 55 | 45 | 35 |
| 444 | 210 | 200 | 180 | 160 | 75 | 50 | 50 | 37 |
| 480 | 230 | 220 | 200 | 170 | 80 | 60 | 55 | 40 |
| 516 | 250 | 230 | 210 | 180 | 85 | 65 | 55 | 43 |
| 540 | 270 | 260 | 230 | 200 | 90 | 70 | 60 | 45 |
| 600 | 290 | 270 | 240 | 220 | 100 | 75 | 65 | 50 |
| 624 | 300 | 280 | 250 | 230 | 105 | 80 | 70 | 52 |
| 660 | 330 | 310 | 280 | 250 | 110 | 85 | 75 | 55 |
| 720 | 360 | 350 | 320 | 280 | 120 | 90 | 80 | 60 |
| 840 | 390 | 370 | 330 | 300 | 140 | 100 | 90 | 70 |
| 900 | 430 | 400 | 360 | 320 | 150 | 110 | 100 | 75 |
| 960 | 460 | 440 | 410 | 370 | 160 | 120 | 110 | 80 |
| 1020 | 480 | 460 | 400 | 350 | 170 | 125 | 115 | 85 |
| 1080 | 500 | 470 | 420 | 380 | 180 | 130 | 120 | 90 |
| 1200 | 550 | 520 | 470 | 400 | 190 | 140 | 130 | 100 |
| 1250 | 630 | 600 | 540 | 480 | 200 | 150 | 140 | 105 |
| 1300 | 650 | 650 | 500 | 450 | 220 | 160 | 150 | 110 |
| 1350 | 650 | 630 | 570 | 490 | 230 | 170 | 150 | 115 |
| 1400 | 670 | 620 | 550 | 500 | 250 | 180 | 160 | 120 |
| 1500 | 720 | 680 | 600 | 550 | 260 | 190 | 170 | 130 |
| 1550 | 760 | 730 | 650 | 600 | 270 | 200 | 180 | 135 |
| 1600 | 770 | 720 | 680 | 580 | 280 | 210 | 190 | 140 |
| 1700 | 850 | 800 | 720 | 650 | 300 | 220 | 200 | 150 |
| 1800 | 930 | 880 | 780 | 700 | 330 | 240 | 210 | 160 |
| 1900 | 950 | 900 | 800 | 730 | 350 | 250 | 220 | 170 |
| 2000 | 1000 | 950 | 850 | 750 | 370 | 270 | 230 | 180 |
| 2100 | 1100 | 1050 | 950 | 850 | 400 | 280 | 250 | 190 |
| 2200 | 1150 | 1000 | 900 | 800 | 420 | 300 | 260 | 200 |
| 2300 | 1200 | 1100 | 1000 | 900 | 450 | 320 | 270 | 210 |
Working Principle
The PSA nitrogen plant working principle is based on selective adsorption of oxygen and nitrogen molecules. Compressed air is first purified to remove oil, dust, and moisture, ensuring long service life of the carbon molecular sieve. The clean air then enters adsorption towers where oxygen is preferentially adsorbed, while nitrogen flows through as product gas.
Through cyclic pressure changes, the system achieves continuous pressure swing adsorption for nitrogen generation. This mature PSA technology for nitrogen generation guarantees high efficiency, low energy consumption, and consistent nitrogen purity, forming a reliable nitrogen PSA unit for industrial use.
Key Advantages for Laser Cutting
- Energy-Saving and Cost Reduction: Eliminates nitrogen delivery, storage, and evaporation losses with faster ROI for high-consumption laser cutting lines
- Stable Pressure and Purity: Maintains consistent nitrogen quality for improved cutting accuracy and reduced defects
- Onsite Nitrogen Generation: Provides full control over nitrogen supply, reducing downtime and enhancing production continuity
- Modular and Expandable Design: Allows easy capacity expansion with multiple modules forming complete systems
- Safety and Customization: Optional explosion-proof designs and marine-grade materials for specialized applications
Industrial Applications
- Laser cutting systems using PSA nitrogen gas generators
- Sheet metal processing with industrial PSA N2 plants
- Stainless steel and aluminum cutting with high-purity nitrogen generators
- Heavy industry factories utilizing onsite nitrogen gas generation
- Integrated production lines with PSA nitrogen generation systems
- Manufacturing plants sourcing from professional PSA nitrogen plant manufacturers
Conclusion
The Industrial Grade PSA Nitrogen Generator for Laser Cutting is a high-performance system that combines energy efficiency, stability, and cost savings. By utilizing pressure swing adsorption nitrogen generation, this technology delivers reliable nitrogen supply tailored to laser cutting requirements.
Whether deployed as a standalone generator, complete system, or scalable plant, PSA technology remains the optimal solution for manufacturers seeking efficient, stable, and economical onsite nitrogen generation for laser cutting applications.
