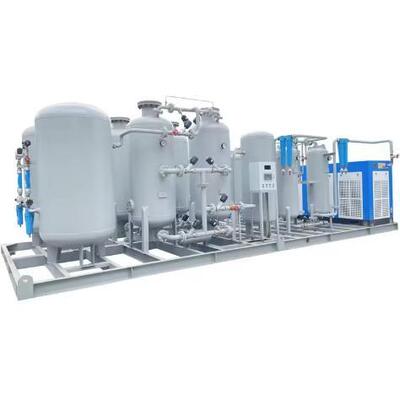

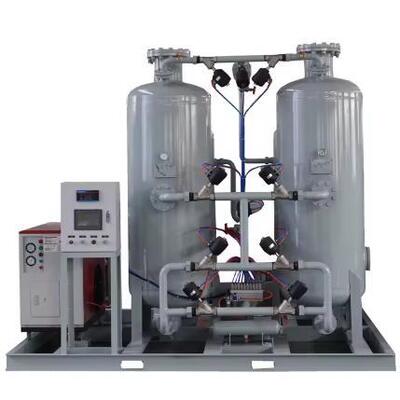

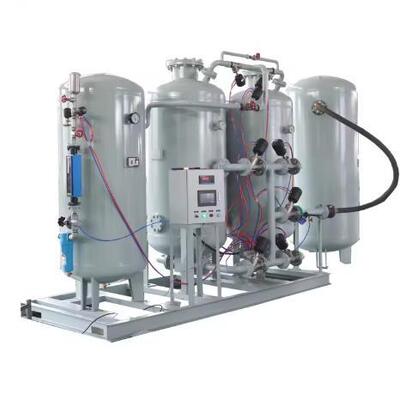

Industrial Nitrogen Production System PSA Oxygen Generator Nitrogen Generator
PSA Nitrogen Generator Overview
A PSA nitrogen generator is an industrial gas separation system that produces nitrogen from compressed air using pressure swing adsorption nitrogen generation technology. Compared with traditional liquid nitrogen supply, a PSA nitrogen generator enables continuous and economical onsite nitrogen generation, reducing transportation, storage, and safety risks. PSA systems are known for their high efficiency, stable purity control, and automated operation. As a core component of modern industrial gas supply, PSA nitrogen generators are widely used across manufacturing, energy, chemical, and metallurgical industries.
Industrial Nitrogen Production System Overview
An Industrial Nitrogen Production System typically integrates both a PSA Nitrogen Generator and a PSA Oxygen Generator, allowing efficient separation of nitrogen and oxygen from ambient air. This integrated Nitrogen Gas Generation Equipment provides flexible gas supply for different industrial processes while maximizing air utilization efficiency.
The PSA Type Nitrogen Gas Generator operates independently or alongside oxygen generation units, forming a complete PSA System N2 Production Factory solution. As a mature PSA nitrogen generation system, it supports continuous operation under demanding industrial conditions and can be configured as a skid-mounted or Container Type PSA Nitrogen Generator for flexible installation.
Core Technical Parameters of PSA Nitrogen Generator
| Capacity (Nm³/h) | Purity (%) | Construction | Dimensions (mm) | Inlet & Outlet | Weight (Kg) |
|---|
| 5 | 95 | Four towers | 570*450*1300 | G1/4; G1/4 | 253 |
| 5 | 99 | Four towers | 580*460*1450 | G1/4; G1/4 | 295 |
| 5 | 99.5 | Four towers | 1000*900*1200 | DN20; G1/2" | 370 |
| 5 | 99.9 | Four towers | 1000*900*1500 | DN20; G1/2" | 431 |
| 5 | 99.99 | Four towers | 1200*1100*1350 | DN20; G1/2" | 535 |
| 5 | 99.99 | Four towers | 1100*1050*1400 | DN20; G1/2" | 493 |
| 5 | 99.999 | Four towers | 1300*1200*1700 | DN25; G1/2" | 698 |
| 5 | 99.999 | Two towers | 1100*600*1600 | DN25; G1/2" | 510 |
| 10 | 95 | Four towers | 1000*900*1400 | DN20; G1/2" | 414 |
| 10 | 99 | Four towers | 1100*1050*1400 | DN20; G1/2" | 485 |
| 10 | 99.5 | Four towers | 1100*1050*1650 | DN20; G1/2" | 510 |
| 10 | 99.9 | Four towers | 1200*1150*1850 | DN20; G1/2" | 624 |
| 10 | 99.9 | Two towers | 1100*600*1600 | DN20; G1/2" | 451 |
| 10 | 99.99 | Four towers | 1400*1300*1600 | DN25; G1/2" | 788 |
| 10 | 99.99 | Two towers | 1200*650*1410 | DN25; G1/2" | 565 |
| 10 | 99.99 | Four towers | 1300*1250*1600 | DN25; G1/2" | 762 |
| 10 | 99.99 | Two towers | 1200*650*1400 | DN25; G1/2" | 552 |
| 10 | 99.999 | Four towers | 1500*1400*1850 | DN25; G1/2" | 1098 |
| 10 | 99.999 | Two towers | 1300*700*1850 | DN25; G1/2" | 838 |
PSA Nitrogen Plant Working Principle
The PSA nitrogen plant working process relies on the selective adsorption characteristics of carbon molecular sieve. Compressed air is first purified to remove oil, dust, and moisture, ensuring long service life of the adsorption media. The clean air then enters adsorption vessels where oxygen molecules are preferentially adsorbed under pressure.
Nitrogen molecules pass through as product gas. When the adsorbent becomes saturated, the pressure is reduced to release the adsorbed oxygen. Two or more adsorption towers operate alternately, ensuring continuous pressure swing adsorption for nitrogen generation. This proven PSA technology for nitrogen generation forms a stable and efficient nitrogen PSA unit suitable for long-term industrial use.
Advantages of PSA Nitrogen Generator in Industrial Systems
Reliable Onsite Nitrogen Generation
By enabling onsite nitrogen gas generation, industries eliminate reliance on nitrogen cylinders or liquid nitrogen deliveries. This improves production continuity and operational safety.
Energy-Saving and Cost Control
As an Energy-saving nitrogen generator, PSA systems optimize compressed air usage and reduce power consumption. Compared with conventional supply methods, the PSA nitrogen generator price offers significant lifecycle cost advantages.
High Purity and Pressure Capability
The system can function as a High-purity nitrogen generator or a high pressure nitrogen generator, meeting requirements for inerting, blanketing, purging, and pressure testing.
Modular and Scalable Design
The Modular nitrogen generator structure allows easy expansion. Multiple units can be combined into a Module PSA Nitrogen Plant or a large PSA N2 plant as nitrogen demand increases.
Safety and Special Environment Adaptation
For hazardous areas, systems can be designed as Explosion-proof nitrogen generator units. Offshore or shipboard installations are supported by Marine PSA Nitrogen Generator configurations.
Industrial Applications of PSA Nitrogen Production System
- Metallurgical processing using PSA nitrogen gas generator
- Chemical and petrochemical plants with PSA generator
- Electronics manufacturing supported by High-efficiency PSA Nitrogen Generator
- Energy and power plants using nitrogen PSA systems
- Central gas supply from a PSA nitrogen plant manufacturer
- Integrated production lines using PSA nitrogen generation system
These applications demonstrate the versatility of PSA nitrogen plants across multiple industries.
Selecting a PSA Nitrogen Generator Manufacturer
Choosing reliable PSA nitrogen generator manufacturers is essential for industrial gas systems. A professional PSA nitrogen gas plant manufacturer should offer:
- Proven PSA system for nitrogen engineering capability
- High-quality carbon molecular sieve
- Stable PSA unit for nitrogen production design
- Compliance with international standards
- Long-term technical support and maintenance services
A qualified PSA System N2 Production Factory ensures safety, stability, and efficiency throughout the equipment lifecycle.
Conclusion
The Industrial Nitrogen Production System with PSA Oxygen Generator and Nitrogen Generator represents an efficient and sustainable approach to industrial gas supply. By utilizing pressure swing adsorption nitrogen generation, this PSA Type Nitrogen Generating Plant delivers reliable nitrogen with controlled purity, pressure, and flow.
Whether deployed as a standalone PSA nitrogen generator, an integrated PSA Nitrogen Generating System, or a large-scale PSA nitrogen plant, PSA technology remains the preferred solution for industries seeking safe, economical, and continuous onsite nitrogen generation.
