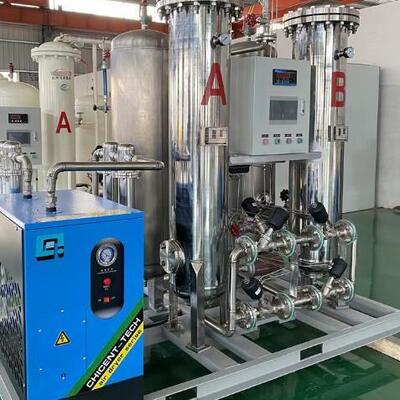

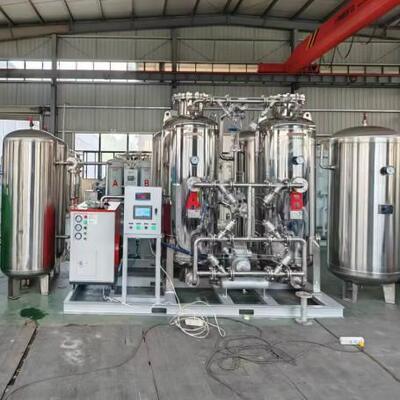

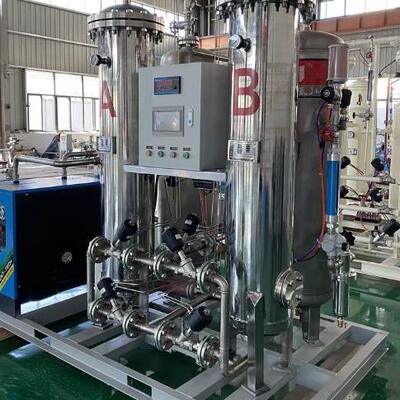

Marine PSA Nitrogen Generator for LNG Carrier Insulation Space Inerting
The Marine PSA Nitrogen Generator is a specialized Nitrogen Gas Generation Equipment designed for LNG carriers, offshore vessels, and marine engineering platforms. It is primarily used for insulation space inerting, cargo tank protection, pipeline purging, and fire prevention.
For LNG carriers, high-purity nitrogen is essential to maintain an oxygen-free environment in insulation spaces and prevent the formation of explosive gas mixtures. This High-purity nitrogen generator provides continuous nitrogen supply with controlled purity and pressure, ensuring operational safety during navigation, loading, unloading, and maintenance.
As a complete PSA Nitrogen Generating System, the unit integrates air compression, marine-grade air purification, adsorption separation, and intelligent control into a compact structure suitable for shipboard installation.
Core Technical Parameters
| Capacity (Nm³/h) |
Purity (%) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Inlet Size (DN) |
Outlet Size (DN) |
| 5 | 99 | 1000 | 1000 | 1640 | 380 | DN15 | DN15 |
| 99.9 | 1000 | 1000 | 1640 | 380 | DN15 | DN15 |
| 99.99 | 1300 | 1100 | 1400 | 560 | DN15 | DN15 |
| 99.999 | 1300 | 1100 | 1400 | 560 | DN15 | DN15 |
| 20 | 99 | 1450 | 1300 | 1450 | 700 | DN20 | DN15 |
| 99.9 | 1500 | 1400 | 2030 | 900 | DN25 | DN20 |
| 99.99 | 1500 | 1500 | 1700 | 1000 | DN25 | DN15 |
| 99.999 | 1600 | 1450 | 1950 | 1400 | DN25 | DN15 |
| 50 | 99 | 1600 | 1400 | 2100 | 1100 | DN25 | DN20 |
| 99.9 | 1700 | 1500 | 2100 | 1300 | DN25 | DN15 |
| 99.99 | 1700 | 1550 | 2160 | 1500 | DN40 | DN25 |
| 99.999 | 2000 | 1800 | 2500 | 2300 | DN40 | DN40 |
| 100 | 99 | 1600 | 900 | 2230 | 1050 | DN40 | DN50 |
| 99.9 | 1800 | 1750 | 2250 | 1400 | DN40 | DN25 |
| 99.99 | 2100 | 1950 | 2250 | 2700 | DN40 | DN40 |
| 99.999 | 2200 | 1300 | 2900 | 3300 | DN65 | DN40 |
| 150 | 99 | 1800 | 1150 | 2200 | 1400 | DN40 | DN25 |
| 99.9 | 2100 | 1200 | 2250 | 2200 | DN40 | DN40 |
| 99.99 | 2200 | 1300 | 2700 | 3200 | DN50 | DN40 |
| 99.999 | 2200 | 1500 | 3100 | 4400 | DN80 | DN50 |
| 200 | 99 | 2000 | 1150 | 2300 | 1700 | DN40 | DN25 |
| 99.9 | 2100 | 1200 | 2500 | 2200 | DN40 | DN50 |
| 99.99 | 2200 | 1400 | 2850 | 4100 | DN65 | DN50 |
| 99.999 | 2200 | 1500 | 3000 | 4100 | DN65 | DN50 |
| 300 | 99 | 2200 | 1250 | 2620 | 2500 | 50 | 40 |
| 99.9 | 2100 | 1200 | 2500 | 2240 | 50 | 40 |
| 99.99 | 2200 | 1500 | 3400 | 4200 | 80 | 50 |
| 99.999 | 2200 | 1500 | 3400 | 4260 | 80 | 80 |
| 400 | 99 | 2200 | 1300 | 2900 | 3350 | 65 | 40 |
| 99.9 | 2200 | 1500 | 3050 | 4200 | 65 | 50 |
| 99.99 | 2200 | 1500 | 3400 | 4300 | 80 | 80 |
| 500 | 99 | 2200 | 1400 | 2850 | 4100 | 65 | 50 |
| 99.9 | 2200 | 1500 | 3400 | 4200 | 80 | 50 |
| 99.99 | 2200 | 1500 | 3400 | 4200 | 80 | 80 |
| 800 | 99 | 2200 | 1500 | 3400 | 4300 | 80 | 80 |
| 99.9 | 2200 | 1500 | 3400 | 4200 | 80 | 80 |
| 1200 | 99 | 2200 | 1500 | 3400 | 4300 | 80 | 80 |
PSA Nitrogen Plant Working Principle
The PSA nitrogen plant working principle is based on the selective adsorption of oxygen molecules using carbon molecular sieve. Ambient air is compressed and passes through a marine-grade pretreatment system to remove oil, moisture, and particulate contaminants.
The purified air enters adsorption vessels where oxygen is adsorbed under pressure, while nitrogen passes through as product gas. When the adsorbent reaches saturation, the pressure is reduced, releasing the adsorbed oxygen. By alternating between adsorption and regeneration cycles, the system achieves continuous pressure swing adsorption for nitrogen generation.
This proven PSA technology for nitrogen generation forms a highly reliable nitrogen PSA unit, capable of long-term operation in marine environments.
Advantages of Marine PSA Nitrogen Generator for LNG Carriers
High-Purity Nitrogen for Insulation Space Inerting
LNG carriers require extremely low oxygen levels to prevent fire and explosion risks. A High-purity nitrogen generator ensures effective inerting of insulation spaces and cargo systems.
Reliable Onsite Nitrogen Generation
With onsite nitrogen gas generation, vessels are no longer dependent on nitrogen cylinders or shore-based supply. This significantly enhances operational autonomy and safety at sea.
Energy-Saving and Cost Efficiency
As an Energy-saving nitrogen generator, the PSA system minimizes power consumption while delivering continuous nitrogen. Over the vessel lifecycle, the PSA nitrogen generator price offers clear economic advantages compared with liquid nitrogen logistics.
Modular and Marine-Optimized Design
The Modular nitrogen generator design allows easy installation in limited engine room space. Multiple modules can be combined into a Module PSA Nitrogen Plant or PSA N2 plant according to vessel size and nitrogen demand.
Explosion-Proof and Corrosion-Resistant
Marine environments require strict safety standards. The system is engineered as an Explosion-proof nitrogen generator with corrosion-resistant materials, making it suitable as a dedicated Marine PSA Nitrogen Generator.
Applications of PSA Nitrogen Generator on LNG Carriers
- Insulation space inerting using PSA nitrogen gas generator
- Cargo tank protection with PSA generator
- Pipeline purging and drying supported by nitrogen PSA systems
- Fire prevention systems using PSA nitrogen generation system
- Offshore vessels equipped with Marine PSA Nitrogen Generator
- Centralized onboard nitrogen supply from a professional PSA nitrogen plant manufacturer
These applications highlight the importance of PSA nitrogen plants in marine safety systems.
Selecting a Marine PSA Nitrogen Generator Manufacturer
Choosing reliable PSA nitrogen generator manufacturers is critical for LNG carriers and marine projects. A qualified PSA nitrogen gas plant manufacturer should provide:
- Proven PSA system for nitrogen marine engineering experience
- Marine-class certified components
- Stable PSA unit for nitrogen production design
- Explosion-proof and corrosion-resistant solutions
- Global service and technical support capability
A professional PSA System N2 Production Factory ensures long-term reliability, safety, and compliance with marine regulations.
Conclusion
The Marine PSA Nitrogen Generator for LNG Carrier Insulation Space Inerting is a highly reliable and efficient PSA Nitrogen Generating System designed for demanding marine environments. By utilizing pressure swing adsorption nitrogen generation, this PSA Type Nitrogen Generating Plant delivers continuous, high-purity nitrogen essential for LNG carrier safety.
Whether installed as a standalone PSA nitrogen generator, a modular PSA N2 Plant Nitrogen Generator, or a fully integrated onboard PSA nitrogen plant, PSA technology remains the most effective solution for safe, economical, and continuous onsite nitrogen generation in LNG and marine applications.
