Product Details:
|
| Outer Material: | Stainless Steel | Product Name: | Liquid Oxygen Cylinder |
|---|---|---|---|
| Key Selling Points: | Long Service Life | Core Components: | Pressure Vessel |
| Machinery Test Report:: | Provided | Max Working Pressure(MPa): | 1.37 MPa |
| Video Outgoing-inspection: | Provided | Showroom Location: | None |
| MOQ: | 2 Set | ||
| High Light: | 195 liter high pressure liquid nitrogen tank,Stainless Steel high pressure liquid nitrogen tank,Liquid O2 dewar cylinder |
||

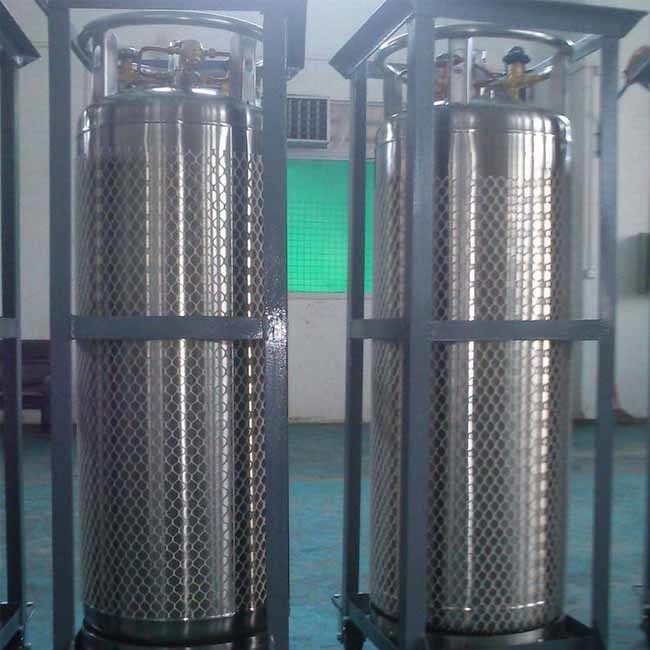

Support Customization Industrial Stainless Steel Cryogenic Liquid O2 Dewar Cylinder
Description
Support Customization Industrial Stainless Steel Cryogenic Liquid O2 Dewar Cylinders are multi-layer insulated, removable cryogenic liquid containers that can be used to store and transport liquid gases such as liquefied oxygen, argon, nitrogen, natural gas and carbon dioxide. The whole can be applied to the gas supply device and centralized gas supply to smaller pipelines.
Parameter
| Product specification | 175 | 195 | 210 | 375 | 410 | 450 |
| Dimension(D*H) | 508*1530 | 508*1562 | 508*1747 | 900*1632 | 900*1738 | 900-1857 |
| Working prissure(Mpa) | 1.40/2.00/2.88 | 1.40/3.17 | ||||
| Take off pressure of safety valve(Mpa) | 1.60/2.40/3.10 | 1.60/3.80 | ||||
| Bursting pressure(Mpa) | 2.60/3.60/5.17 | 2.60/5.70 | ||||
| Capacity(L) | 175 | 195 | 210 | 375 | 410 | 450 |
| Effective capacity(L) | 166 | 185 | 197 | 357 | 390 | 427 |
| Evaporation rate(LN2) | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% |
| Weight(Kg) | 111 | 117 | 123 | 200 | 212 | 234 |
| Max filling volume(Kg) | ||||||
| Oxygen(Kg) | 172 | 191 | 205 | 369 | 404 | 442 |
| Nitrogen(Kg) | 121 | 135 | 145 | 260 | 284 | 311 |
| Argon(Kg) | 208 | 233 | 250 | 447 | 488 | 535 |
| LNG(kg) | 73 | 72 | 88 | N/A | N/A | N/A |
application:
1. Support Customization Industrial Stainless Steel Cryogenic Liquid O2 Dewar Cylinder can be filled with medical liquid oxygen as a device to provide LO2;
2. Industrial metal cutting, welding, heating and oxygenating;
3. Filled with liquid argon, used for argon protection occasions such as argon arc welding;
4. Liquid nitrogen filling with high nitrogen protection, food medicine, biology and superconductivity and other fields.
Why choose us:
Strong technical force, perfect quality assurance system. The company invests a large amount of revenue annually in the development and testing of new technologies and products. Strive for Standard Enterprise in Low Temperature Industry.
