Product Details:
|
| Condition: | New | Dimension(L*W*H): | Customer'demand |
|---|---|---|---|
| Warranty: | 1 Year | Water Capacity: | 175l |
| Test Pressure: | 2.62Mpa | Dimension: | 505*1530mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Evaporation Rate: | <2.10% |
| Liquid Level Gauge: | Float Rod | ||
| High Light: | 210 liter liquid nitrogen tank pressure building,500l liquid nitrogen tank pressure building,164l dewar tanks |
||

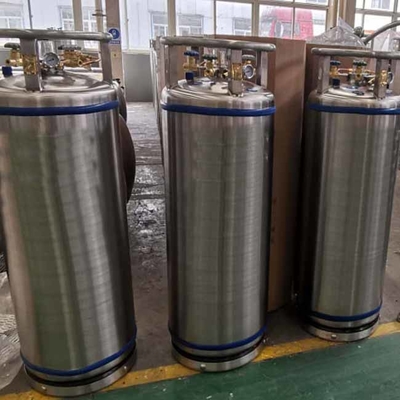

Customization164L-500L Cryogenic Liquid Oxygen Nitrogen Dewar Cylinder
Description
Our cryogenic dewars have the characteristics of low evaporation rate, long vacuum shelf life, convenient operation, high liquid utilization rate, and built-in carburetor, which directly vaporizes liquid gas into the gas supply, making the gas supply more pure. Cryogenic Dewars can be widely used to store and transport LAr, LO2, LN2, LCO2 and LNG, etc., and can also be used to supply liquid or gaseous gases, cryogenic liquids, etc.
Parameter
| Model |
Working pressure (MPa) |
Outside size (Diameter*high) (mm) |
Volume (L) |
Effective volume (L) |
Max filling weight(kg) | ||
| LO2 | LN2 | LAr | |||||
| DPL-175 | 1.4 | 508*1530 | 175 | 166 | 172 | 121 | 208 |
| DPL-175H | 2.01 | ||||||
| DPL-175X | 2.88 | ||||||
| DPL-195 | 1.4 | 508*1625 | 195 | 185 | 191 | 135 | 233 |
| DPL-195H | 2.01 | ||||||
| DPL-195X | 2.88 | ||||||
| DPL-210 | 1.4 | 508*1747 | 210 | 197 | 205 | 145 | 250 |
| DPL-375 | 1.4 | 750*850*165 | 375 | 356 | 405 | 288 | 502 |
| DPL-375X | 3.17 | ||||||
| DPL-410 | 1.4 | 750*850*1770 | 410 | 389 | 443 | 315 | 548 |
| DPL-410X | 3.17 | ||||||
| DPL-450 | 1.4 | 750*850*1900 | 450 | 427 | 487 | 346 | 602 |
| DPL-450X | 3.17 | ||||||
Product advantages:
1. The Dewar bottle can be kept warm for a long time, realizing the advantages of high vacuum degree, low exhaust frequency, and two-year vacuum guarantee.
2. High safety: no leakage during use. Dewar racks are suitable for special installation requirements of LNG.
car and adapt to any complex conditions.
3. High stability: the output pressure of the gas cylinder of the gas supply system and the matching degree of the valve are more stable.
FAQ
Q:Application of insulated welded cylinders (Dewars)?
A:AUYAN supplies dewars to safely contain liquefied gases such as nitrogen, oxygen, argon and carbon dioxide, which are for industry and commerce use. These gases are stored at extremely low temperatures and in a liquid state.
Q:How many different specifications of insulated welded cylinders (Dewars) does have?
A:We produce Insulated Welded Cylinders (Dewars) with 6 different specifications: 175 L (Net Capacity 161 L, 67 kg*), 195 L (Net Capacity 179 L, 75 kg*), 210 L (Net Capacity 193 L, 81 kg*), 410 L (Net Capacity 377 L, 158 kg*), 450 L (Net Capacity 414 L, 173 kg*), 499 L (Net Capacity 459 L, 192 kg*)
Q:What is the warranty of your Products?
A:The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1 year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.
