Product Details:
|
| Warranty: | 1 Year | Nominal Volume: | 175L |
|---|---|---|---|
| Working Pressure: | 1.37Mpa | Net Weight: | 118kg |
| Rate Of Evaporation Liquid Nitrogen: | 2.1% | Capacity: | 175L |
| After-sales Service Provided:: | Overseas Third-party Support Available, Online Support | Opening Pressure Of Safety Valve: | 1.59Mpa |
| Liquid Meter: | Float Type Sensor | Dimension(L*W*H): | 505x1530 |
| High Light: | 175L Cryogenic Dewar Cylinder,1.37mpa Cryogenic Dewar Cylinder,2.3mpa dewar oxygen tanks |
||

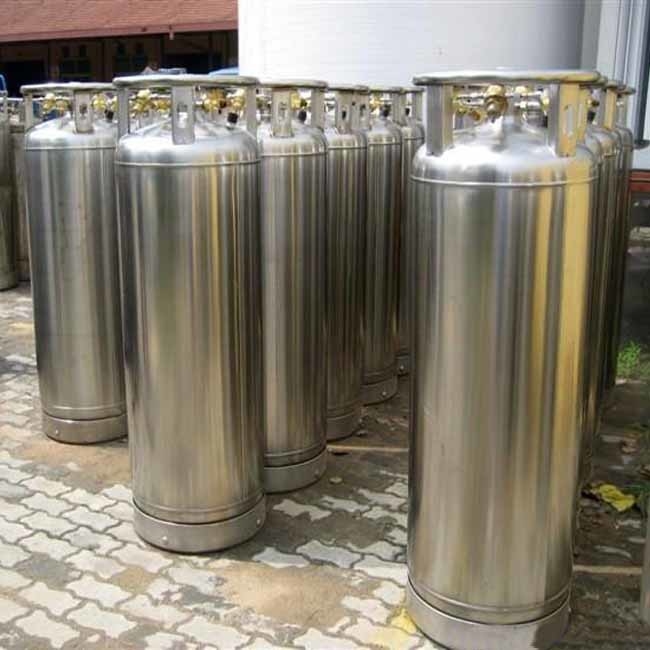

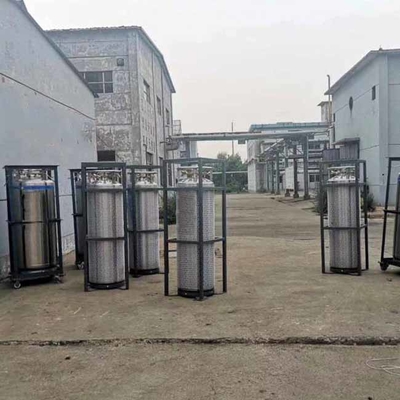

Large Production Industrial Gas Cryogenic Liquid Oxygen Dewar Cylinder
Description
Cryogenic Dewar is a high-performance vacuum insulated gas cylinder, which is a kind of small pressure vessel and can be used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas, etc. Dewars can be used for road transport of cryogenic liquids as well as for on-site storage and supply. The advantage is that it has a long storage time and a wide range of applications.
Specifications
| Type | 450-175-1.4 | 450-175-2.0 | 450-175-2.3 | ||||||||||
| Nominal capacity(L) | 175 | 175 | 175 | ||||||||||
| Nominal pressure(Mpa) | 1.4 | 2 | 2.3 | ||||||||||
| Design temperature(℃) | -196 | -196 | -196 | ||||||||||
| Filling medium | LO2 | LN2 | LAr | LNG | LO2 | LN2 | LAr | LCO2 | LNG | LO2 | LN2 | LAr | LCO2 |
| Storage capacity/gas(Nm3) | 132 | 107 | 131 | 106 | 132 | 107 | 131 | 93 | 106 | 132 | 107 | 131 | 93 |
| Max. filling weight(kg) | 189 | 134 | 234 | 71 | 189 | 134 | 234 | 183 | 71 | 189 | 134 | 234 | 183 |
| Type | 450-195-1.4 | 450-195-2.0 | 450-195-2.3 | ||||||||||
| Nominal capacity(L) | 195 | 195 | 195 | ||||||||||
| Nominal pressure(Mpa) | 1.4 | 2 | 2.3 | ||||||||||
| Design temperature(℃) | -196 | -196 | -196 | ||||||||||
| Filling medium | LO2 | LN2 | LAr | LNG | LO2 | LN2 | LAr | LCO2 | LNG | LO2 | LN2 | LAr | LCO2 |
| Storage capacity/gas(Nm3) | 148 | 120 | 147 | 118 | 148 | 120 | 147 | 104 | 118 | 148 | 120 | 147 | 104 |
| Max. filling weight(kg) | 211 | 150 | 261 | 79 | 211 | 150 | 261 | 204 | 79 | 211 | 150 | 261 | 204 |
| Type | 450-210-1.4 | 600-360-2.0 | 450-210-2.3 | ||||||||||
| Nominal capacity(L) | 210 | 360 | 210 | ||||||||||
| Nominal pressure(Mpa) | 1.4 | 2 | 2.3 | ||||||||||
| Design temperature(℃) | -196 | -196 | -196 | ||||||||||
| Filling medium | LO2 | LN2 | LAr | LO2 | LN2 | LAr | LCO2 | LNG | LO2 | LN2 | LAr | LCO2 | |
| Storage capacity/gas(Nm3) | 158 | 127 | 157 | 273 | 221 | 270 | 191 | 218 | 158 | 127 | 157 | 111 | |
| Max. filling weight(kg) | 226 | 160 | 279 | 390 | 277 | 482 | 376 | 146 | 226 | 160 | 279 | 218 | |
Application
1. Rich Oxygen for combustion in glass industry
2.Metal cutting and welding.
3.Hostipal and Medical industry
4.Supply Oxygen for fish car
5.Gas displacement in container and pipelines
6.Medical refrigerants
7.Using for public facilities and civil life in urban
8.Using for coal change natural gas boiler combustion
9.Mineral cracking equipment
10.Using for truck convert oil to liquefied natural gas
FAQ
1. Is Safety for dewar Flask?
Yes, relief valve will be closed when the pressure recover to the safe value.
2. Is it normal to have frosting on the bottomof the dewar flask.
Yes, It's normal.
3. How long the dewar flask's warranty period?
Five years for vacuum part.
4. What's international certificate for your dewar flask?
ASME certificate.
