Product Details:
|
| Core Components: | Pressure Vessel, Pump | Capacity: | Customized |
|---|---|---|---|
| Volume (m³): | 5-200cbm | Outer Material: | Q345R |
| Max Working Pressure(MPa): | 1.6 MPa | Warranty: | 1 Year |
| Keyword: | Lpg Gas Station | Name: | Lpg Gas Filling Plant |
| Applications: | Car/cylinder Filling | Video Outgoing-inspection: | Provided |
| High Light: | 2.5 ton LPG Gas Filling Station,5000 Liters LPG Gas Filling Station,5 cubic meter LPG vehicle filling stations |
||

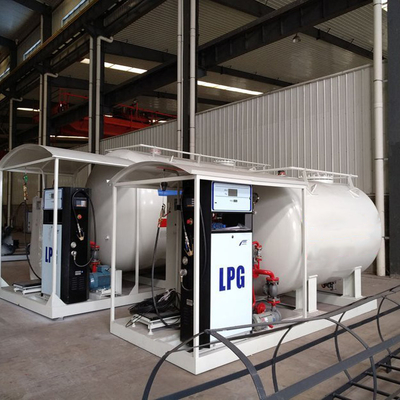

2.5ton 5000Liters LPG Gas Filling Skid Station
Description
LPG skid-mounted station is an integrated equipment for liquefied petroleum gas ground filling. It is a product of comprehensive design based on factors such as terrain, site area, construction cost, and convenience of operation. The advantages are: the station construction period is short, the filling operation is simple, and the site requirements Not high, portable and flexible. For the installation of the skid-mounted station, conventionally, the requirements and specifications of the customer can be produced by the storage tank manufacturer according to the requirements. The integrated equipment can be transported to the customer's gas station to realize loading, unloading, inversion and filling.
Parameter
|
Parameter of LPG vessel PS: we have various models and specifications with different capacity |
|
| Product Name | LPG storage tank/LPG skid mounted filling station |
| Material | Alloy steel Q345R(equal to SA537CL1 |
| Application | Storage LPG gas/ filling cylinder and car |
| Medium | Lpg gas/ propane |
| Design Pressure | 1.77Mpa (256PSI) |
| Working Pressure | 1.6Mpa((232PSI) |
| The effective volume | 5000-50000 Litrs (3-100 tons) |
Structure of LPG skid-mounted station:
LPG ground filling integrated equipment includes - LPG storage tanks, metal bases, pipes, valve groups, hydrocarbon pumps, filling tables, filling equipment, and other auxiliary ground filling and storage equipment composed of safety facilities. The hydrocarbon pump is equivalent to the brain of the whole equipment, mainly used for loading and unloading the truck between the storage tank and the tanker, and the equipment for conveying liquefied gas during backfilling and filling; the valve group is similar to the internal organs of the whole equipment, which is the unloading, filling and residual liquid. Safety assurance during recycling, startup and closing of the complex system; filling equipment includes: filling electronic scales, filling pumps and other similar equipment hands and feet, which are the main equipment tools in the filling process; the filling table must be fireproof on the surface Flowers, anti-static treatment, made of brick concrete and used as a platform for filling cylinders.
Precautions
The design of the components of the LPG integrated filling station must comply with the relevant regulations, and the manufacturing must comply with the relevant regulations of the "Steel Pressure Vessel". At the same time, the safety supervision department will regularly inspect and supervise the filling safety to avoid major accidents caused by equipment problems or potential safety hazards.
