Product Details:
|
| Place Of Origin: | Henan, China | Model Number: | 5m3 Lpg Gas Cylinder Skid Filling Station |
|---|---|---|---|
| Dimension(L*W*H): | 6980*1800*2200mm | Product Name: | Lpg Gas Cylinder Skid Filling Station |
| Application: | LPG Filling/storage | Design Pressure: | 1.77 MPa |
| Other Name: | LPG Mobile Filling Station | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Working Temperatur: | -19℃ To 50℃ |
| High Light: | Horizontal LPG Gas Filling Station,20000 liters LPG Gas Filling Station,380v LPG service station |
||

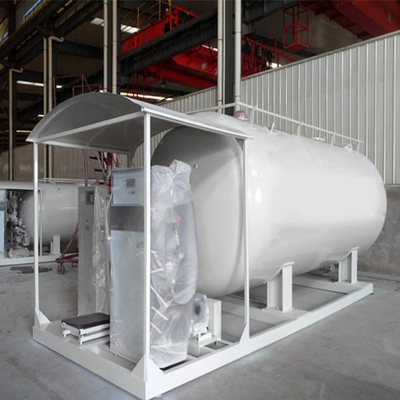

20000liters Horizontal Mobile LPG Gas Filling Skid Station
Description
20000liters Horizontal Mobile LPG Gas Filling Skid Station is ground filling integrated equipment, its main structure consists of storage tank, metal base, pipe, valve, pump, filling platform, filling equipment, and other auxiliary ground filling and storage equipment composed of safety facilities.
Parameter
| 20000liters Horizontal Mobile LPG Gas Filling Skid Station | ||||||||
| TAKN VOLUME(m³) | 10m³ | 12m³ | 20m³ | 25m³ | 32m³ | 40m³ | 50m³ | 63m³ |
| Filling Weight (kg) | 4035 | 4850 | 8070 | 10090 | 12920 | 16410 | 20180 | 25420 |
| Design Pressure (Mpa) | 1.61 | |||||||
| MAWP(Mpa) | 1.77 | |||||||
| Design Temperature (℃) | -20℃-50 ℃ | |||||||
| Shell /Head Thickness (mm) | 10mm/10mm | 10mm/10mm | 12mm/13mm | 12mm/13mm | 12mm/13mm | 13mm/14mm | 13mm/14mm |
13mm/ 14mm |
| Tank Material | Q345R | |||||||
| Application | 1. Scale for bottling cylinder 2. LPG dispenser for fueling car 3. LPG pump or compressor for truck |
|||||||
| Accessories | Including pressure gauge, thermometer, float level gauge, ball valves, safety valves, safety return valves, check valves, filter, globe valves, processing pipes, explosion-proof light, alarm and gas leakage detection system, explosion-proof cabinet for lighting and power distribution etc. | |||||||
| Shipment method | Volume above 20m³ will be shipped by bulk vessel , below 20m³ will be shipped by container vessel | |||||||
Specifications
Filling medium: liquefied petroleum gas (propane)
Design temperature: -20～50℃
Design pressure: 1.77 MPa
Traffic: choose according to user requirements
Power supply requirements: 220V or 380V

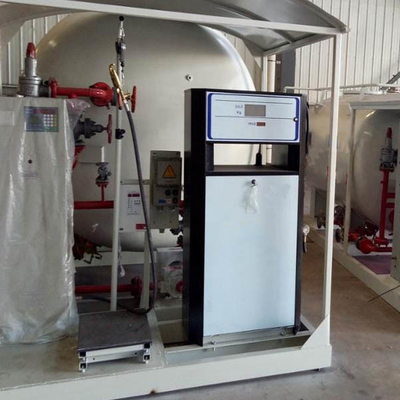

LPG skid-mounted station comes standard with: hydrocarbon pump, motor, pulley, base, alarm device, frequency converter, control box, spray pipe, float level gauge, pressure gauge, thermometer, safety valve, safety return valve, filter , check valve, ball valve, globe valve, pipeline safety valve, unloading pipe, shockproof pipe, flange, metal pad, 8.8 bolts, electronic filling scale, pipeline, etc.
Main equipment parameters:
LPG pump: YQB15-5, 1 set
Motor: 5.5KW 380V, 1 set
Electronic filling scale: BSC-150, 1 set, can fill 50-150kg gas cylinder, with printed receipt
Inflatable: 3 sets, suitable interface can be matched according to user requirements
Anti-vibration hose: 2 each for liquid phase and gas phase, stainless steel
Liquid level gauge: magnetic flap type, float type can be
Thermometer: M33x2
Pressure gauge: M20x1.5
Spray device: DN15 galvanized pipe surrounds the tank body, and the spray can be adjusted by itself when the temperature is high, effectively reducing the temperature
Sunshade: Made of 4mm thick aluminum plate to prevent the storage tank from being overheated.
Pipes, valves, flanges, standard parts, etc. are arranged according to the actual situation.
FAQ
1. Can your company completely customize products for me?
We can provide custom designed products to meet any of your needs.
2.What is the lead time?
Many models are available in stock and it takes 7-30 days to order the product
3.What's the minimum order quantity? What about the mode of transportation?
Minimum order quantity: 1 unit.
Transport mode: ro/ro, bulk carrier, 20GP, 40GP/HQ and other container types are available.
