Product Details:
|
| Working Temperatur: | -19℃ To 50℃ | Certificates: | ISO |
|---|---|---|---|
| Filling Medium: | Propane Lpg Liquid Propane Gas,cooking Gas | Allocation: | Two LPG Pump And Two LPG Filling Scale |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Other Name: | LPG Mobile Filling Station |
| Design Pressure: | 1.77 MPa | Application: | LPG Filling/storage |
| Place Of Origin: | Henan, China | Color: | White |
| High Light: | 5m3 LPG Cylinder Filling Station,Q370R LPG Cylinder Filling Station,2 filling scale LPG pump station |
||
5m3 Lpg Gas Cylinder Skid Filling Station Equipment
Description

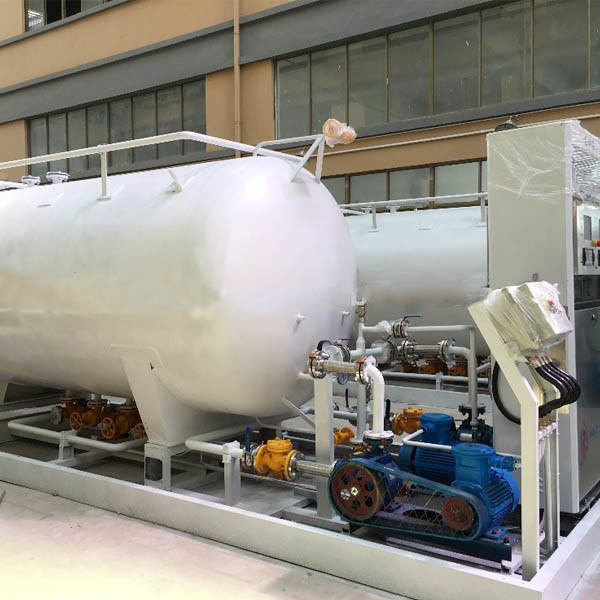

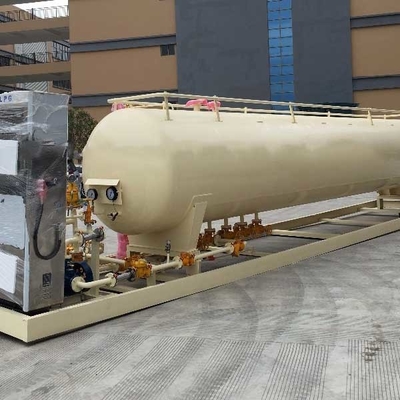

5m3 Lpg Gas Cylinder Skid Filling Station Equipment is also known as liquid petroleum cooking gas skid station. The whole is an integrated movable small gas filling station. The skid-mounted station is usually equipped with liquid level gauge, pressure gauge, temperature gauge, safety valve, filling scale, distributor and other accessories. The overall function is complete and the operation is safe and convenient.
Parameter
| Item | Unit | Specification | |
| Loading object | CLW25-12-12 | ||
| Material | Propane Gas | ||
| Designed loading Parameter | Option | Q345R, 16MnIII, Q370R | |
| Kg/m3 | 420~ 500 | ||
| Dimension | mm | 7594*2124*2714 | |
| Net Weight | Kg | 24960 | |
| Designed Pressure | Mpa | 1.77 | |
| Max Working Pressure | Mpa | <=1.6 | |
| Designed Temperature | C | -20~50 | |
| Volume | m3 | 25 | |
| Body thick | mm | 12 | |
| Cover thick | mm | 12 | |
| Man Hole | mm | 450 | |
| Top Safety Valve Port | mm | 80 | |
| Life Year | Year | 10 | |
| Input and output | |||
| Liquid input Port | mm | DN50 ( 2 Inch) | 2.5Mpa |
| Liquid Output Port | mm | DN50 (2 Inch) | 2.5Mpa |
| Bottom Air gas input Port | mm | DN50 (2 Inch) | 2.5Mpa |
| Waste Liquid Output Port | mm | DN50 (3 Inch) | 2.5Mpa |
| Top Gas Let Out Port | mm | DN50 (3 Inch) | 2.5Mpa |
| Liquid Level Indicator Port | mm | DN20 | 2.5Mpa |
| Essential Device for option | |||
| Safety Valve, Temperature Gague, Pressure Gauge | |||
| Option~ flange | |||
| Production Standard | |||
| China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard | |||
| Designed Valid Year, at least 10 year | |||
Precautions
The pump of the 5m3 Lpg Gas Cylinder Skid Filling Station Equipment is used for loading and unloading the truck between the storage tank and the tanker, and the equipment for transporting liquefied gas during backfilling and filling; the valve is the safety guarantee for unloading, filling and residual liquid recovery, and the start-up of the complex system The filling equipment includes: filling electronic scales, filling guns, etc., which are the main equipment tools in the filling process of the LPG skid-mounted station; the filling station must be treated with anti-spark and anti-static treatment.
Accessories
After the 5m3 Lpg Gas Cylinder Skid Filling Station Equipment works for a period of time, the remaining liquid in the tank can be loaded into the transport vehicle for easy opening and inspection. Due to the presence of certain impurities in the medium, long-term operation of the tank bottom will accumulate heavier specific (such as water) liquids. The LPG skid-mounted station can effectively remove such impurities in the tank through the sewage outlet.
The top of the tank is equipped with a special emptying valve group, which can easily empty the residual gas in the tank during maintenance.
When one mechanical pump dedicated to filling and unloading is deactivated, another can replace its work.
