Product Details:
|
| Machinery Test Report: | Provided | Core Components: | Other |
|---|---|---|---|
| Key Selling Points: | Long Service Life | Product Name: | Storage Tank |
| Application: | Petrochemical /industry | Advantage: | Anticorrosive |
| After-sales Service Provided: | Online Support | Applicable Industries:: | Manufacturing Plant, Other |
| Warranty Of Core Components: | Not Available | Capacity: | High-capacity |
| High Light: | 1320 gallon Fuel Oil Storage Tank,5280 gallon Fuel Oil Storage Tank,DN65 Oil Reserve Tank |
||

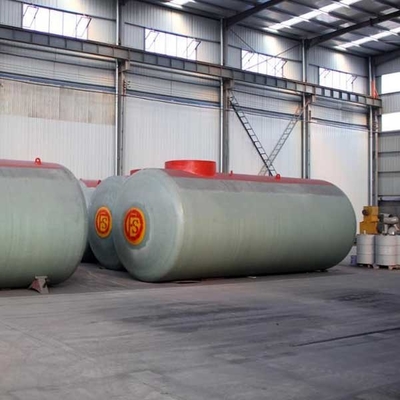

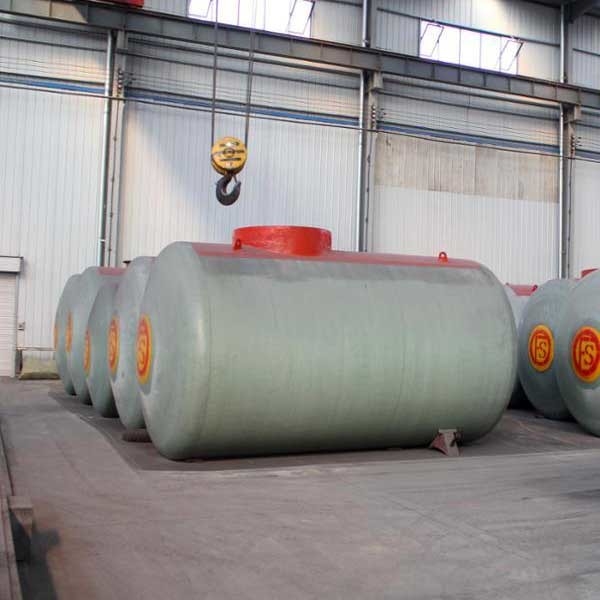

Horizontal SF Fiber Glass Double Wall Underground Fuel Oil Storage Tank
Description
The Horizontal SF Fiber Glass Double Wall Underground Fuel Oil Storage Tank can also be called a diesel storage tank or a diesel tank. The whole oil tank is made of carbon steel, and the structure adopts a horizontal horizontal type that saves installation time, which can save time and energy in the installation process. The oil tank as a whole is composed of oil inlet and outlet, air vents and manhole drainage holes.
Parameter
| Tank capacity | Manhole diameter | Oil discharge | Dimension Length*Diameter(mm) |
| 5 CBM | 580mm | DN65 | 2700*1600 |
| 10 CBM | 580mm | DN65 | 3400*2000 |
| 20 CBM | 580mm | DN65 | 5600*2200 |
| 30 CBM | 580mm | DN65 | 6000*2600 |
| 40 CBM | 580mm | DN65 | 6800*2800 |
| 50 CBM | 580mm | DN65 | 8400*2800 |
Feature
The Horizontal SF Fiber Glass Double Wall Underground Fuel Oil Storage Tank has the characteristics of safety, environmental protection and economical practicability. The overall double-layer oil tank adopts anti-static fire protection and other protective measures, which can ensure the safe operation of the oil tank during use. In addition, the outer FRP layer of the oil tank can prevent the leakage of oil products from causing pollution of the soil and water source environment, etc., and the state of the oil tank is monitored throughout the day by using a leak detector in the middle of the double layer.
our company
We are a professional company specializing in the production of pressure vessel equipment. Through professional technology development and introduction of talents and technologies, the company relies on advanced technology, reliable quality and perfect service, and has passed the management system certification. The products are sold all over the world and won The support and trust of new and old customers.
