Product Details:
|
| Marketing Type: | Ordinary Product | Warranty Of Core Components:: | Not Available |
|---|---|---|---|
| Capacity:: | 30000~50000L | Warranty:: | Unavailable |
| Tank Thickness: | 6mm | Manhole Number: | 2pcs |
| Manhole Inner Diameter: | 630mm | Under Tank Plate Thickness: | 5mm |
| After Warranty Service: | Online Support | Core Components: | Pressure Vessel |
| High Light: | Fiberglass Steel Fuel Oil Storage Tank,30000l Fuel Oil Storage Tank,50000l industrial oil tank |
||

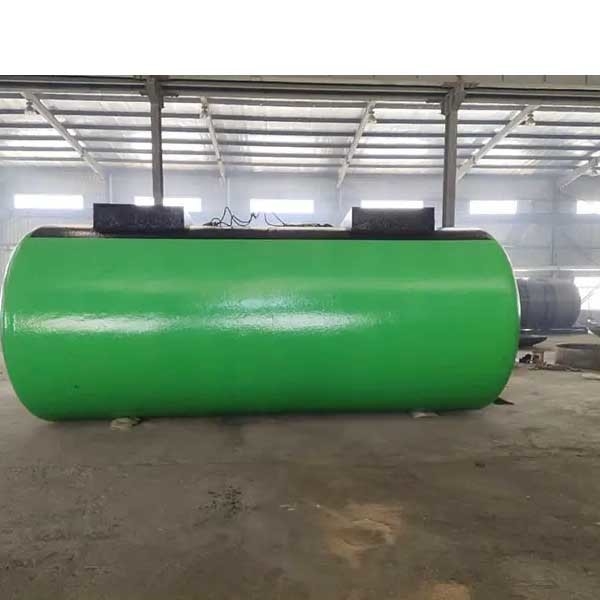

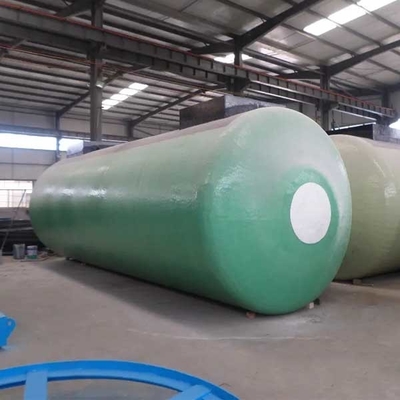

Customized Underground Fiberglass Steel Sf Double Layer Fuel Oil Tank
Description
The Customized Underground Fiberglass Steel Sf Double Layer Fuel Oil Tank is a container for storing oil products, and it is the main equipment of the oil depot. Oil storage tanks can be divided into metal oil tanks and non-metallic oil tanks according to their materials; underground oil tanks, semi-underground oil tanks and above-ground oil tanks according to their location; vertical and horizontal according to installation form; according to shape Cylindrical, Box and Spherical
Parameter
| diesel petrol srorage tank specifications | ||||
|
Volume (m3) |
Nominal parameter(mm) | Cylinder length(mm) | Thickness(mm) |
Weight (KG) |
| Head/Cylinder | ||||
| 5(4.93) | 1600 | 1870 | 5/6 | 777 |
| 8 | φ1700 | 3000 | 6/6 | 1198 |
| 10 | φ1800 | 3280 | 6/6 | 1493 |
| 15 | φ1800 | 5240 | 8/6 | 2500 |
| 25 | φ2200 | 5760 | 8/8 | 2852 |
| 20 | φ2200 | 4500 | 6/6 | 2675 |
| 8/8 | 3280 | |||
| 30 | φ2400 | 5750 | 6/6 | 3321 |
| 8/8 | 4223 | |||
| 40 | φ2600 | 6600 | 8/8 | 5212 |
| 10/8 | 5470 | |||
| 50 | φ2800 | 7100 | 8/8 | 5960 |
| 10/8 | 6255 | |||
| 100 | Φ3000 | 14600 | 12/12 | 11500 |
Features
1. The diameter of the oil tank is small, the rigidity is large, and it can withstand certain internal and external pressure, which is beneficial to the relevant anti-static, easy to set in the ground, and can be manufactured in the factory, mass-produced, and easy to transport.
2. There is very little chance of a fire in an oil tank.
3. According to the different materials and standards of the current container, the main material can choose stainless steel, carbon steel, low alloy steel.
4. Reasonable planning, advanced skills, automatic control, in line with standards, the tank body adopts horizontal single-layer or double-layer structure,
5. It can be filled with thermal insulation materials according to user requirements
