Product Details:
|
| Core Components: | Other | Key Selling Points: | Long Service Life |
|---|---|---|---|
| Product Name: | Storage Tank | Application: | Petrochemical /industry |
| Advantage: | Anticorrosive | After-sales Service Provided: | Online Support |
| Local Service Location: | None | Applicable Industries: | Manufacturing Plant, Other |
| Warranty Of Core Components: | Not Available | Capacity: | High-capacity |
| High Light: | 235B Fibreglass Oil Tank,FRP Fibreglass Oil Tank,Anticorrosive oil tank 1000 litre |
||

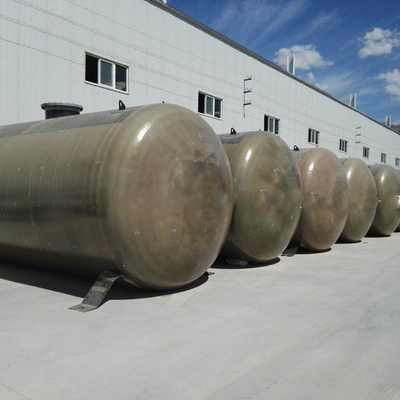

SF Fiberglass Frp Double Wall High Capacity Underground Fuel Oil Storage Tank
Description
The full name of the SF Fiberglass Frp Double Wall High Capacity Underground Fuel Oil Storage Tank is a double-layer oil tank made of steel reinforced glass fiber. . There is a through gap space between the steel inner tank and the FRP outer tank; at the same time, it is equipped with a leak detection device, which can monitor the gap space for 24 hours. Once the inner tank or outer tank leaks, the sensor of the leakage detection device can monitor the liquid level at the bottom of the clearance space and issue an alarm to ensure the safe use of the oil tank
Parameter
| Marketing Type | New Product 2022 |
| Warranty of core components | 1 Year |
| Core Components | Vessel |
| Capacity | 1~150M3 |
| Place of Origin | China |
| Dimension(L*W*H) | Customer's demand |
| Key Selling Points | Long Service Life |
| Showroom Location | None |
| Medium | Fuel diesel oil |
| Type | Horizontal |
| Material | 235B & FRP |
| Filling ratio | 0.9 |
| Certification | ISO9001:2015 |
Advantage
1. Using special polyester film, it can be attached to the outer wall without any adhesive.
2. High-strength and toughness tape is used to ensure that the uniform thickness of the gap is above 0.1mm.
3. The tank body is painted with polyurethane paint, which can effectively prevent the interface reaction between the iron can and the resin of the outer structural layer, thereby ensuring the effective formation of the gap layer.
4. Using continuous jetting technology to prevent the generation of air bubbles, the glue content drops from the normal value of 73% to below 65%.
5. A special process is adopted in the tank attachment area to ensure that there is no gap or delamination between the glass fiber reinforced plastic and the iron parts.
6. Equipped with a special anti-static device interface, which can effectively release the static electricity generated by the tank.
7. Install a leak detection system to detect oil and water, and alarm immediately if there is a leak.
