Product Details:
|
| Capacity: | 5000L-200,000L | Weight: | 4650KG |
|---|---|---|---|
| Key Selling Points: | Long Service Life | Application: | Refueling Station/generator |
| Keywords: | Oil Tank Vessel | Advantage: | Double Wall / Anti-corrosion |
| Shape: | Horizontal Cylindrical | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Accessories: | Level Gauge | Warranty: | 1 Year |
| High Light: | Fiberglass Steel Double Walled Oil Tank,20m3 Double Walled Oil Tank,30m3 double wall fiberglass oil tank |
||

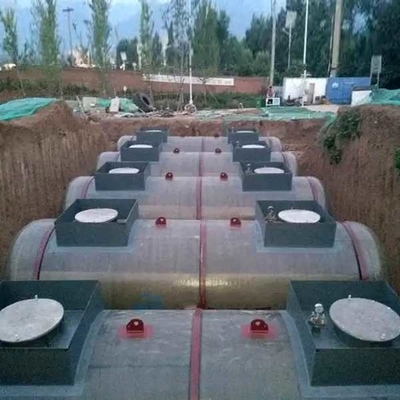

SF Double Wall Fiber Glass Steel Underground Fuel Tank Made For Gas Station
Description
Double-layer oil tanks refer to three types of SS oil storage tanks, SF oil storage tanks, and FF oil storage tanks.
The full name of SF is a double-layer structure oil storage container made of steel reinforced fiberglass. There is a through gap space between the steel inner tank and the FRP outer tank; the oil tank is also equipped with a leakage detection device, which can monitor the gap space for 24 hours. Once the inner tank or outer tank leaks, the sensor of the leakage detection device can monitor the liquid level at the bottom of the clearance space and issue an alarm to ensure the safe use of the oil tank.
Parameter
|
Nominalvolume (m3) |
Actual volume (m3) |
Nominal diameter (mm) |
Thickness (mm) |
Cylinder length (mm) |
Total length (mm) |
|
20 |
20 |
2200 |
5/5 | 4500 | 5600 |
| 22.1 | 6/6 | 5000 | 6100 | ||
|
30 |
30 |
2400 |
6/6 | 5750 | 6950 |
| 33.4 | 8/8 | 6500 | 7700 | ||
|
40 |
40 |
2600 |
6/6 | 6600 | 7900 |
| 44.8 | 8/8 | 7500 | 8800 | ||
|
50 |
50 |
2800 |
6/6 | 7100 | 8500 |
| 55.4 | 8/8 | 8000 | 9400 |
Advantage
1. The service life of the underground diesel storage tank is more than 5-10 times that of the ordinary single-layer steel oil tank, and the safe use is at least 30 years, which greatly saves the maintenance cost. The leak detector for the accessories of the oil tank is easy to install and shortens the construction time. It can well protect the ecological environment of soil and water, and save the high environmental protection cost in the later stage.
2. The glass fiber ensures that if the fuel leaks, the soil and water will not be leaked directly, and the outside of the storage tank will not be electrolytically corroded with water and salt water.
Application
The underground double-layer oil tank can be applied to gas stations and various chemical industries that need a large amount of fuel storage. The double-layer oil tank can effectively prevent pollution caused by leakage and prolong its service life for 20 years, which can bring benefits to the application industry efficiently.
