Product Details:
|
| Core Components:: | Pressure Vessel | Place Of Origin:: | Henan, China |
|---|---|---|---|
| Warranty:: | 1 Year | Material:: | Carbon Steel Q235B |
| Medium: | Diesel/ Petrol/Gasoline/Double Oil Types | Accessories:: | Level Gauge |
| Layer: | Double | After Warranty Service:: | Online Support, Spare Parts, Field Maintenance And Repair Service |
| Certification: | ISO 9001 | Video Outgoing-inspection:: | Provided |
| High Light: | Q235B Underground Fuel Oil Storage Tank,ISO 9001 Fuel Oil Storage Tank,Gas Refilling Station Oil Storage Tank |
||

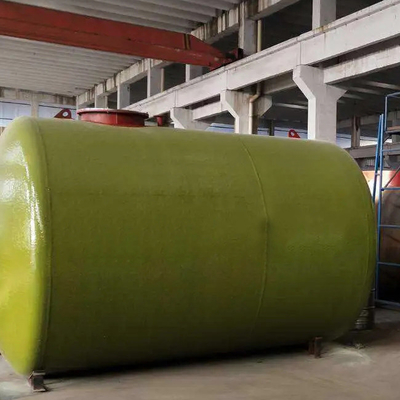

Industrial Double Layer Underground Fuel Oil Storage Tank For Gas Refilling Station
Description
Because the double-layer oil tank is made of advanced technology, it has the advantages of pressure resistance, corrosion resistance and long service life, especially the double-layer oil tank produced by our company is light in weight and high in strength, which is higher than the industry production standard. requirements to customize the volume of the tank.
Parameter
| Tank diameter x height(mm) | Inch size | Open size(inch) |
| Φ200 x 900 | 8x35" | top 2.5" |
| Φ200 x 1200 | 8x47" | top 2.5" |
| Φ250x1400 | 10x54" | top 2.5" |
| Φ300x1400 | 12x54" | top 2.5" |
| Φ300x1650 | 12x65" | top 2.5" |
| Φ350x1650 | 14x65" | top 2.5" |
| Φ350x1800 | 14x72" | top 2.5" |
| Φ400x1650 | 16x65" | top 2.5 or 4" |
| Φ400x1800 | 16x72" | top 2.5 or 4" |
| Φ500x1750 | 20x69" | top 2.5 or 4" |
| Φ500x1950 | 20x77" | top 2.5 or 4" |
| Φ600x1800 | 24x72" | top 4" |
| Φ600x1950 | 24x77" | top 4" |
| Φ600x2200 | 24x87" | top 4 /bottom 4" |
| Φ750x1850 | 30x72" | top 4 or 6" |
| Φ750x1950 | 30x77" | top 4 or 6" |
| Φ750x2200 | 30x87" | top 4 /bottom 4" |
| Φ800x2050 | 32x82" | top 4" |
| Φ900x1850 | 36x72" | top 4" |
| Φ900x2200 | 36x87" | top 4 or 6" |
| Φ900x2400 | 36x94" | top 4 or 6/bottom 4" |
| Φ1000x1850 | 40x72" | top 4 or 6" |
| Φ1000x2200 | 40x87" | top 4 /bottom 4" |
| Φ1000x2400 | 40x94" | top 4 /bottom 4" |
| Φ1200x2200 | 48x87" | top 4 or 6/bottom 4" |
| Φ1200x2400 | 48x94" | top and bottom 6" flange |
| Φ1400x2400 | 56x94" | top and bottom 6" flange |
| Φ1500x2400 | 60x94" | top and bottom 6" flange |
| Φ1800x2600 | 72x94" | top and bottom 6" flange |
| Φ2000x2800 | 80x112" | top and bottom 6" flange |
Advantage
1. The performance of the double-layer SF tank has been greatly improved compared with the ordinary single-layer oil tank, and the service life of the double-layer SF tank is at least three times that of the traditional storage tank. At the same time, it can be directly buried in the ground during the assembly process, saving the construction cost of oil tank facilities.
2. The double-layer SF tank is made of glass fiber reinforced plastic and anti-corrosion fiber, and there are air holes between the inner shell and the outer shell. Even if the inner shell leaks, the refined oil cannot leak out, polluting the underground soil. In addition to not needing to build space for the fuel tank, the build time was also shortened. The maintenance requirements of SF double-layer tanks are also much lower than those of traditional storage tanks, which not only saves maintenance costs, but also has higher use efficiency.
Our Services
Researches and development team by knowing the importance of the FRP usage in industry and construction , have successfully conducting different researches and studies projects. At the present , it has several government- supported projects available .
Design and engineering services has been given idea from customers, and make out the thinhs you imaged. Specially developing on new machinary.
Installation and construction team is experienced with installation, commissioning and training service at cutomer’s factory. In this way, the customer is able to handle management of equipment themsleves soon.
Technical support is the most importance in production. as long as frp developing, new and advanced process, material, equipments appeared. We are giving the eyes on the world frp relatived news and supply customer advanced service.
