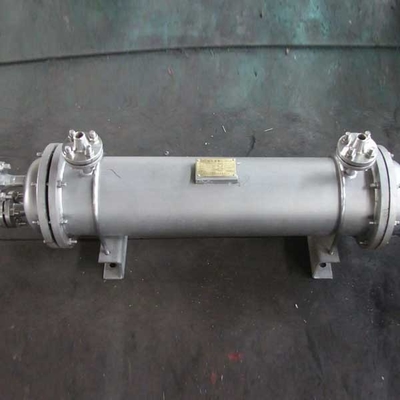

2205 2507 Double Tube Sheet Heat Exchanger , Horizontal Shell And Tube Condenser

2205 2507 Double Tube Sheet Heat Exchanger , Horizontal Shell And Tube Condenser
2205 2507 Double Tube Sheet Heat Exchanger , Horizontal Shell And Tube Condenser 2205 2507 Double Tube Sheet Heat Exchanger , Horizontal Shell And Tube Condenser

Large Image :  2205 2507 Double Tube Sheet Heat Exchanger , Horizontal Shell And Tube Condenser

Product Details:
Place of Origin: henan
Brand Name: MKIMM
Certification: ISO
Model Number: MKIMM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: bargain
Packaging Details: wooden box
Delivery Time: 15days
Payment Terms: T/T,L/C,Paypal,Alipay,West Union and so on
Supply Ability: 25 every month

2205 2507 Double Tube Sheet Heat Exchanger , Horizontal Shell And Tube Condenser

Description
Machinery Test Report:: Provided Core Components:: Shell And Tube
Structure:: Tubular Heat Exchanger Maximum Working Pressure:: 0-1Mpa
Key Selling Points:: High-accuracy Material:: 304/316L Stainless Steel
Size: Customizable After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
High Light:

2205 Double Tube Sheet Heat Exchanger

,

2507 Double Tube Sheet Heat Exchanger

,

Horizontal shell and tube condenser

Customizable Stainless Steel Sanitary Double Tube Sheets Heat Exchanger



Description

Double tube heat exchanger is our characteristic product, its structure design, manufacture and application are unique. Spiral tube, arc tube, baffle tube heat exchanger is the company's independent research and development products, with international advanced technology, widely used in petrochemical, electric power, metallurgy and other industries.



Specifications

Specification for tubular heat exchanger
Optional material SS 304, 316L, duplex steel 2205, 2507, carbon steel , pure titanium, zirconium, Hastelloy , etc.
Tube φ8, φ10, φ12, φ14, φ16, φ19 ,φ25 etc
Heat exchanger area 0.1-1000 square meter (customized)
Max. working pressure 10Mpa (customized)
Max. temperature 300 degree celsius (customized)
Installation type Horizontal/Vertical
Carried standard Our national standard, GBT151-2014





Precautions

There is a tube sheet at the end of the double-tube heat exchange tube, which is called the outer tube sheet, that is, the tube side tube sheet, which doubles as the equipment flange and is connected with the heat exchange tube and the tube box flange. There is also a tube sheet near the end of the heat exchange tube, which is called the inner tube sheet, that is, the bright tube sheet, which is connected with the heat exchange tube and the pass. There is a certain distance between the outer tube sheet and the inner tube sheet, and this part of the space can be isolated from the outside by a short joint to form an isolation cavity that does not withstand pressure; it can also be an open structure.

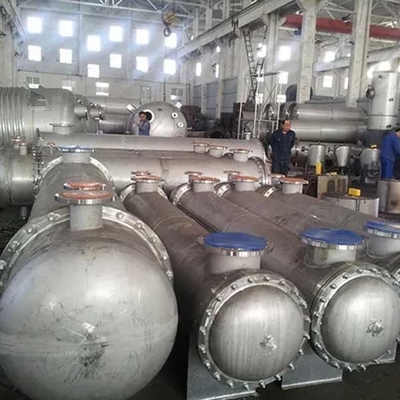

double tube sheet heat exchanger

FAQ:

1. Are you a factory?

We are one of the largest manufacturers of corrosion resistant heat exchangers in China.



2. Are there any discounts for heat exchangers?

More quantity will enjoy lower discount!



3. What information do I need to quote?

Please let us know the type of heat exchanger, material, heat exchanger capacity, water flow, inlet and outlet water temperatures, refrigerant freon type, quantity or any size requirements.



4. What is the MOQ?

We accept bulk orders, mixed orders, any trial order.



5. When can I get the price?

We usually quote within 24 hours after receiving your inquiry.

double tube sheet heat exchanger
