Product Details:
|
| Processing:: | Heat Exchanger | Showroom Location:: | None |
|---|---|---|---|
| Machinery Test Report:: | Provided | Core Components:: | Pressure Vessel |
| Applicable Industries:: | Food & Beverage Factory, Construction Works | Marketing Type:: | New Product 2022 |
| Condition: | New | Processing Types: | Alcohol |
| High Light: | SS304 double tube sheet,316L double tube sheet,1400mm exchanger bundle |
||

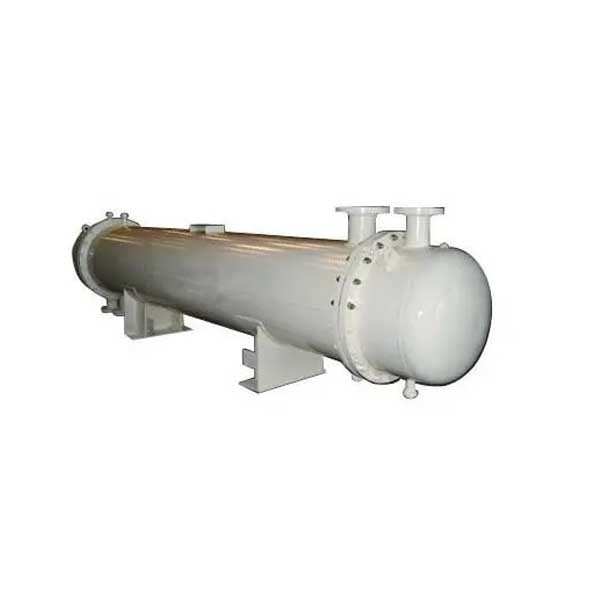

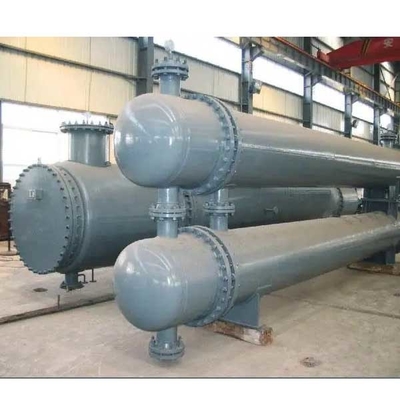

Stainless Steel Double Tube-Sheets Heat Exchanger
Description
A double-tube heat exchanger is a device that transfers part of the heat of the hot fluid to the cold fluid, also known as a heat exchanger. It occupies an important position in chemical, petroleum, power, food and many other industrial productions. In chemical production, heat exchangers can be used as heaters, coolers, condensers, evaporators and reboilers, etc., and are widely used.
Parameter
| Model: | VT40 | Depth of undulars(mm): | 3.9 |
| Equivalent diameter(mm): | 7.8 | Angle of hole diameter(mm): | φ115 |
| Angle hole center distance(mm): | 1227*257 | Dimensions(mm): | 1400*425 |
| Veneer area(㎡): | 0.46 | Suppression of thickness(mm): | 0.5-0.6 |
| Plate material: | 304 | 0.5 | 0.6 |
| 316L | 0.5 | 0.6 | |
| Board weight: | 304 | 2.4 | 2.9 |
| 316L | 2.5 | 2.9 |
Structural features
1. Full emptying is the key design of double tube sheet heat exchanger to avoid residual pharmaceutical water;
2. Ensure that the material in the lumen is fully emptied and has no residue, which can effectively reduce and prevent the static reproduction of colonies and the risk of microbial contamination;
3. For dual-flow lumens, it is necessary to consider controlling the mixed flow caused by the emptying connection between the lumens within a limited range;
4. Combined with the on-site installation method, it can be vertical or horizontal (5‰ slope);
pressure test
(1) After the strength expansion of the inner tube sheet and the heat exchange tube, the water pressure test is carried out on the shell side. After the water pressure test is qualified, the air tightness test is carried out. After passing the inspection, the connection and assembly of the outer tube sheet and the heat exchange tube shall be carried out.
(2) After the strength welding (argon arc welding) + expansion connection of the outer tube sheet and the heat exchange tube is assembled, the welded joint is subjected to penetration testing after welding.
(3) The water pressure test is carried out in the liquid accumulation process. After the test is qualified, the air tightness test is carried out.
(4) Ammonia leakage test is carried out on the shell side, and ammonia leakage test is carried out at the discharge port of the liquid accumulation side to check the connection joint between the outer tube sheet and the heat exchange tube.
(5) After the assembly of the pipe box is completed, the pressure and water pressure test is carried out on the pipe side.
