Product Details:
|
| Machinery Test Report:: | Provided | Core Components:: | Motor, Heat Exchanger |
|---|---|---|---|
| Structure:: | Tube Heat Exchanger | Maximum Working Pressure:: | 6bar |
| Dimension(L*W*H):: | Depends On Certain Model | Working Temperature Range:: | -20~200 |
| Heat Exchange Area:: | Customized | Pass Number:: | Single/double |
| High Light: | 6 bar heat exchanger cooling system,200C heat exchanger cooling system,1.0MPa heat exchanger pump system |
||

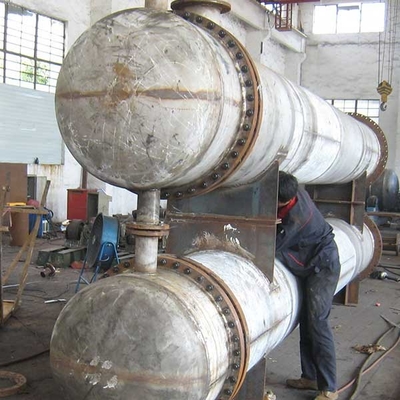

Sanitary Stainless Steel Double Tube Sheet Heat Exchanger For Condenser
Description
The double-tube heat exchanger is a device for heat transfer between materials of different temperatures. Its main function is to maintain or change the working temperature and phase state of the materials, to meet the requirements of the process operation at one time, and to improve the efficiency of process energy utilization for waste heat recovery. Among the heat exchange equipment, the double-tube heat exchanger is the most widely used.
Parameter
| Operation | |
| Shell Design Pressure | 0.6MPa 1.0MPa |
| Shell Design Temperature | 150ºC |
| Tube Desian Pressure | 0.6MPa 1.0MPa |
| Tube Desian Temperature | 150ºC |
| Tube No. | 1/2/4 |
| Material | |
| Shell | 304, 316L |
| Tube | 304, 316L |
| O-ring | EPDM, PTFE, silicon |
| Connection | |
| Tube connection | Clamp, Flange, Screw |
| Shell connection | Clamp, Flange |
| Surface Finish | |
| Finish type | Mechanical / electrolytic polishing |
| Polishing precision | 0.4um |
Features:
1. The heat exchange tube is made of high-quality 316L seamless steel pipe.
2. Double tube plate design to prevent cross contamination.
3. Full emptying design on the contact side of the product.
4. There is no dead angle in the heat exchange tube.
5. Designed and manufactured according to FDA and GMP requirements.
6. Quick installation interface on the product side, flange connection on the shell side.
7. The parts in contact with the product adopt electrolytic polishing process, and the surface roughness is less than 0.5μm;
8. SIP online disinfection can be realized;
9. It is divided into five series: HF-100, HF-125, HF-150, HF-200 and P-250. The heat exchange area is from 0.3 square meters to 16.2 square meters. To meet different process requirements, it can also be designed and manufactured according to user requirements.
