Product Details:
|
| After-sales Service Provided:: | Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support | Local Service Location:: | None |
|---|---|---|---|
| Surface Finish:: | 0.28-0.4um | Product Name:: | Customizable Stainless Steel Shell & Tube /Double Tube Heat Exchanger |
| Dimension(L*W*H):: | Customisation | Liquid Flow Rate:: | 1-3m/s |
| Condition: | New | Warranty Of Core Components:: | 1 Year |
| High Light: | Spiral Double Tube Sheet Heat Exchanger,4.0m3 h Double Tube Sheet Heat Exchanger,8.0m3 h tubular condenser |
||

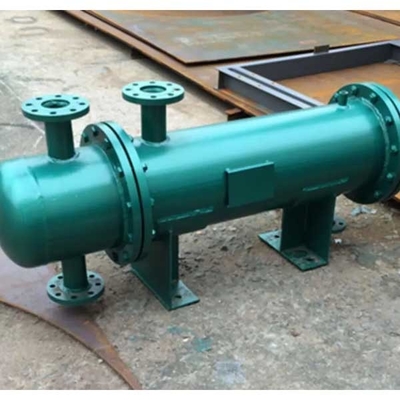

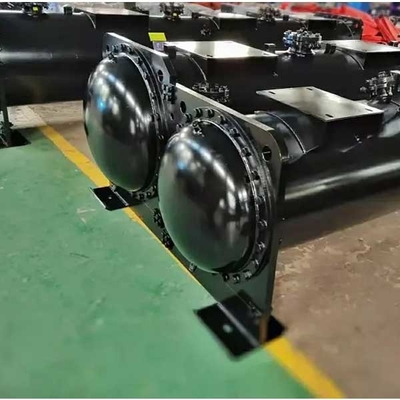

High Rate Double Tube Plate Fixed Type Spiral Wound Tube Heat Exchanger
Description
Double tube sheet heat exchanger is an energy-saving equipment that realizes heat exchange between materials, and it is widely used in various fields of the national economy. In order to prevent corrosion and pollution in production, and to meet the requirements of technological process, labor protection, safety production, etc., double tube sheet heat exchangers are usually used to solve the problem.
Parameter
| Model |
Capacity
KW |
Water Flow m3/h |
External and Installation dimensions A B C D E F G H R L |
Freon Out a1(Φ) |
Freon a2(Φ) |
Water In/Out a3 |
N.W
Kg |
| 5*2EKG | 23.2 | 4.0 | 1180 170 90 1020 350 600 60 200 40 40 | 22 | 19 | 50 | 42 |
| 8*2EKG | 37.2 | 6.5 | 1180 200 100 1010 200 800 60 200 40 40 | 28 | 19 | 63 | 56 |
| 10*2EKG | 46.5 | 8.0 | 1420 200 100 1250 370 800 60 200 40 40 | 28 | 19 | 63 | 65 |
| 12*2EKG | 56.0 | 9.6 | 1460 225 100 1290 250 1000 60 200 43 43 | 28 | 22 | 63 | 78 |
| 15*2EKG | 70.0 | 12.0 | 1360 250 100 1190 200 1000 60 260 53 53 | 28 | 22 | 63 | 96 |
| 20*2EKG | 93.0 | 16.0 | 1720 250 110 1540 300 1200 60 260 53 53 | 38 | 28 | 75 | 115 |
| 25*2EKG | 116 | 20.0 | 2120 250 110 1940 500 1200 60 260 53 53 | 38 | 28 | 75 | 136 |
| 30*2EKG | 140 | 24.0 | 2030 280 110 1850 500 1200 60 260 65 65 | 38 | 28 | 75 | 160 |
| 35*2EKG | 163 | 28.0 | 2340 280 120 2150 500 1500 60 260 65 65 | 38 | 28 | 90 | 182 |
application
The double tube sheet heat exchanger is a heat exchanger with two tube sheets with a certain gap at one end of the heat exchanger or equivalent to two tube sheets with a certain gap. In actual operation, double tube sheet heat exchangers are generally used in the following two occasions: one is to absolutely prevent the mixing of media between the shell and the shell, for example, for the shell-side water, the tube-side chlorine or chloride. In the heat exchanger, if the water in the shell side comes into contact with the chlorine or chloride in the tube side, highly corrosive hydrochloric acid or hypochlorous acid will be produced, which will cause severe corrosion to the tube side material.
The use of double tube sheet structure can effectively prevent the mixing of the two materials, thereby preventing the occurrence of the above accidents; the other is the occasion where the medium pressure difference between the tube and shell sides is large, which is usually in the cavity between the inner and outer tube sheets. Add a medium to reduce the pressure difference of the medium between the tube and shell sides.
