Product Details:
|
| Core Components:: | Motor, Heat Exchanger | Structure:: | Tube Heat Exchanger |
|---|---|---|---|
| Maximum Working Pressure:: | 10Mpa | Dimension(L*W*H):: | Depends On Certain Model |
| Type: | Tube Type | Function: | High Efficient Heat Transfer |
| Condition: | New | Weight: | 450 KG |
| High Light: | 7.5kw Double Tube Sheet Heat Exchanger,2.0mm Double Tube Sheet Heat Exchanger,0.8mm steam condenser heat exchanger |
||

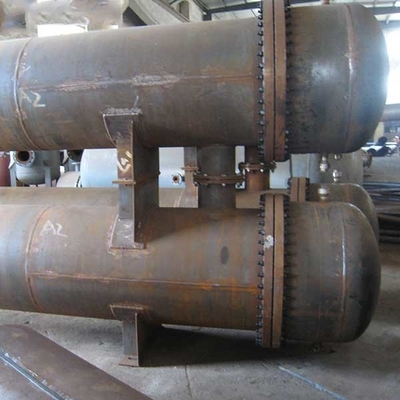

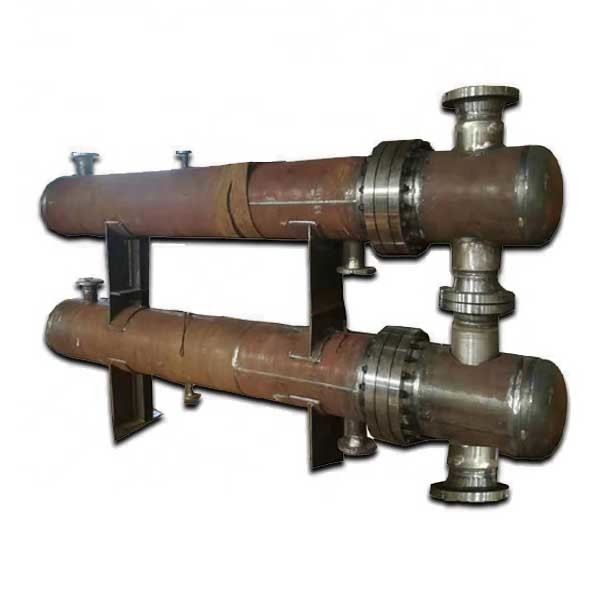

Food Grade Sanitary Double Tube Sheets Heat Exchanger For Pharmaceutical
Description
Double tube heat exchanger adopts double tubesheet structure design, so that the tube side and shell side are connected by their own tubesheet respectively, breaking the traditional tube heat exchanger tube side and shell side share a connecting tubesheet, minimizing the risk of cross pollution, facilitate the timely discovery of leakage hazards, to ensure that users safe production. Smooth surface, straight-through structure, no dead Angle, easy and thorough cleaning, the lowest point of the equipment is equipped with a vent valve, which is conducive to the discharge of materials, cleaning water and condensate water after online sterilization. The fully empty design avoids dead corner in the contact part of the product, can prevent the breeding of microorganisms, and is easy to clean and sterilize.
Parameter
| Item Model | 40 |
| Main Motor Power (kw) | 7.5KW*2 |
| The range of the pipe(mm) | φ9.5-φ50.8 |
| The thickness of the pipe(mm) | 0.8-2.0 |
| The speed of the welding(m/min) | 1.0-5.0m/in |
| The horizontal axis diameter (mm) | φ40/C8 |
| Vertical axis diameter (mm) | φ30 |
Precautions
One of the great advantages of the double tube sheet heat exchanger is the hygienic aseptic grade and full emptying design. When the vertical installation is adopted, because of the one-way straight through of the heat exchanger, the flow direction of the heat exchange tube is consistent with the direction of the material gravity, so the material can easily achieve self-emptying flow due to its own gravity; The flow direction of the pipe is perpendicular to the direction of gravity, and a certain liquid level height difference is required for the self-emptying of the material. And because of the viscosity of the material, the self-emptying of the material is hindered. Therefore, when installing horizontally, it is usually necessary to tilt the heat exchanger cylinder at a certain angle, so that part of the gravity of the material can be converted into the power of flow, so as to achieve the purpose of self-emptying. When the angle of inclination reaches 90°, that is, when it is installed vertically, the gravity of the material is completely converted into the power of the flow of the material, and the effect is the best at this time. In addition, when installed horizontally, the correct installation of the eccentric head is also very important for self-emptying.
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer with manufacturing experience.
2. Can we put our logo or company name on your products or packaging?
Yes.
3. Can I get a sample?
Yes. We can provide samples for inspection, and you can discuss the details with sales.
4. How long does it take for mass production?
Usually 25-45 days, depending on the product category.
5. Can I visit your factory?
Yes. Welcome. Please contact sales for pickup service.
