Product Details:
|
| Machinery Test Report:: | Provided | Core Components:: | Heat Exchanger |
|---|---|---|---|
| Structure: | Double Tube Plate Heat Exchanger | Dimension(L*W*H):: | Customization |
| Working Temperature Range:: | 10-146 | Function:: | Heat Conduction |
| Showroom Location:: | None | Video Outgoing-inspection:: | Provided |
| Marketing Type:: | New Product 2020 | Liquid Flow Rate:: | 0.64M2 Cooling Area |
| High Light: | Petrochemical Double Tube Sheet Heat Exchanger,Pharmacy Double Tube Sheet Heat Exchanger,Sanitary pipe heat exchanger |
||

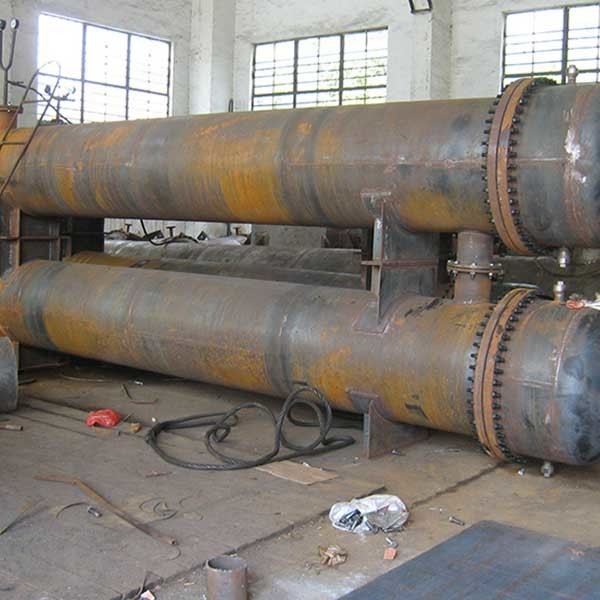

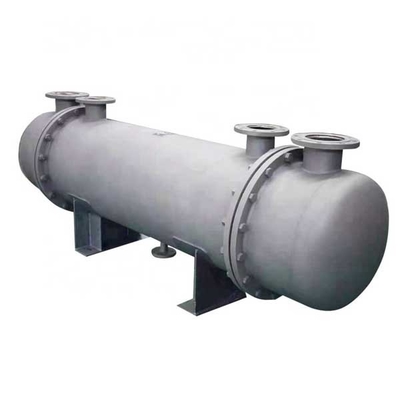

Sanitary Double Tube Sheets Heat Exchanger Tubing Manufacturers
Description
The double tube sheet heat exchanger is a relatively new structure at present. There is a tube sheet at the end of the heat exchange tube, called the outer tube sheet, which doubles as the equipment flange and is connected with the heat exchange tube and the tube box flange respectively. There is also a tube sheet near the end of the heat exchange tube, called the inner tube sheet, which is connected to the heat exchange tube and the shell side respectively. There is a certain distance between the outer tube sheet and the inner tube sheet, and they are connected by a Huff short joint to form an isolation cavity that is not under pressure.
Parameter
| Certificate | ASME, U, U2, PED, A1, A2, A3 |
| Type | Storage Tank / Heat exchanger / Reactor / Separator |
| Specifications | Customized |
| Ex-factory date | Record drawings, Certificate of product quality, Pressure vessel product safety quality supervision and inspection certificate |
| Design Consideration |
Design client condition diagram (including working pressure, material, specification, working temperature range, place of use and natural conditions, medium composition and characteristics, expected service life, geometric parameters, nozzle orientation, etc |
| Warranty Period | Business agreement (generally 12 months after use or 17 months after delivery) |
| Scope of manufacturing | Overall delivery, segment delivery after on-site assembly, parts manufacturing, etc |
| Service | Technical consulting, On-site maintenance and repair video, Technical support online, Free Samples, Free drawing design, Free process design |
| Application | Oil & Refinery, Petrochemical, Biochemistry, Pharmacy, Waste Incineration Etc. |
Classification
There are two types of double tube sheet heat exchangers, straight tube type double tube sheet heat exchanger (SS-I type) and U type double tube sheet heat exchanger (SS-II type). It can be with or without insulation according to the requirements of customers. The straight-tube double-tube sheet heat exchanger adopts a reducing and quick-installing interface, which effectively avoids the retention of chemical liquid at the connection between the heat exchanger and the pipeline, and realizes true full emptying. Design. U-shaped double tube sheet heat exchanger adopts U-shaped heat exchange tube, and the material is discharged from the lowest point of the bottom shell to avoid liquid retention
