Product Details:
|
| Core Components:: | Plate | Structure: | Brazed Plate Heat Exchanger |
|---|---|---|---|
| Dimension(L*W*H):: | Customize | Working Temperature Range:: | Customized |
| Heat Transfer Area:: | Customized | Warranty Of Core Components:: | 1 Year |
| Voltage:: | Customize | Key Selling Points:: | Competitive Price |
| High Light: | Stainless heat exchanger brazed plate,Copper heat exchanger brazed plate,180mm plate evaporator |
||

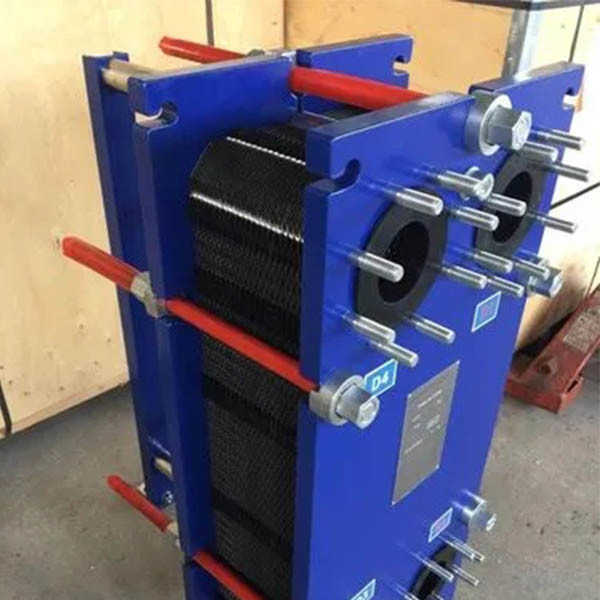

Stainless Copper Brazed Aluminium Plate Heat Exchanger
Description
The plate heat exchanger is made of metal corrugated plates. By fixing and assembling parts, a channel is formed for the liquid to pass through, so as to guide the liquid to exchange heat in its own way.
Specifications
| Mold | clamp size | max width | max height | max length | interface size | max number of chip | max flow |
| 30H | N(2.4+X) | 180 | 490 | 680 | 32 | 90 | 13 |
| 60B | N(2.0+X) | 320 | 930 | 1200 | 60 | 250 | 36 |
| 60H | N(3.0+X) | 320 | 930 | 1200 | 60 | 203 | 36 |
| 65T | N(4.0+X) | 410 | 700 | 1400 | 65 | 130 | 72 |
| 100B | N(3.95+X) | 470 | 1069 | 1600 | 100 | 278 | 140 |
| 100H | N(3.95+X) | 470 | 1069 | 1600 | 100 | 180 | 140 |
| 150B | N(2.5+X) | 610 | 1815 | 3000 | 150 | 600 | 360 |
| 150T | N(3.95+X) | 610 | 1815 | 3000 | 150 | 450 | 360 |
| 200T | N(2.5+X) | 800 | 1435 | 2700 | 295 | 285 | 520 |
| 200H | N(4.0+X) | 780 | 2150 | 3000 | 200 | 420 | 600 |
| 250B | N(2.5+X) | 920 | 2900 | 3300 | 250 | 500 | 900 |
| 300B | N(3.5+X) | 1100 | 2415 | 3360 | 300 | 300 | 997 |
Features:
1. The structure of the plate heat exchanger is scientific and reasonable, which is conducive to strengthening heat transfer, and can make the medium form intense turbulent flow at a lower flow rate, and reduce the possibility of scaling.
2. The factory adopts a new mold clamping process to ensure the uniform pressing of the plates, so that the corrosion resistance and mechanical strength of each part of the heat transfer plate are uniform, thereby extending the service life of the plate heat exchanger.
3. The plate heat exchanger is easy to disassemble and clean.
4. The heat transfer plate is surrounded by a reinforced structure, and the corrugation size is reasonable, so that the contact points are evenly distributed, and the pressure resistance is improved, and the corrugation is streamlined.
