Product Details:
|
| Structure: | Tube Heat Exchanger | Maximum Working Pressure:: | Customized |
|---|---|---|---|
| Dimension(L*W*H):: | Customized | Material:: | SS316, SS304, Titanium |
| Heat Exchanger Type:: | Tube Heater Exchanger | After Warranty Service:: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Liquid Flow Rate:: | Customized | Key Selling Points:: | High-accuracy |
| High Light: | 1.0MPa Shell Tube Heat Exchanger,food grade Shell Tube Heat Exchanger,316L multi tubular heat exchanger |
||

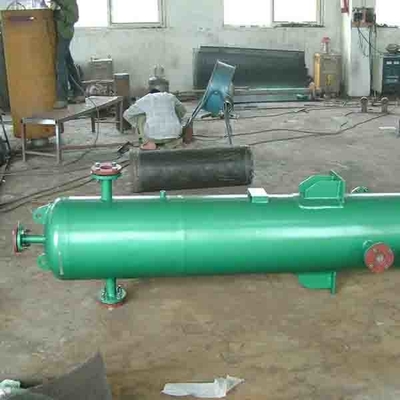

Food Grade Stainless Steel Sanitary Shell And Tube Heat Exchanger
Description
shell and tube heat exchanger is the most widely used heat exchanger. Although shell and tube heat exchanger in compact structure, heat transfer intensity and unit heat transfer area metal consumption can not be compared with plate heat exchanger or fin heat exchanger, but its operating temperature and pressure range is wide, low manufacturing cost, convenient cleaning, large processing capacity, reliable operation.
Parameter
| Operation | |
| Shell Design Pressure | 0.6MPa 1.0MPa |
| Shell Design Temperature | 150ºC |
| Tube Desian Pressure | 0.6MPa 1.0MPa |
| Tube Desian Temperature | 150ºC |
| Tube No. | 1/2/4 |
| Material | |
| Shell | 304, 316L |
| Tube | 304, 316L |
| O-ring | EPDM, PTFE, silicon |
| Connection | |
| Tube connection | Clamp, Flange, Screw |
| Shell connection | Clamp, Flange |
| Surface Finish | |
| Finish type | Mechanical / electrolytic polishing |
| Polishing precision | 0.4um |
Principle
The cooler consists of the following parts. Heat transfer principle: heat and cold two fluid heat transfer, one in the pipe flow, called pipe fluid; The other flows outside the tube, called the shell - in order to improve the heat transfer coefficient of the fluid outside the tube, a number of baffles are usually installed inside the shell. The baffle increases the velocity of the fluid at the shell side and forces the fluid through the bundle several times. The heat exchange tube can be arranged into equilateral triangle or square on the tube plate. Equilateral triangle is arranged compact, high turbulence and high heat transfer coefficient. Easy to clean outside the pipe, suitable for easy scaling fluid.
FAQ
Q : 1. Can I have a sample ?
A : Yes, welcome to place sample order to test and check quality.Mixed samples are also OK.
Q : 2. What is your the lead time for production?
A : Generally Sample needs 1-3 days,mass production needs 15-30 days,also depands on your request.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we can provide different product mix wholesale.
Q : 4. what payment terms do you accept?
A :Trade assurance,TT,Western Union.
Q : 5. what is the warranty for your products?
A :We provide one year warranty for the products..
Q : 6. Are you trading company or manufacturer?
A :Yes,We are manufacturer.Welcome to visit our factory and check our pruducts.
