Product Details:
|
| Machinery Test Report:: | Provided | Core Components:: | Pressure Vessel |
|---|---|---|---|
| Structure:: | Tube Heat Exchanger | Warranty:: | 1 Year |
| After Warranty Service:: | Video Technical Support, Online Support | Video Outgoing-inspection:: | Provided |
| Warranty Of Core Components:: | 1 Year | Maximum Working Pressure:: | 4.5MPa |
| High Light: | SS316L Shell Tube Heat Exchanger,4.5MPa Shell Tube Heat Exchanger,2.6kw stainless steel tube heat exchangers |
||

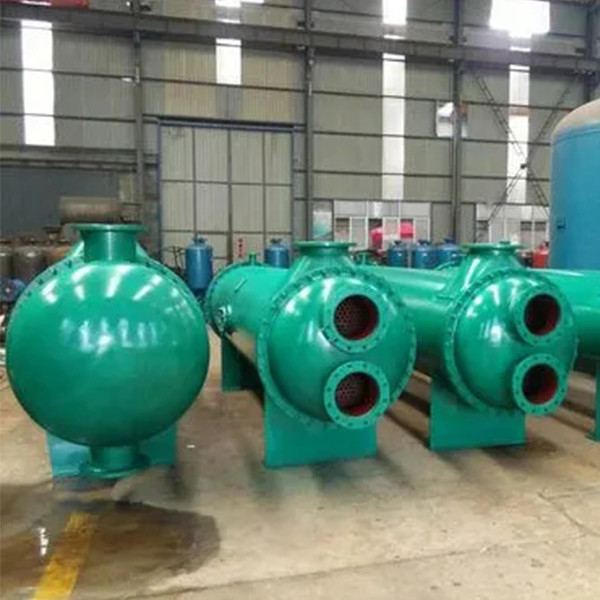

CE Certificate Cheap Price 316L Stainless Steel Shell And Tube Heat Exchanger For Swimming Pool
Description
Shell-and-tube heat exchanger is an energy-saving device that realizes heat transfer between materials between two or more fluids at different temperatures. The temperature reaches the index specified in the process to meet the needs of the process conditions, and it is also one of the main equipment to improve energy utilization. The heat exchanger industry involves nearly 30 industries such a
HVAC, pressure vessels, reclaimed water treatment equipment, chemical industry, petroleum, etc., forming an industrial chain with each other.
Parameter
| Model | Heating Capacity | Ti Tube Size | Water Flow |
Water Inlet &Outlet |
Refrigerant Inlet &Outlet |
| Btu/h (kw) | (Dia.*Length) mm | M3/h | Inch | mm | |
| TB-0.75 | 8800 (2.6kw) | Φ12.7*4000 | 1.0 | 1 | 9.52,9.52 |
| TB-1 | 12000 (3.5kw) | Φ12.7*5000 | 1.5 | 1.5 | 12.7,9.52 |
| TB-1.5 | 17000 (5kw) | Φ12.7*7000 | 2.2 | 1.5 | 12.7,9.52 |
| TB-2 | 24000 (7kw) | Φ12.7*9000 | 3.0 | 1.5 | 12.7,9.52 |
| TB-3 | 36000 (10.5kw) | Φ12.7*13500 | 4.5 | 1.5 | 12.7,9.52 |
| TB-5 | 58000 (17kw) | Φ12.7*20000 | 7.5 | 1.5 | 15.88,12.7 |
| TB-7 | 78000 (23kw) | Φ16*23000 | 10.5 | 1.5 | 15.88,12.7 |
| TB-10 | 110000 (33kw) | 2-Φ12.7*21000 | 15 | 2 | 19.05,12.7 |
| TB-12 | 135000 (39kw) | 2-Φ12.7*25000 | 18 | 2 | 19.05,12.7 |
| TB-15 | 160000 (47kw) | 2-Φ16*25000 | 22.5 | 2 | 19.05,12.7 |
Precautions
The shell and tube heat exchanger is hydraulically tested with water as the medium. The water used should be clean and the water temperature should not be lower than 5 degrees. Water stains should be removed immediately after testing. If we cannot meet this requirement, the chloride ion content in water should be controlled not to exceed 25mg/L.
In the hydrostatic test of shell and tube heat exchangers, two pressure gauges with the same range and calibration must be used. The range of the pressure gauge should not be less than 1.5 times and higher than 3 times the test pressure. The pressure gauge should be installed on top of the test heat exchanger for easy viewing of the location.
FAQ
Q1: Warranty time
A1: 12 months from the date of Provisional Acceptance of Plant Test or 18 months from the
actual date of delivery of the last lot of goods, whichever comes earlier.
Q2: How about the quality?
A2: We have the best professional engineer and strict QA and QC system.
Q3: How’s the package?
A3: We can pack it according to your requirements.
Q4: How’s the delivery time?
A4: It depends on the quantity you need.
