Product Details:
|
| Core Components:: | Pressure Vessel | Structure: | Tube Heat Exchanger |
|---|---|---|---|
| Dimension(L*W*H):: | 35*15*35 | Key Selling Points:: | Accurate Temperature Control |
| Material:: | Titanium | Video Outgoing-inspection:: | Provided |
| Marketing Type:: | Ordinary Product | Warranty Of Core Components:: | 1 Year |
| High Light: | 1.6MPa Coil Tube Heat Exchanger,200 degree Coil Tube Heat Exchanger,0.4MPa Stainless Steel Condenser |
||

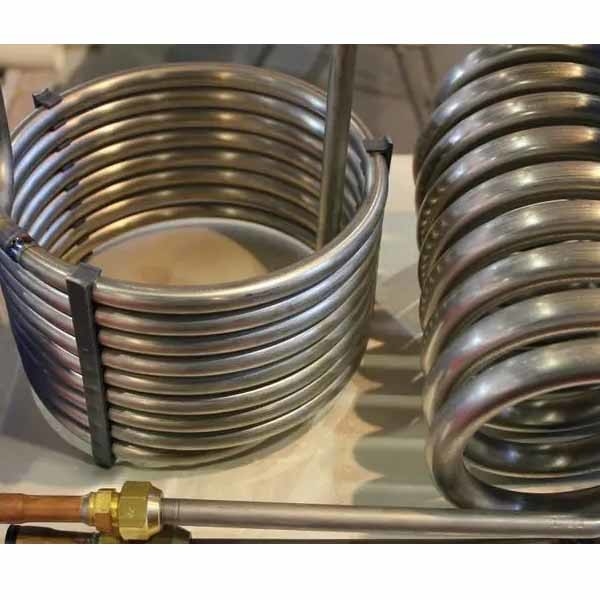

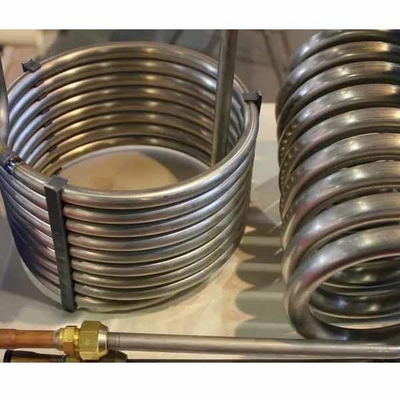

Manufacture Coil Heat Exchanger Tube Stainless Steel Condenser For Air Conditioner
Description
A coil heat exchanger is a device that transfers part of the heat of a hot fluid to a cold fluid, also known as a heat exchanger. Heat exchangers are general-purpose equipment in chemical, petroleum, power, food and many other industrial sectors, and play an important role in production. In chemical production, heat exchangers can be used as heaters, coolers, condensers, evaporators and reboilers, etc., and are more widely used.
Parameter
| Heat exchanging capacity | 4mmbtu/h or based |
| Design temperature(coil) | 200℃ |
| Design temperature(Shell) | 200℃ |
| Design pressure | 1.6MPa |
| Working pressure(shell side) | 0.5MPa |
| Working pressure(tube side) | 0.4MPa |
| OPER.TEMP.(IN/OUT)(shell side) | 25/32℃ |
| OPER.TEMP.(IN/OUT)(tube side) | 100.6/50℃ |
| Tube side material | Q345R |
| Shell side | Q345R |
| Weight | About 19,000kg |
Matters needing attention
The coil heat exchanger needs regular inspection during use. Use thermal shock automatic descaling at least once a month and drain water once a week to maintain water quality. The design pressure of shell side and tube side of the heat exchanger is generally 0.6-1.6mpa. The temperature of hot water outlet shall not be higher than 90 degrees Celsius. Tube resistance is less than 4mH2O. The resistance loss of the tubules is negligible. Coil heater heat transfer efficiency is high, the steam inlet pipe should be installed on the temperature control valve, control steam flow and hot water temperature. For safety, especially the hot water supply system needs temperature control.
